ELECTRICAL COMPONENTS
- 302 -

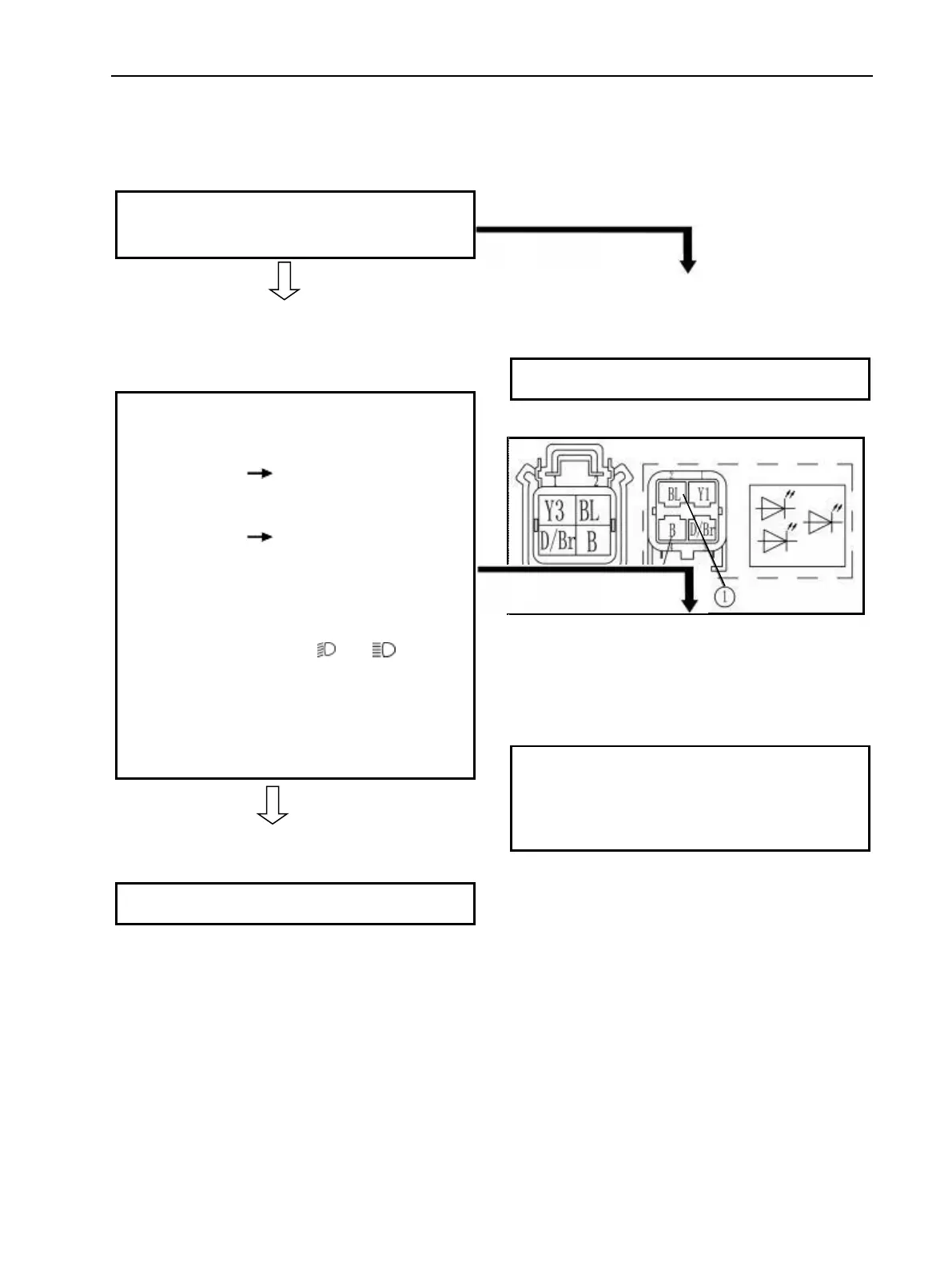

2. If the taillights fail to come on:
(1). Bulb and bulb socket
• Check the bulb and bulb socket for
continuity.
CONTINUITY
(2) . Voltage
• Connect the pocket tester (DC 20 V) to
the tail/brake light couplers.
Tester (+) lead Yellow1 lead terminal
①
Tester (–) lead Black lead terminal ②
• Turn the main switch to “ON”.
• Turn the light switch to“ ” or “ ”.
• Check the voltage (12 V) of the “Blue”
lead on the bulb socket connector.
MEETS
SPECIFICATION
This circuit is not faulty.
NO CONTINUITY
Replace the bulb and/or bulb socket.
OUT OF SPECIFICATION
The wiring circuit from the main switch to
the
bulb socket connector is faulty, repair it.
