--- 15 ---

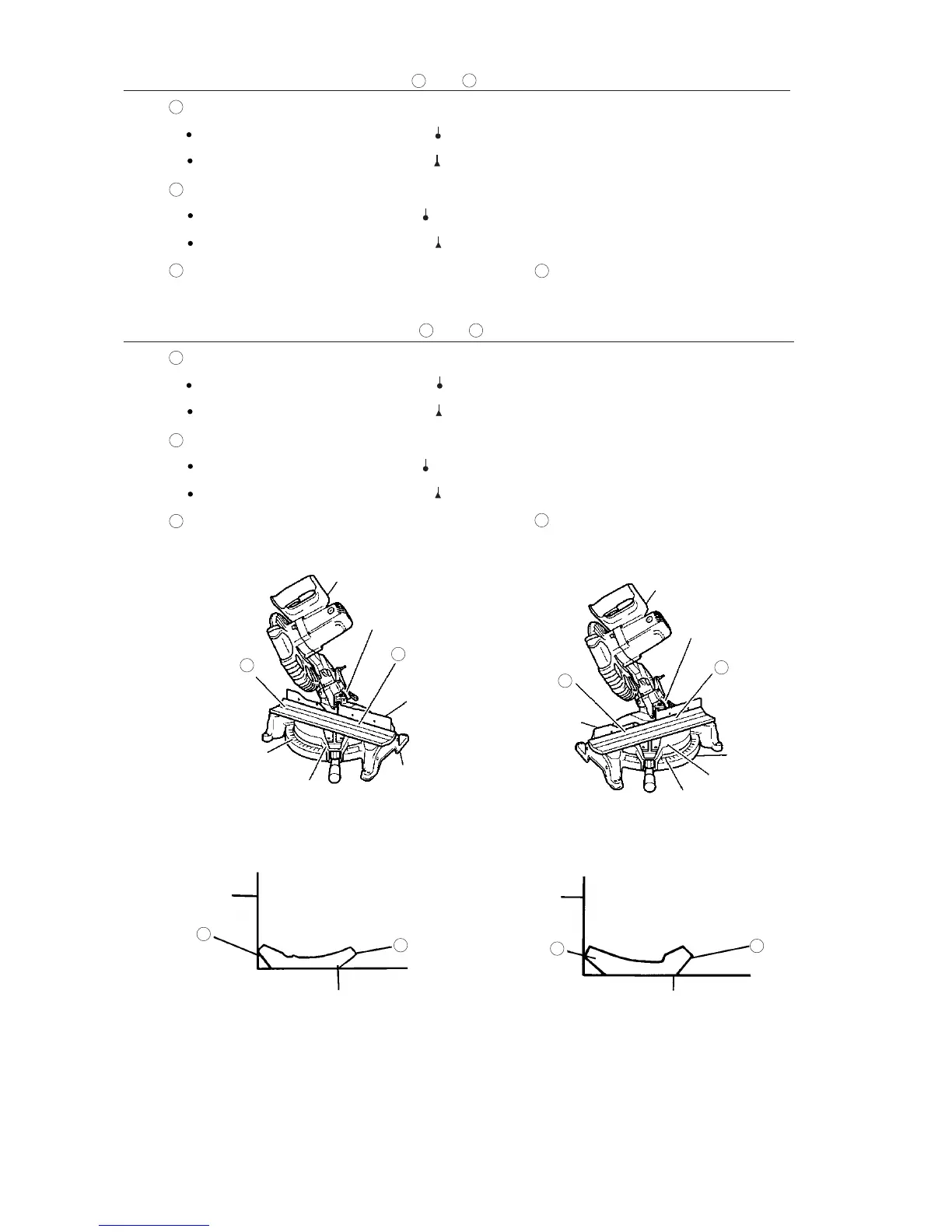

(1) Setting to cut crown molding at positions and in Fig. 17 (See Fig. 18, tilt the head to the left.):
Turn the turn table to the right and set the miter angle as follows:
For 45û type crown moldings: 35.3û ( mark)
For 38û type crown moldings: 31.6û ( mark)
Turn the head to the left and set the bevel angle as follows:
For 45û type crown moldings: 30û ( mark)
For 38û type crown moldings: 33.9û ( mark)
Position the crown molding so that the lower surface ( in Fig. 16) contacts the fence as indicated in
Fig. 20.
1
4
2
3 A
1
Head
Miter angle scale
Bevel angle scale
Fig. 18
(2) Setting to cut crown moldings at positions and in Fig. 17 (See Fig. 19, tilt the head to the left.):
Turn the turn table to the left and set the miter angle as follows:
For 45û type crown moldings: 35.3û ( mark)
For 38û type crown moldings: 31.6û ( mark)
Tilt the head to the left and set the bevel angle as follows:
For 45û type crown moldings: 30û ( mark)
For 38û type crown moldings: 33.9û ( mark)
Position the crown molding so that the lower surface ( in Fig. 16) contacts the fence as indicated in
Fig. 21.
2 3
1
2
3
B
Fig. 19
Bevel angle scale
Turn table
Fence
Miter angle scale
Fig. 20
Fig. 21
Fence
Table on base
Fence
Table on base
B
A
B
A
2
3
4
1
Base
Turn table
Base
Fence
Head
