Hitachi C1421R User Manual

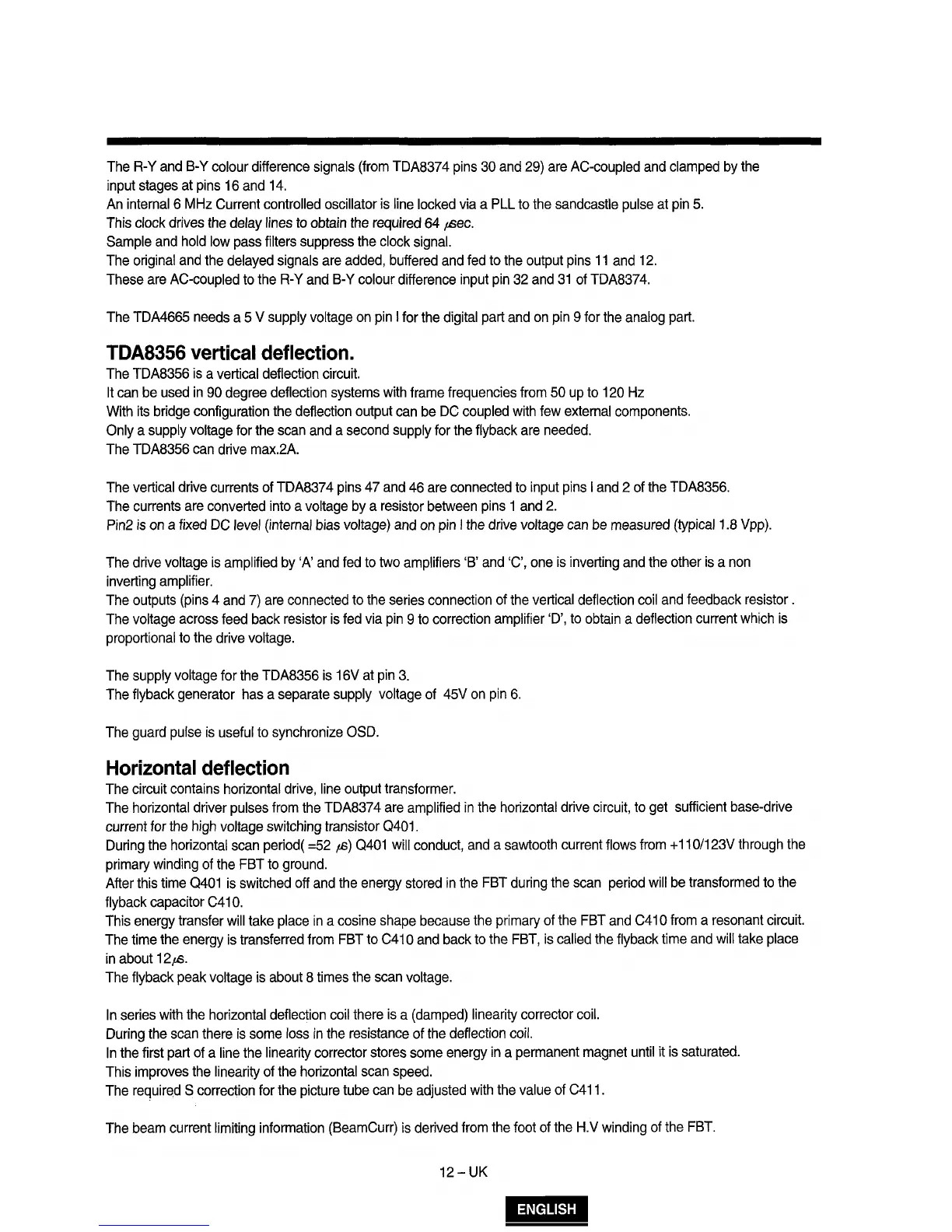

The R- Y and 8-Y colou r difference signals (from TDA837 4 pins 30 and 29} are AC-coupled and clamped by the
input stages at pins 16 and 14.
An internal 6 MHz Current controlled oscillator is line locked via a PLL to the sandcastle pulse at pin 5.
This clock drives the delay lines to obtain the required 64 ,.sec.
Sample and hold low pass filters suppress the clock signal.
The original and the delayed signals are added, buffered and fed to the output pins 11 and 12.
These are AC-coupled to the R-Y and B-Y colour difference input pin 32 and 31 of TDA8374.
The TDA4665 needs a 5 V supply voltage on pin I for the digital part and on pin 9 for the analog part.
TDA8356 vertical deflection.
The TDA8356 is a vertical deflection circuit.
lt can be used in 90 degree deflection systems with frame frequencies from 50 up to 120 Hz
With its bridge configuration the deflection output can be DC coupled with few externa! components.
Only a supply voltage for the scan and a second supply for the flyback are needed.
The TDA8356 can drive max.2A.
The vertical drive currents of TDA8374 pins 47 and 46 are connected to input pins I and 2 of the TDA8356.
The currents are converted into a voltage by a resistor between pins 1 and 2.
Pin2 is on a fixed DC levei (internal bias voltage) and on pin I the drive voltage can be measured (typical1.8 Vpp).
The drive voltage is amplified by 'A' and fed to two amplifiers 'B' and 'C', one is inverting and the other is a non
inverting amplifier.
The outputs (pins 4 and 7) are connected to the series connection of the vertical deflection coil and feedback resistor .
The voltage across feedback resistor is fed via pin 9 to correction amplifier 'D', to obtain a deflection current which is
proportional to the drive voltage.
The supply voltage for the TDA8356 is 16V at pin 3.
The flyback generator has a separate supply voltage of 45V on pin 6.
The guard pulse is useful to synchronize OSD.
Horizontal deflection
The circuit contains horizontal drive, line output transformar.
The horizontal driver pulses from the TDA8374 are amplified in the horizontal drive circuit, to get sufficient base-drive
current for the high voltage switching transistor 0401.
During the horizontal scan period( =52 f.S) 0401 will conduct, and a sawtooth current flows from + 11 0/123V through the
primary winding of the FBT to ground.
After this time 0401 is switched off and the energy stored in the FBT during the scan period will be transformed to the
flyback capacitar C41 O.
This energy transfer will take place in a cosine shape because the primary of the FBT and C41 O from a resonant circuit.
The time the energy is transferred from FBT to C41 O and back to the FBT, is called the flyback time and will take place
in about 12,.s.
The flyback peak voltage is about 8 times the scan voltage.
ln series with the horizontal deflection coil there is a (damped) linearity corrector coil.
During the scan there is some loss in the resistance of the deflection coil.
ln the first part of a line the linearity corrector stores some energy in a permanent magnet until it is saturated.
This improves the linearity of the horizontal scan speed.
The required S correction for the picture tube can be adjusted with the value of C411.
The beam current limiting information (BeamCurr) is derived from the foot of the H.V winding of the FBT.
