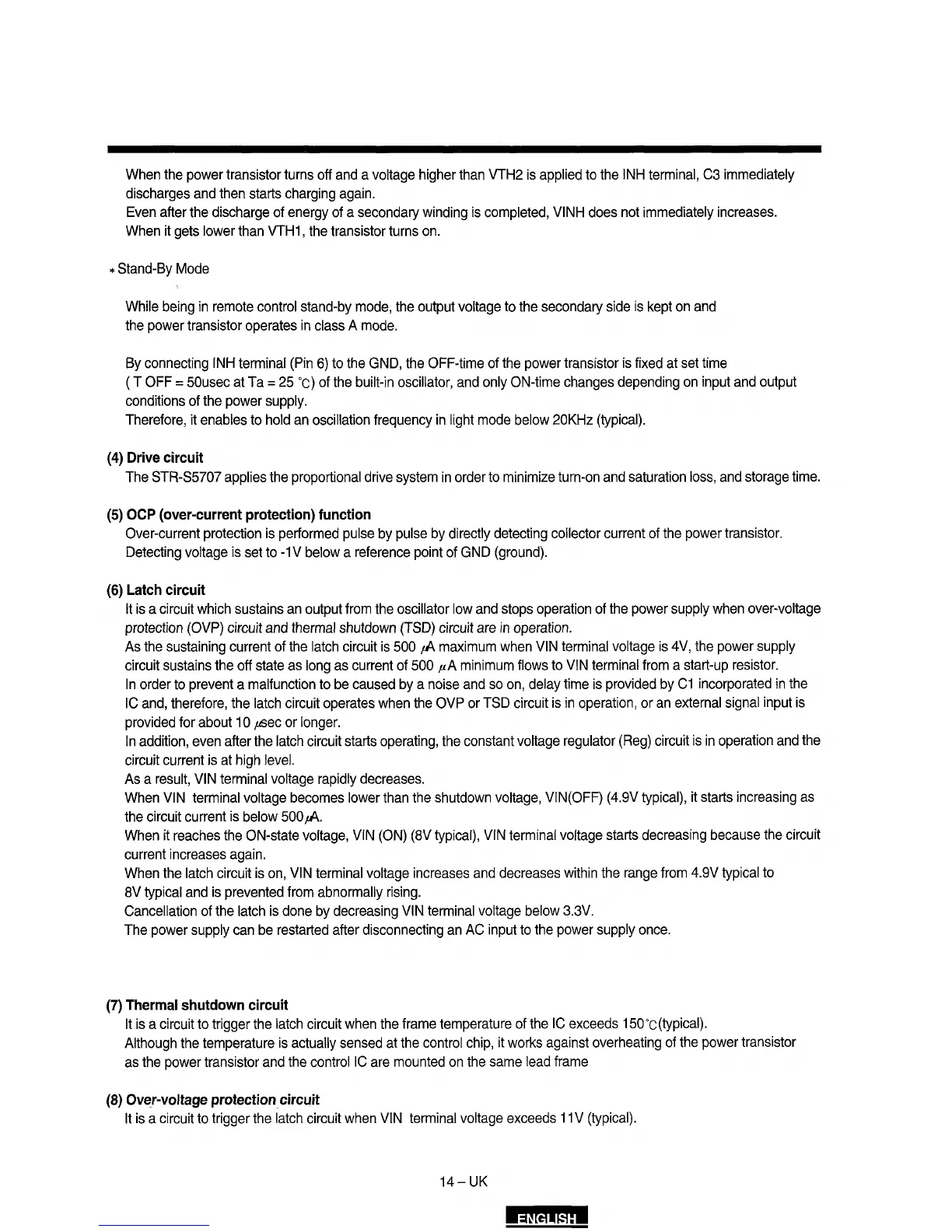

When the power transistor turns off anda voltage higher than VTH2 is applied to the INH terminal, C3 immediately
discharges and then starts charging again.
Even after the discharge of energy of a secondary winding is completed, VINH does not immediately increases.
When it gets lower than VTH1, the transistor turns on.
* Stand-By Mode
While being in remote control stand-by mode, the output voltage to the secondary side is kept on and
the power transistor operates in class A mode.
By connecting INH terminal (Pin 6) to the GND, the OFF-time of the power transistor is fixed at set time
( T OFF = 50usec at Ta= 25 OC) of the built-in oscillator, and only ON-time changes depending on input and output
conditions of the power supply.
Therefore, it enables to hold an oscillation frequency in light mode below 20KHz (typical).
(4) Drive circuit
The STR-S5707 applies the proportional drive system in order to minimize turn-on and saturation loss, and storage time.
(5) OCP (over-current protection) function
Over-current protection is pertormed pulse by pulse by directly detecting collector current of the power transistor.
Detecting voltage is set to -1 V below a reference point of GND (ground).
(6) Latch circuit
lt is a circuit which sustains an output from the oscillator low and stops operation of the power supply when over-voltage
protection (OVP) circuit and thermal shutdown (TSD) circuit are in operation.
As the sustaining current of the latch circuit is 500 JA maximum when VIN terminal voltage is 4V, the power supply
circuit sustains the off state as longas current of 500 JlA minimum flows to VIN terminal from a start-up resistor.
ln order to prevent a malfunction to be caused by a noise and so on, delay time is provided by C1 incorporated in the
IC and, therefore, the latch circuit operates when the OVP or TSD circuit is in operation, o r an externa! signal input is
provided for about 1 O J1Sec or longe r.
ln addition, even after the latch circuit starts operating, the constant voltage regulator (Reg) circuit is in operation and the
circuit current is at high levei.
As a result, VIN terminal voltage rapidly decreases.
When VIN terminal voltage becomes lower than the shutdown voltage, VIN(OFF) (4.9V typical), it starts increasing as
the circuit current is below 500 JA.
When it reaches the ON-state voltage, V lN (ON) (8V typical), V lN terminal voltage starts decreasing because the circuit
current increases again.
When the latch circuit is on, VIN terminal voltage increases and decreases within the range from 4.9V typical to
8V typical and is prevented from abnormally rising.
Cancellation of the latch is done by decreasing VIN terminal voltage below 3.3V.
The power supply can be restarted after disconnecting an AC input to the power supply once.
(7) Thermal shutdown circuit
lt is a circuit to trigger the latch circuit when the trame temperatura of the IC exceeds 150°C(typical).
Although the temperatura is actually sensed at the control chip, it works against overheating of the power transistor
as the power transistor and the control IC are mounted on the sarne lead trame
(8) Over-voltage protection circuit
lt is a circuit to trigger the latch circuit when VIN terminal voltage exceeds 11 V (typical).
14-UK
