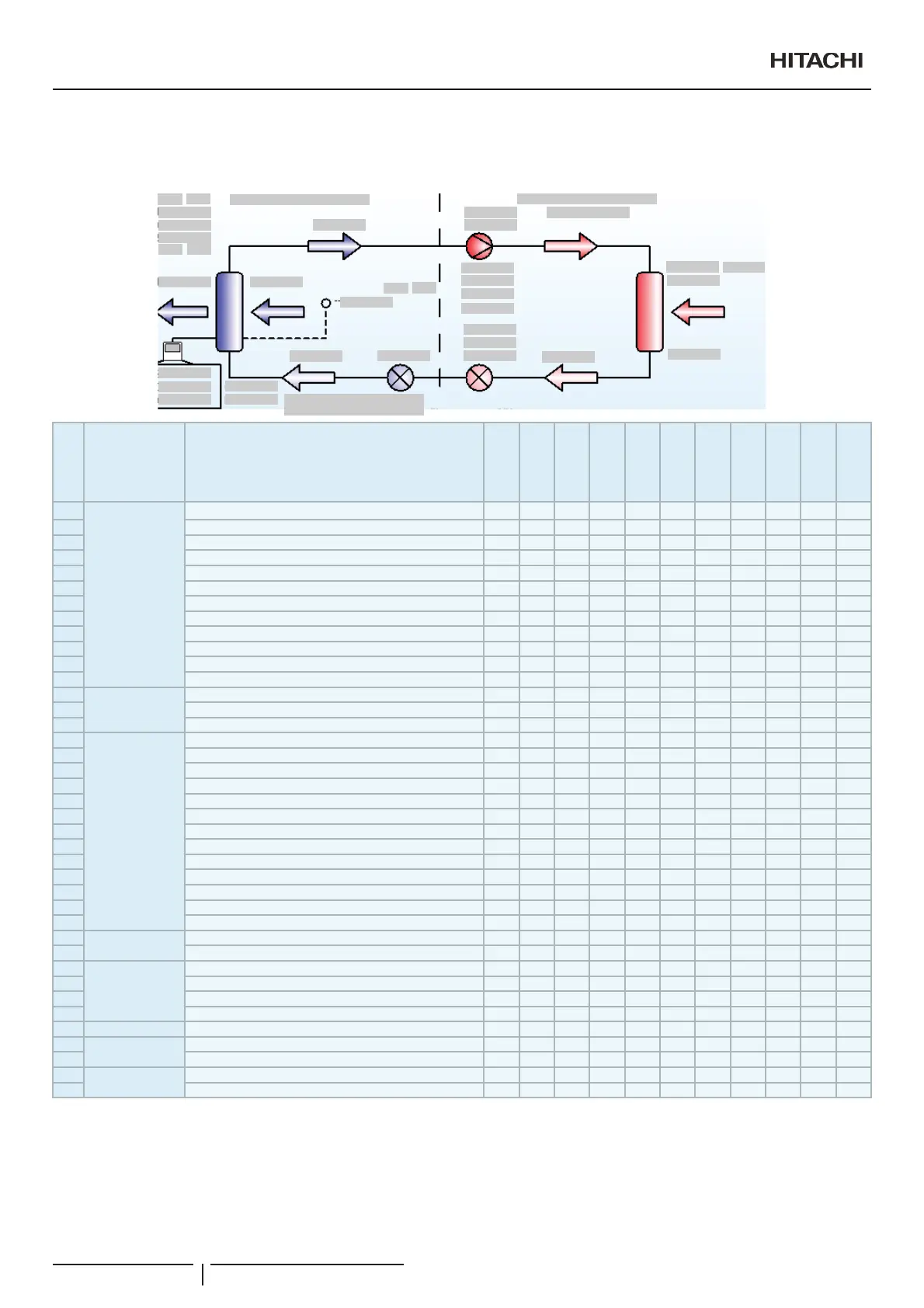

([SODQDWLRQRIWKHÀHOGV
Although all these parameters are available in the 3-tube systems (SET-FREE FX), some are not in other systems. These are
indicated in the table.
1
2
3
4
5 6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
36
37
28
29
30
31
32
33
34
35
38
39
No. Group Description
Units
UTOPIA G
UTOPIA N
DC-Inverter
Mini SET-
FREE
SET-FREE
FS
SET-FREE
FX
DX-Kit
RAS units
KPI Active
KPI Passive
1
Indoor unit
Model of the indoor unit and its power — O O O O O O O O O O
2 Thermo ON/OFF — O O O O O O O O O —
3 OFF/ON — O O O O O O O O O O
4 Filter time h O O O O O O O — O O
5 Air outlet temperature ºC O O O O O O O — O —
6 Air inlet temperature ºC O O O O O O O O O —
7 Optional remote thermistor (RCS / THM4) (4) ºC O O O O O O O O O —
8 Gas piping temperature ºC — O O O O O O — O —
9 Liquid piping temperature ºC O O O O O O O — O —
10 Expansion valve opening % — O O O O O O — O —
11 Real operation mode ºC O O O O O O O O O
12 Real vent speed — O O O O O O O O O O
13
Remote control
Setting temperature — O O O O O O O O O O
14 Selected operation mode — O O O O O O O O O O
15 Selected fan speed — O O O O O O O O O O
16
Outdoor unit
Model of outdoor unit and its power — O O O O O O O — O —
17 Discharge pressure MPa — — — O O O O — O —
18 Suction pressure MPa — — — O O O O — O —
19 Discharge gas overheating (TdSH) ºC — — — O O O O — O —
20 Discharge gas temperature ºC O O O O O O O — O —
21 Compressor frequency Hz — — O O O O O — O —
22 Total consumption of compressors A O O O O O O O — O —
23 Number of compressors operating — O O — O O O O — O —
24 09H[SDQVLRQYDOYHRSHQLQJ % — — O O O O O — O —
25 09H[SDQVLRQYDOYHRSHQLQJ % — — — — (1) O — — — —
26 09H[SDQVLRQYDOYHRSHQLQJ09% % — — — — (2) O — — — —
27 Ambient temperature ºC O O O O O O O — O —
28 Evaporating temperature (Heating) ºC O O O O O O O — O —
29
Alarms
Number and description of alarm — O O O O O O O O O O
30 Last cause of compressor stop (3) — — O O O O O O — O O
31
Others
THM1 ºC — — — — — — O — — —
32 THM2 ºC — — — — — — O — — —
33 PCB1 THM1 (RA) ºC — — — — — — — — O O
34 PCB1 THM2 (OA) ºC — — — — — — — — O O
35 Power Meter Power Meter values — O O O O O O — — — —
36
OU Control
Power control activated — (*) (*) (*) (*) (*) (*) (*) (*) (*) (*)
37 Night mode activated — (*) (*) (*) (*) (*) (*) (*) (*) (*) (*)
38
CN3 Inputs
Input 1 — (*) (*) (*) (*) (*) (*) (*) (*) (*) (*)
39 Input 2 — (*) (*) (*) (*) (*) (*) (*) (*) (*) (*)
O = Available — = Not available
 N O T E
1 : Not for FS units of upWR+3
2 1RWIRU)6XQLWVRIXSWR+3
3 : The value shown does not disappear until the cause of the compressor stop does not change.
4 : THM4 is the remote thermistor. More information on the indoor unit documentation.
5 : (*)Check the indoor and outdoor unit’s technical documentation for availability
2SHUDWLRQDQGFRQ¿JXUDWLRQRISDFNDJHGXQLWV
