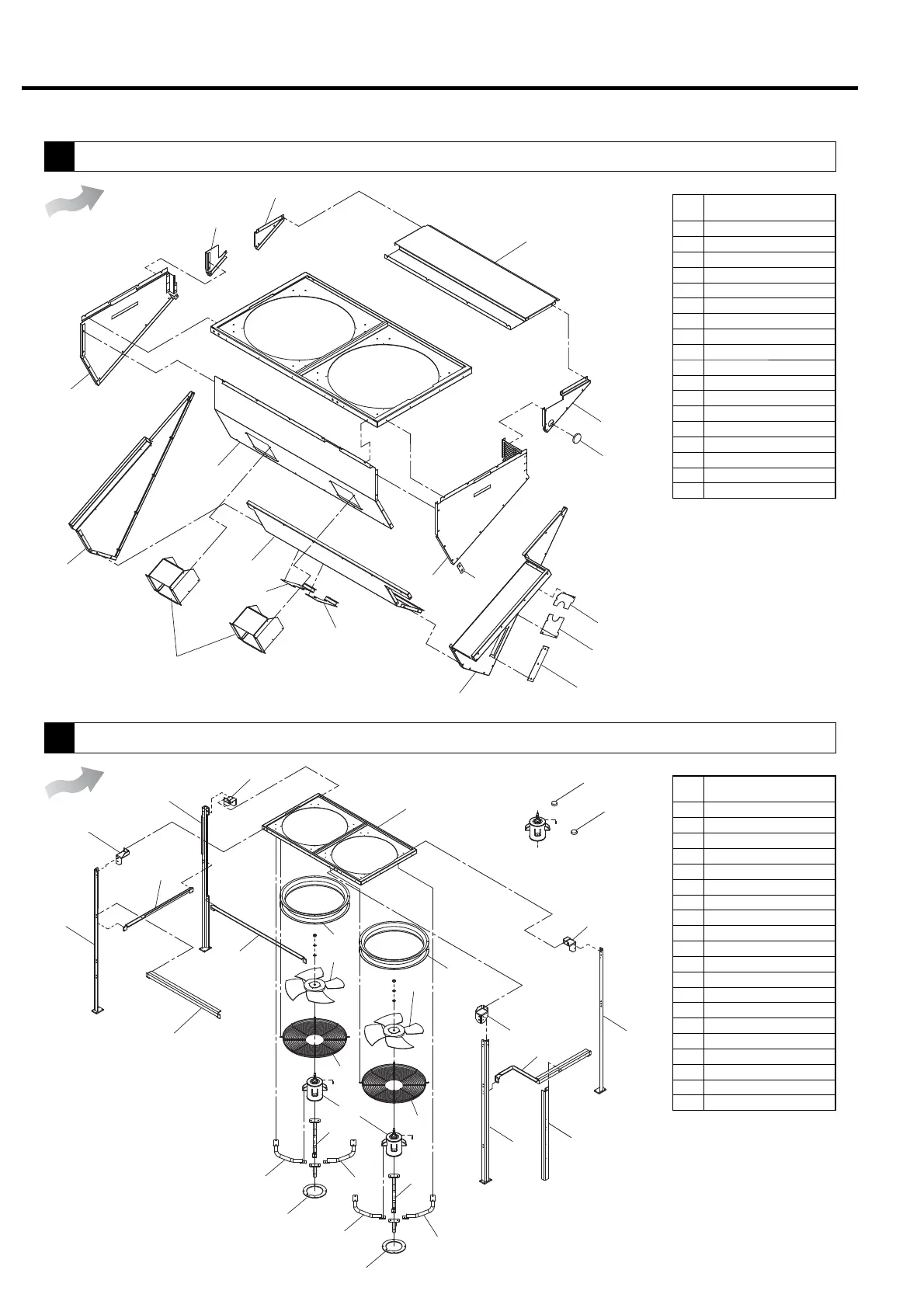

11. PARTS LIST
584
695
F62
685
588
585
694
692
699
672
587
698
697
691
693
E51
696
589
Ref.
No.
Description
584 Partition (1)
585 Partition (2)
587 Partition (A)
588 Partition (B)
589 Fix Board
672 Fan Duct, air intake
685 Duct Panel
691 Duct Panel (1)
692 Duct Panel (2)
693 Duct Panel (3)
694 Duct Panel (4)
695 Duct Panel (5)
696 Duct Panel (6)
697 Duct Panel (7)
698 Duct Panel (8)
699 Duct Panel (9)
E51 Maintenance Cover
F62 Rubber Bush
661
659
667
666
663
686
659
686
668
686
662
658
681
664
671
678
679
680
660
658
680
686
686
686
679
678
688
665
C84
C86
688
Ref.
No.
Description
658 Duct Support (1)
659 Duct Support (2)
660 Duct Frame
661 Duct Frame (1)
662 Duct Frame (2)
663 Duct Frame (3)
664 Duct Frame (4)
665 Duct Frame (5)
666 Duct Frame (6)
667 Duct Frame (7)
668 Duct Frame (8)
671 Duct, air exhaust
678 Bell Mouth
679 lmpeller
680 Protective Cover
681 Fan Motor
686 Support, cooling fan
688 Fan Motor Flange
C84 Fan Motor Bearing (DS)
C86 Fan Motor Bearing (OS)
Air-Cooled
Air-Cooled
5
Coolers & Ventilating Fan (1)
5
Coolers & Ventilating Fan (2)
