Hitachi DSP-110A6N User Manual

114

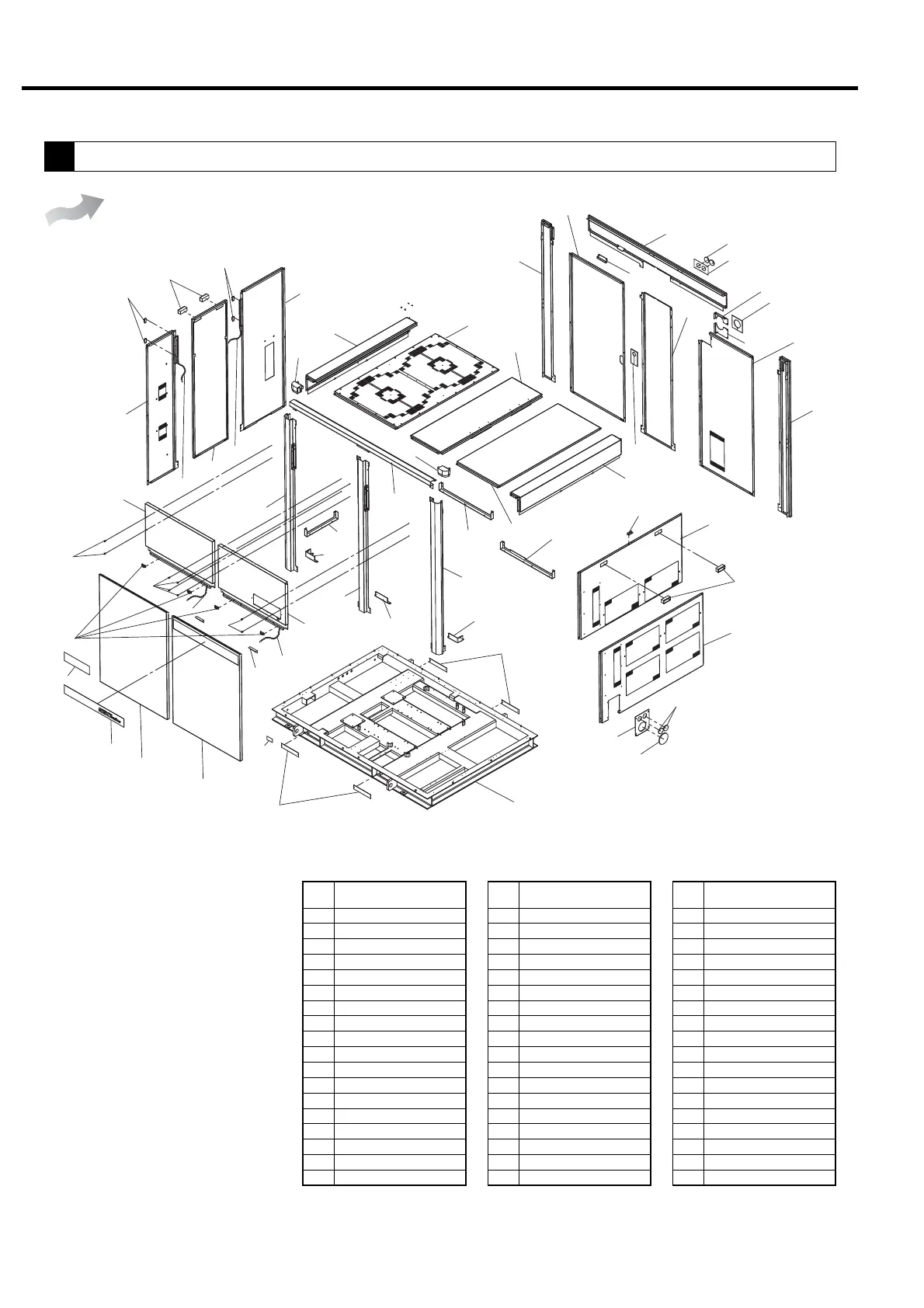

11. PARTS LIST
938
952
912
H69
909
945
H72
969
907
926
986
984
911
982
981
H59
951
970
915
983
944
905
929
A71
908
953
942
924
D25
98
906
90
910
939
938
A71
D25
D25
D25
946
925
947
913
914
941
E88
E88
H70
H70
H70
D14
H60
H71
H61
967
943
A72
993
H98
H9
940
990
Air-Cooled
Ref.
No.
Description
904 Front Door
905 Front-Lower Panel
906 Front-Upper Panel
907 Left Panel (2)
908 Right-Upper Panel
909 Right-Lower Panel
910 Left Panel (1)
911 Rear Panel (2)
912 Left Door
913 Top Panel (1)
914 Top Panel (2)
915 Cover, air exhaust
924 Cover, power cord
925 Cover (1), piping
926 Cover (2), piping
929
Rubber Bush, control cable
938 Handle
939 Rubber Bush
Ref.
No.
Description
940 Rubber Bush
941 Top Frame
942 Common Base
943 Left-Corner Frame
944 Front Frame
945 Right-Corner Frame
946 Rear-Upper Frame
947 Rear-Center Frame
951 Left-Upper Frame
952 Right-Upper Frame
953 Instrument Panel
967 Rear Panel (1)
969 Right Frame
970 Left Frame
981 Support, Cover (1)
982 Support, Cover (2)
983 Support, Cover (3)
984 Support, Cover (4)
Ref.
No.
Description
985 Support, Cover (5)
986 Support, Cover (6)
990 Cover
993 Support
A71 Fork Slot Cover
A72 Weste Oil Cover
D14 Magnet
D25 Chain
E88 Magnet
H59 Left-Corner Cap
H60 Right-Corner Cap
H61 Seal Plate
H69 Support
H70 M6 Exterior Screw
H71 Magnet Rubber (1)
H72 Magnet Rubber (2)
H97 Name plate for model
H98 Name plate for NEXT
15
Enclosure (1)
