5. INSTALLING AND PIPING THE DSP
Common Base
Fork Slot Cover
Bolt (M6×15)
Pad
Use a pad to protect
the enclosure.
Use the adhesive tapes
to prevent the front door
from detached during
conveyance.
Use a pad to
protect the
enclosure panel.
Use the adhesive tapes
to prevent the front door
from detached during
conveyance.
Keep the distance of
59 inch (1500 mm)
or more.
Use the strong wires.
Adjust the wire length to
keep the balance when
hoisting it.
Lift the unit balanced.
Use the attached
tie frame.
5.1 Unpacking the Air Compressor
■ After unpacking the crate, verify that the air compressor is what you have ordered, by referring to Section 15.
“STANDARD SPECIFICATIONS and also by checking the model nameplate.
■ Verify that product is not damaged or deformed during transportation.
Model Nameplate
Main Standard Accessories
Output （kW）
Model
Frequency （Hz）
Foundation bracket, Foundation bolt/nut (M20) 4 pieces
Bolt (M20) for Foundation bracket 4 pieces
Fork slot cover 4 pieces
Bolt (M6) for Fork slot cover 8 pieces
Motorized isolation valve 1 piece
Motorized water isolation valve (※) 1 piece
Handle 1 piece

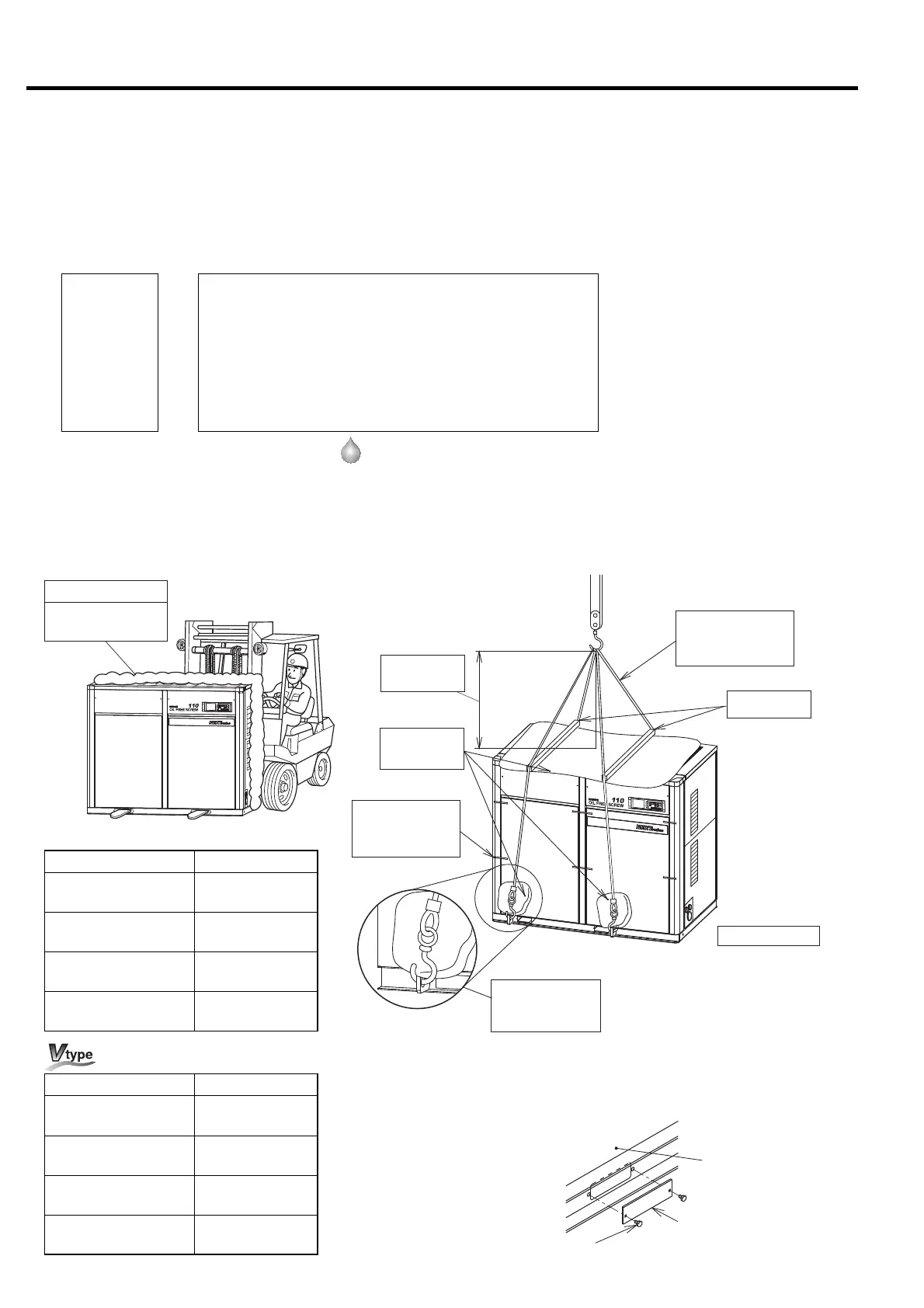

5.2 Conveying the Air Compressor
■ With a Forklift ■ With a Shop Crane
■ After installing the air compressor, plug the fork slots
with the fork slot covers.
※ Provided only with
Water-Cooled
.
Model Total Mass
DSP-90A6N
5,250 lbs
(2,380kg)
DSP-110A6N
5,600 lbs
(2,540kg)
DSP-90W6N
5,030 lbs
(2,280kg)
DSP-110W6N
5,380 lbs
(2,440kg)
Model Total Mass
DSP-90VA6N
5,470 lbs
(2,480kg)
DSP-110VA6N
5,580 lbs
(2,530kg)
DSP-90VW6N
5,250 lbs
(2,380kg)
DSP-110VW6N
5,360 lbs
(2,430kg)
To Next Page
