Hitachi DSP-110A6N User Manual

48

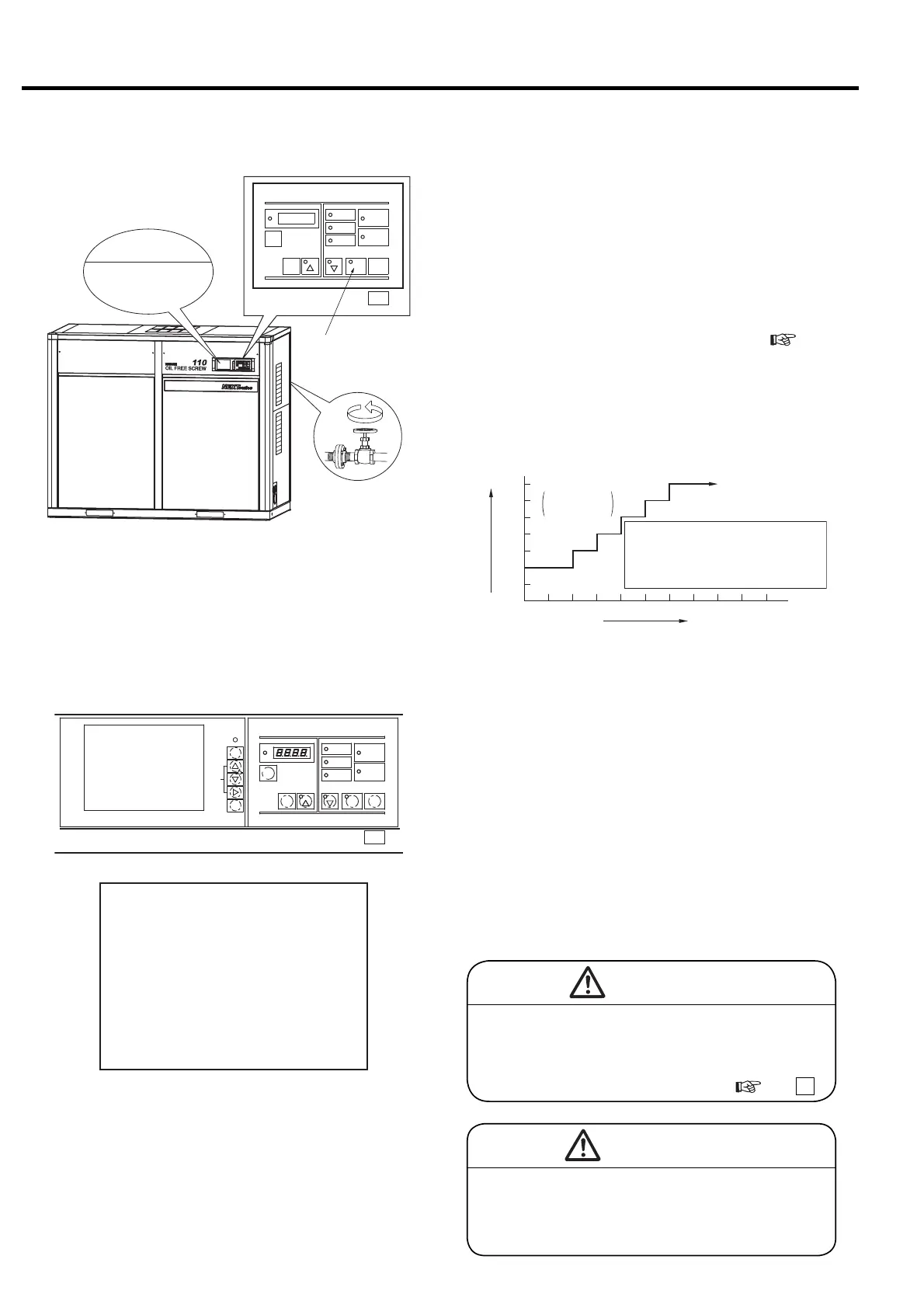

6. STARTUP OPERATION [Startup Operation of the Air Compressor]
During inspection of the operation of the air
relief valve, use the appropriate facial protec-
tion. High pressure air containing dust particles
can cause severe injury.
② Verify that the air compressor has proper rotation.
If rotation is not correct (phase reversal), change 2 of
the 3 wires of the power cable.
③ Verify that the oil pressure rises 18psi (0.12 MPa) or
greater within ten (10) seconds after starting the air
compressor. If pressure has failed to rise, press the
STOP button and clean the oil strainer. And/or
regulate the oil pressure by oil relief valve. (
3.7)
④ In the case of the fixed speed type, switch to full load
operation within 20 seconds, and for the V type,
switch in approx. 10 seconds.
⑤ Raise the pressure step by step as illustrated below.
6.1.2 Starting
②
③④
①
ＲＵＮＮＩＮＧ ＣＯＮＴＲＯＬ ＲＵＮＮＩＮＧ ＭＯＤＥ
ＡＬＡＲＭ
ＬＯＡＤ
ＳＨＵＴＤＯＷＮ
ＲＥＭＯＴＥ
ＰＯＷＥＲ
ＡＵＴＯ ＳＴＡＲＴ
ＳＴＯＰＳＴＡＲＴ
１
２
ＲＥＭＯＴＥ
ＳＴＲ
ＦＵＮＣ
ＲＥＳＥＴ
ＳＥＬＥＣＴ／ＷＩＤＥ
UNLOAD STOP
[Rear View]
DIS.PRESS： １００ｐｓｉ
INTSTG.P： ２２ｐｓｉ
OILPRESS：２２ｐｓｉ
CLTPRESS： ＊＊ｐｓｉ
Discharge pressure (psi)
100
90
75
60
45
30
15
0
Pressure Raising Pattern
for the rated
discharge pressure
100 psi (0.69 MPa)
Time
0.5hr 1hr 1.5hrs 2hrs
Method of Raising Pattern:
During startup operation, raise the discharge pressure by
following these steps. 1.) After starting the air compressor,
operate at 29psi (0.20MPa) for 30 minutes with the discharge
stop valve completely open. 2.) Raise the pressure 14 psi
(0.1MPa) (close the discharge stop valve) every 15 minutes
until the pressure reaches the rated pressure. During the
startup operation, perform this method without any failures.
② Check the LCD for operating pressures and
temperatures. Verify that: Discharge air pressure
(DIS. PRESS), interstage air pressure (INTSTG. P),
oil pressure (OIL PRES), 1st stage discharge air
temperature (DIS. TEMP 1), 2nd stage discharge air
temperature (DIS. TEMP 2), 2nd stage suction
temperature (2ND SUC. T.) and oil temperature (OIL
TEMP) are within the normal range, as shown in the
Proper Pressure/ Temperature Indications on LCD
table below.
③
Verify that the condensate is discharged intermediately
from the intercooler/aftercooler drain port.
6.1.3 During Operating
㻞㻜㻝㻞䠋㻜㻥䠋㻜㻝 㻝㻥䠖㻜㻞
㻼㻾㻱㻿㻿㼁㻾㻱
㻵㻺㼀㻿㼀㻳䠊㻼䠖 㻌㻌 㻞㻜㼜㼟㼕
㻻㻵㻸㻌㻼㻾㻱㻿䠖 㻌㻌 㻝㻜㼜㼟 㼕
㻯㻸㼀䠊㻼㻾㻱㻿䠖 㻖䠊㻖 㻖 㼜 㼟 㼕
㼀㻱㻹㻼㻱㻾㻭㼀㼁㻾㻱
㻰㻵㻿䠊㼀㻱㻹㻼㻝䠖 㻝㻢㻜䉣
㻰㻵㻿䠊㼀㻱㻹㻼㻞䠖 㻝㻣㻜䉣
㻻㻵㻸㻌㼀㻱㻹㻼䠖 㻡㻤䉣
㻯㻸㼀䠊㼀㻱㻹㻼䠖 㻖㻖㻖䉣
㻞㻺㻰㻌㻿㼁㻯㼀䠊㼀䠊䠖 㻠㻞䉣
㻹㻭 㻵 㻺㼀㻱㻺㻭㻺㻯㻱
㻴㻾䠊㼀㻻 㻌 㻹㻭 㻵 㻺㼀 䠖 㻜 㻜 㻜 㻜䡄
㻺㻱㼄㼀㻌 㻹㻭 㻵 㻺㼀䠖 㻖 㻖 㻖 㻖
UP/
DOWN
＋／−
AUTO
MONITOR
MENU
SET
SELECT/WIDE
2
RUNNINGCONTROL
STARTREMOTE
1
FUNC
［×10h］
ALARM
STR
REMOTE
RUNNINGMODE
AUTOSTART
POWER
LOAD
RESET
SHUTDOWN
STOP
MONITOR
UNLOAD STOP
WARNING
Ensure that the main motor is properly greased
during the start up commissioning. If the air
compressor has not been operated for (3)
months, grease before restarting. (
9.4
14
)
CAUTION
① Grease the main motor bearing at once. Refer to the
9 Maintenance 13 for the detail.
① Fully open the discharge stop valve, and press the
START button.
