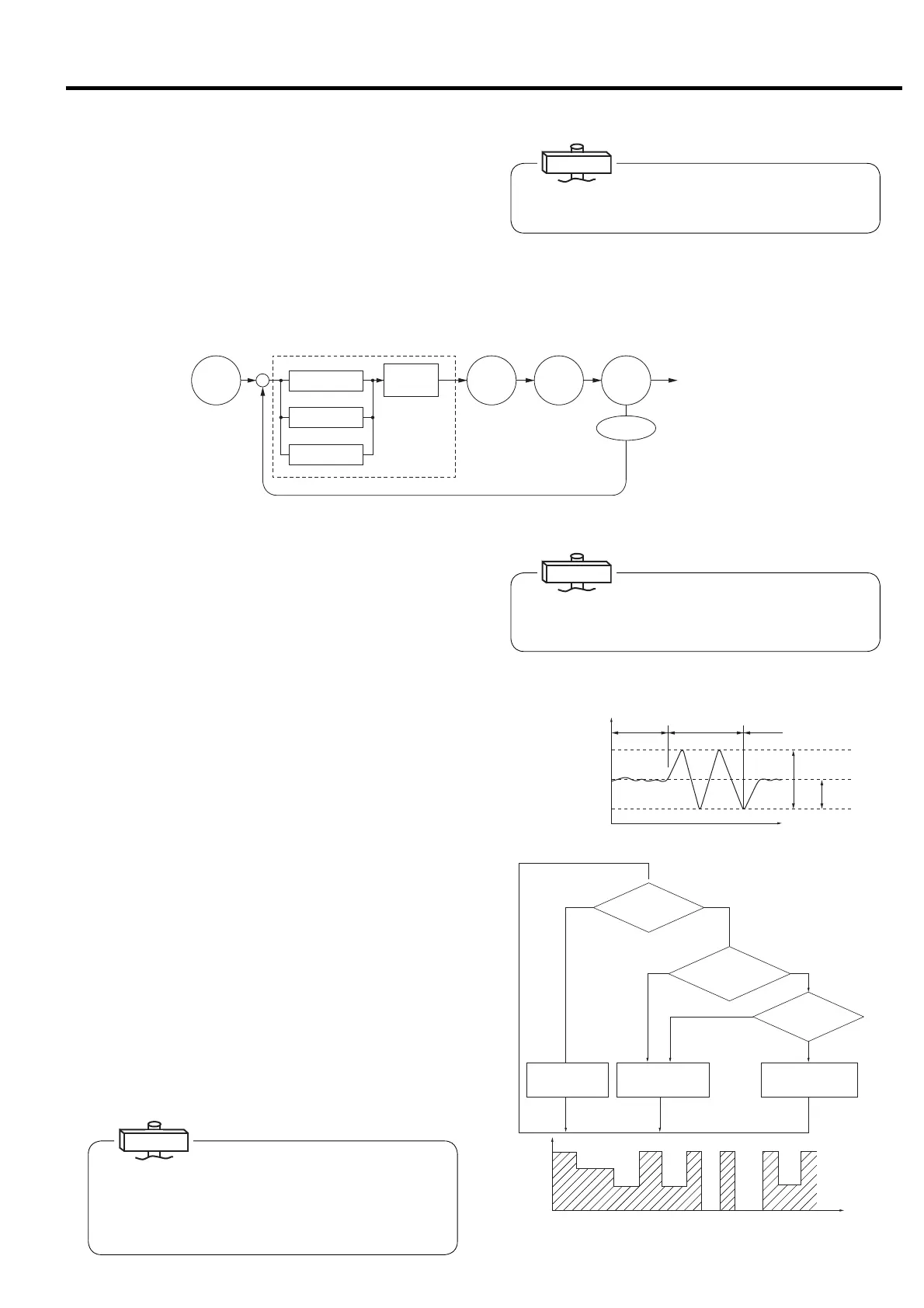

8. STANDARD COMPONENTS AND SUBSYSTEMS [Capacity Control System]
71
① CPCS Motor Speed Control
Based on the pressure signals detected by the pressure
sensor, the built in circuit board’s CPU performs PID
operations or calculates the motor speed that meets the
compressed air consumption rate, and then inputs the
calculated results to the inverter. The inverter outputs
the instructions of the corresponding frequency to the
motor. The discharge pressure is controlled within a
targeted range due to the increasing and decreasing
speeds of the motor.
Motor
Inverter
DSP
CPCS Motor Speed Control by Inverter and CPU
Constant Pressure
of the Discharge Air
Pressure Sensor
Compressed
Air
P: proportional
I: integral
D: differential
Pressure
PID stands for Proportional, Integral, and Differential.
CPCS stands for Constant Pressure Control System.
② Two-Step Purge Control
Two-Step Purge Control is activated if the following
conditions occur at the same time:
・The operating frequency drops to 35 Hz (equivalent
to 45% of the air consumption).
・The pressure detected by the pressure sensor rises
to an upper (purge-start) pressure point.
The blowoff solenoid valve (1) operates to start purging
the compressed air (contained between the airend and
the check valve) to atmosphere. The system decreases
the operating frequency to its lowest operating
frequency, 27 Hz, thus saving power. When the
pressure detected by the pressure sensor drops to a
cut-in (purge-stop) pressure, the system increases the
frequency to 35 Hz and the blowoff solenoid valve (1)
operates to stop the purging, returning the system
control back to CPCS Motor Speed Control.
③ Motor Stop/Restart Control
Motor Stop/Restart Control is activated under one of the
following conditions:
・Air consumption decreases to 4 %
・Purge operating continues for 3 minutes.
The system then automatically stops the motor. For
protection, the motor can only be stopped once every 10
operating minutes. When the pressure detected by the
pressure sensor drops to a cut-out (purge-stop) pressure,
the system automatically restarts the motor, returning
the system control to CPCS Motor Speed Control.
The differential range between the upper pressure point
and the lower pressure point must be 7 psi (0.05 MPa) or
more.
①
②
①
Pressure
Minimum
7psi
Minimum
1psi
Time
Upper Pressure
Standard Pressure
Lower Pressure
① ②
③
①
② ②
③ ③
②
100
0
Q＞45%
or
Hz＞35
Operation Frequency Hz
（Q≦45%）
Q≦5%
or
T≧3 minutes
Air Consumption Q
or
Purging Time T
Number of
Motor Stopping N
(for 10 minutes
)
Q＞5%
or
T＜3 minutes
CPCS Motor
Speed Control
Two-Step Purge
Start/Stop Control
Motor Stop/Restart
Control
N≦1
Air Consumption
Q (%)
Time
N＞1
Q
≦
45%
or
Hz≦35
(1) Once the motor has stopped, it cannot restart for 15
seconds.
(2) The plant’s system pressure may drop drastically before the
motor will restart, 15 seconds later. To avoid such problems,
install an air receiver tank of 620 USgal (2.26 m
3
) or larger.
IMPORTANT
IMPORTANT
IMPORTANT
