ELECTRICAL WIRING
PMML0293A rev.2 - 08/2016
14

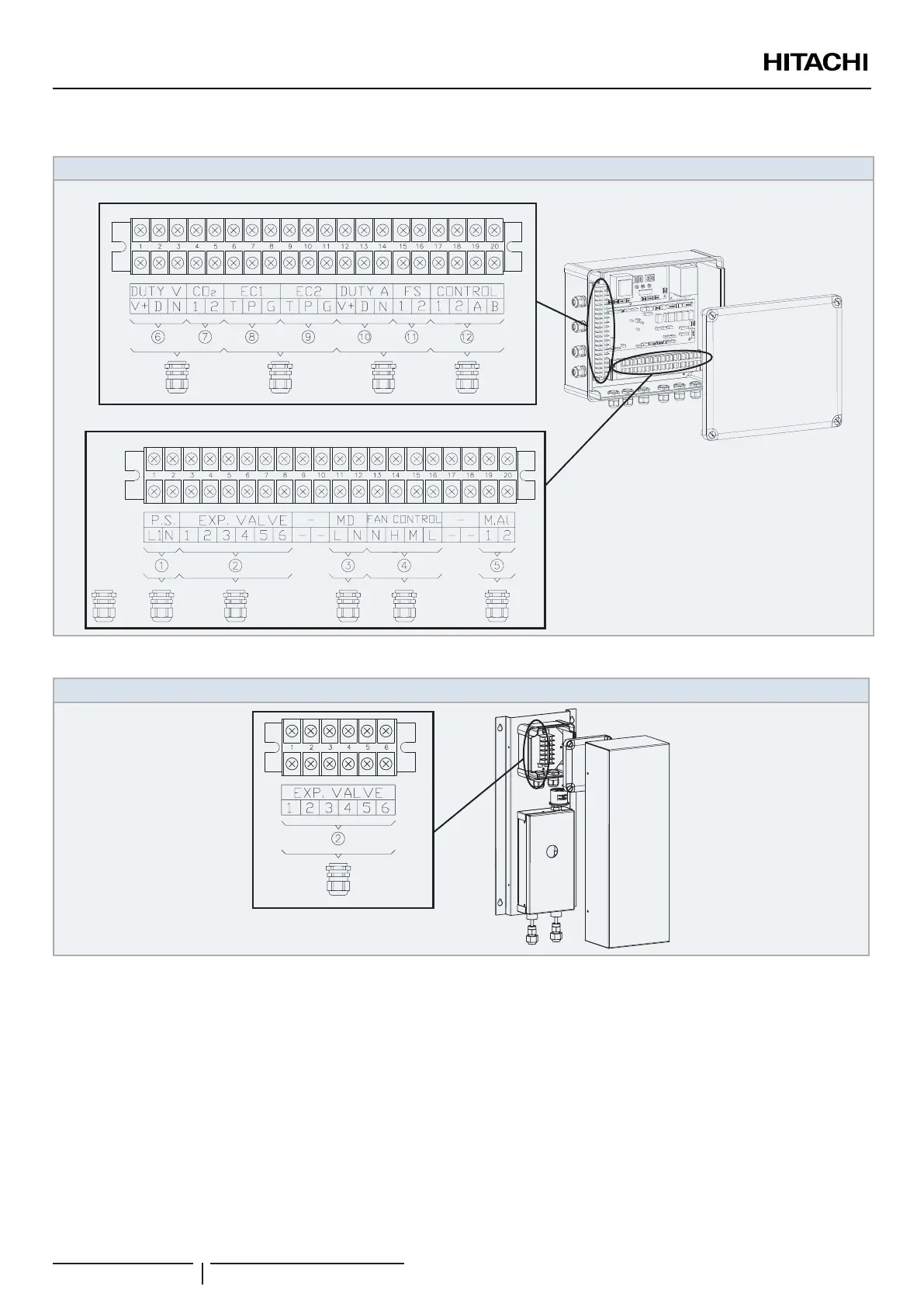

8.2.1 Control box terminal board
DX-Interface EXV-(2.0-10.0)E2: Control box
Terminal board 1
Terminal board 2
(*)
? NOTE
(*): Packing gland for thermistor
installation
8.2.2 Expansion valve box terminal board
DX-Interface EXV-(2.0-10.0)E2: Expansion valve box
