Hitachi FDV 16VB Handling Instructions

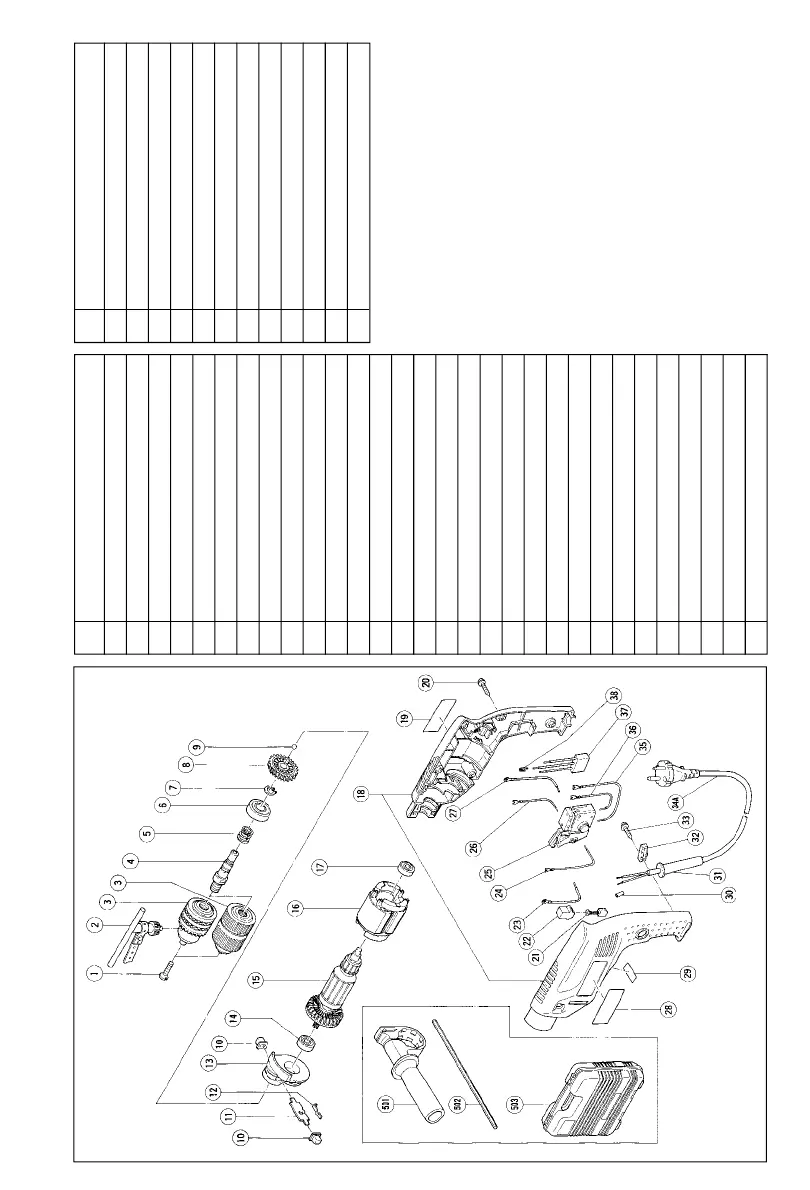

The exploded assembly drawing should be used only for authorized service center.
FDV16VB
1 Flat Hd. Screw (A) (Left Hand) M6 × 25
2 Chuck Wrench For 13VLB-D, 13VLR-D
3 Drill Chuck 13VLRB-D
3
Drill Chuck 13VLRC-N (W/O Chuck Wrench)
4 Spindle
5 Spring
6 Ball Bearing (6201VVCMPS2S)
7 Retaining Ring For D12 Shaft
8 Gear
9 Steel Ball D4.76
10 Change Knob
11 Change Plate
12 Spring (A)
13 Holder
14 Ball Bearing (608VVMC2EPS2L)
15 Armature
16 Stator
17 Ball Bearing (626VVMC2ERPS2S)
18 Housing (A) • (B) Set
19 Nameplate
20 Tapping SCrew (W/Flange) D4 × 20
21 Carbon Brush
22 Brush Holder
23 Choke Coil
24 Internal Wire (D)
25 Switch (M)
26 Internal Wire (C)
27 Choke Coil
28 HITACHI Label
29 Label
Item
No.
Part Name
30 Tube (D)
31 Cord Armor
32 Cord Clip
33 Tapping Screw (W/Flange) D4 × 16
34A Cord
35 Internal Wire (B)
36 Internal Wire (A)
37 Noise Suppressor
38 Earth Terminal
501 Side Handle
502 Depth Gauge
503 Case
Item
No.
Part Name
Parts are subject to possible modification
without notice due to improvements.
The drawing and the list are parts structural
drawing and parts list of model FDV16VB.
For other models refer to the drawing and
the list.
