Hitachi LS Series User Manual

- 17 -
(
3

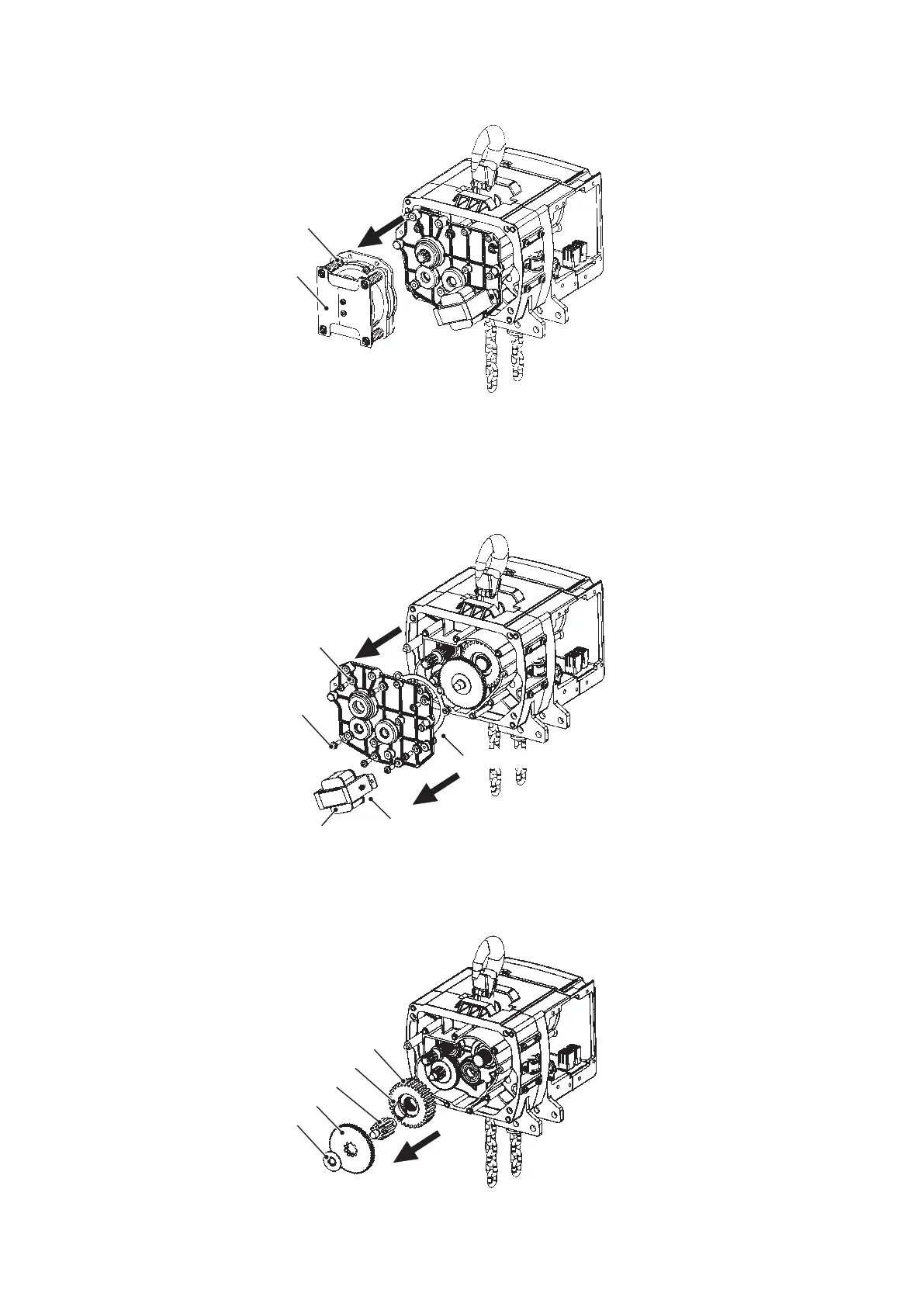

) Remove 4 screws (M6×16) and remove the brake.
3. How to disassemble the gear
(1) Disassemble by the same procedure up to step (3) of the above-mentioned ‘2. How to disassemble the
brake’.
(2) Remove two screws (M4×8) and remove the transformer.
(3) Remove 7 screws (M6×16) and remove the gear case cover and gear case packing.
(
4
)
Remove the thrust spring seat, 2nd stage gear, 3rd stage pinion, axle C-ring 25, 3rd stage gear.
Screw M6×16
Brake
gear case cover
Screw M6×16
3rd stage gear
Axle C-ring 25
3rd stage pinion
2nd stage gear
Thrust spring seat
gear case packing
Screw M4×8Transformer
(
3
)
(
3
)
(
2
)
(
4
)
