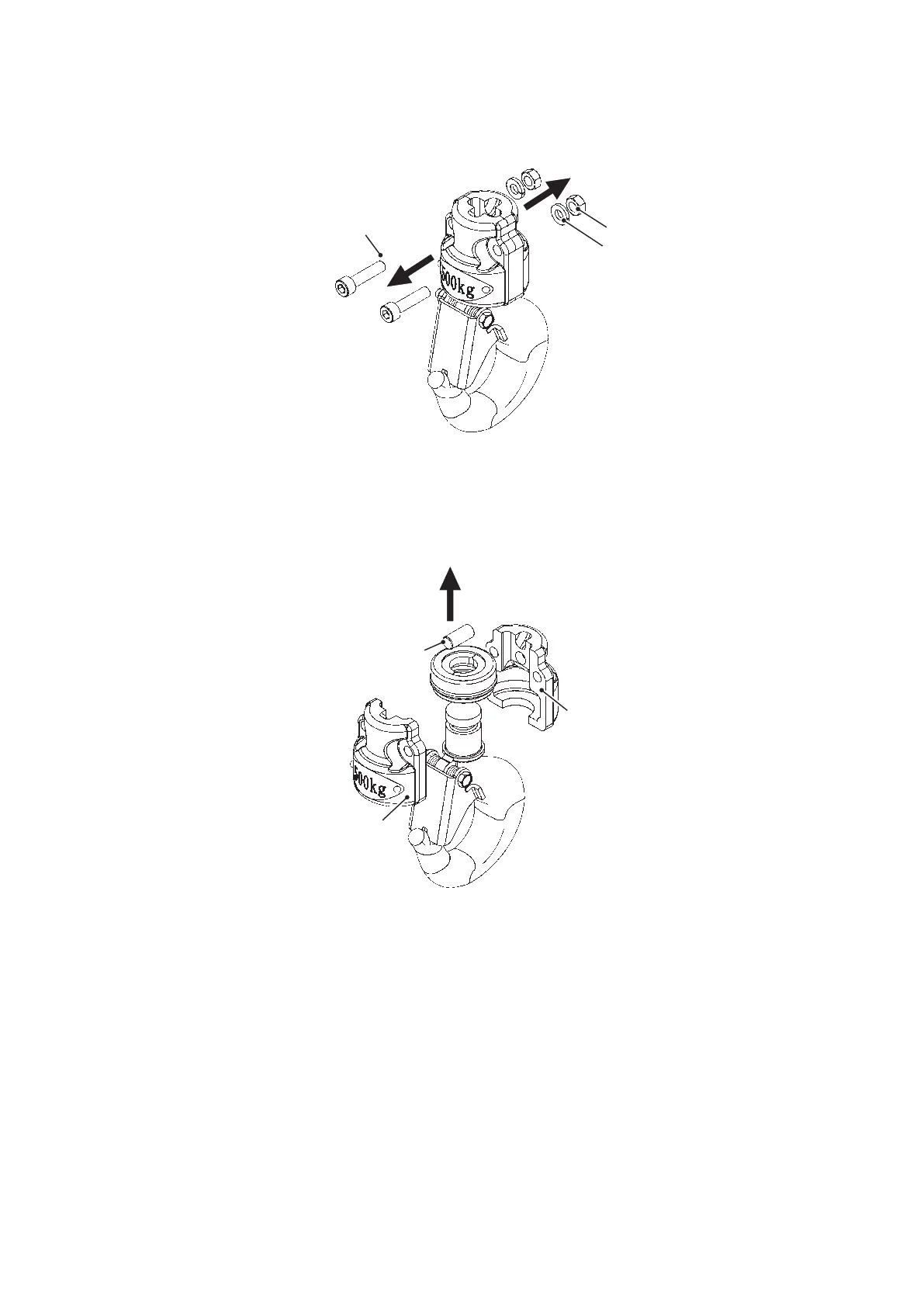

5. How to disassemble the lower hook
(
1
)
Remove 2 hexagonal socket head bolts (M6
× 25), nuts (M6) and spring washers (M6) each.
(
2
)
Remove the chain, hangers and hanger pin.
Hexagonal socket head bolt M6 × 25
Hanger
Hanger
Nut M6
Spring washer M6
(
1
)
(
2
)
(
1
)
Hanger pin
