9 AIR PANEL P-AP56NAMR
9.1 NAME OF PARTS

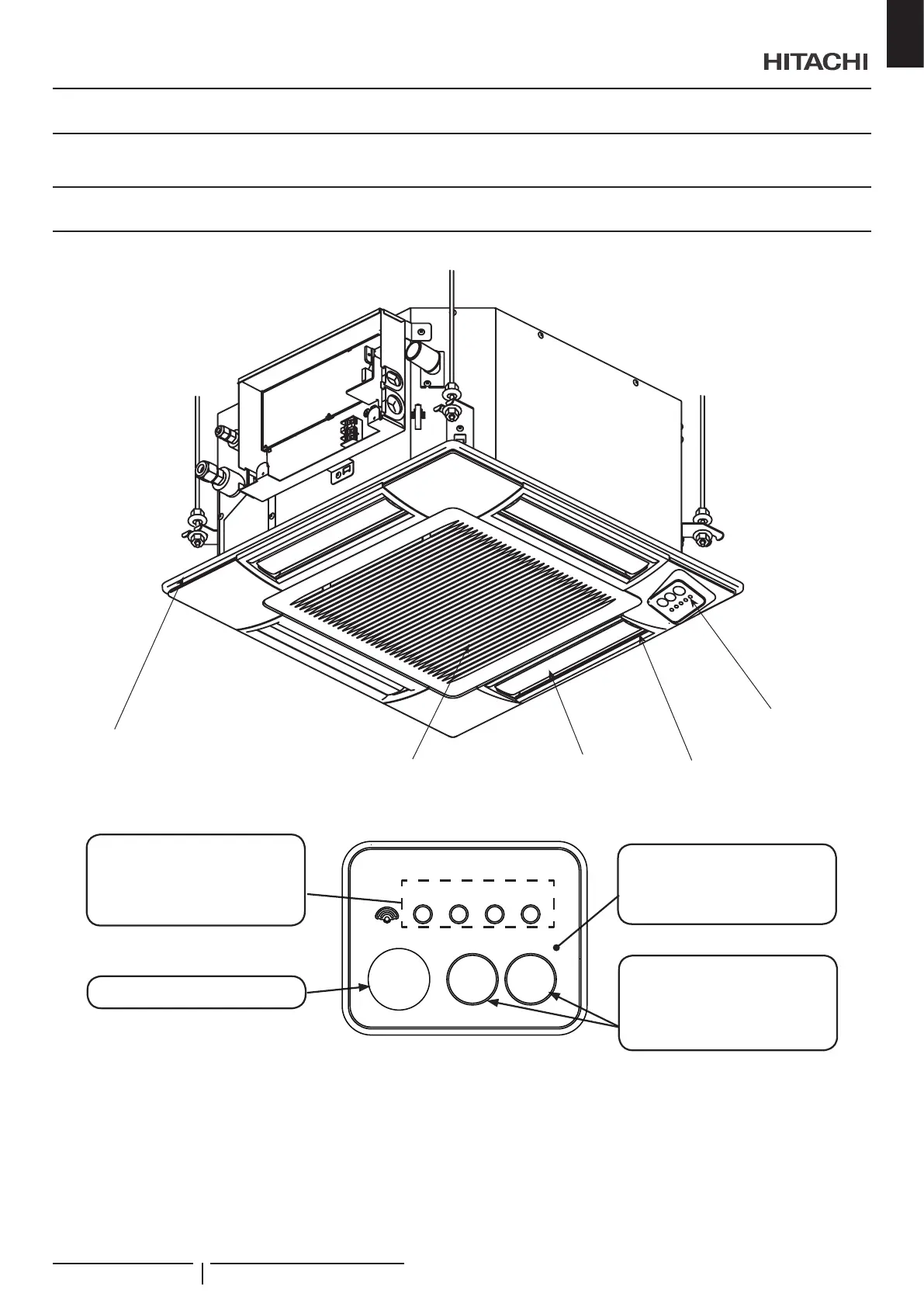

9.2 AIR PANEL P-AP56NAMR
Air inlet grille
Receiver kit
Louver
Air outlet
Air panel
P-AP56NAMR

Receiver kit
Switch for emergency
operation
(Refer to the item "9.5Emergency
operation" about detail.)
Indicator lamp
The indicator lamps are turned ON
and ash for the conditions of “Run”,
“Timer”, “Def” (defrost), “Filter” and
receiving.
Receiver
Dip Switch
(Inside of receiver kit)
for function selection setting (this
switch is for installer.)
CoolHeat
Emergency
RunDefFilterTimer
