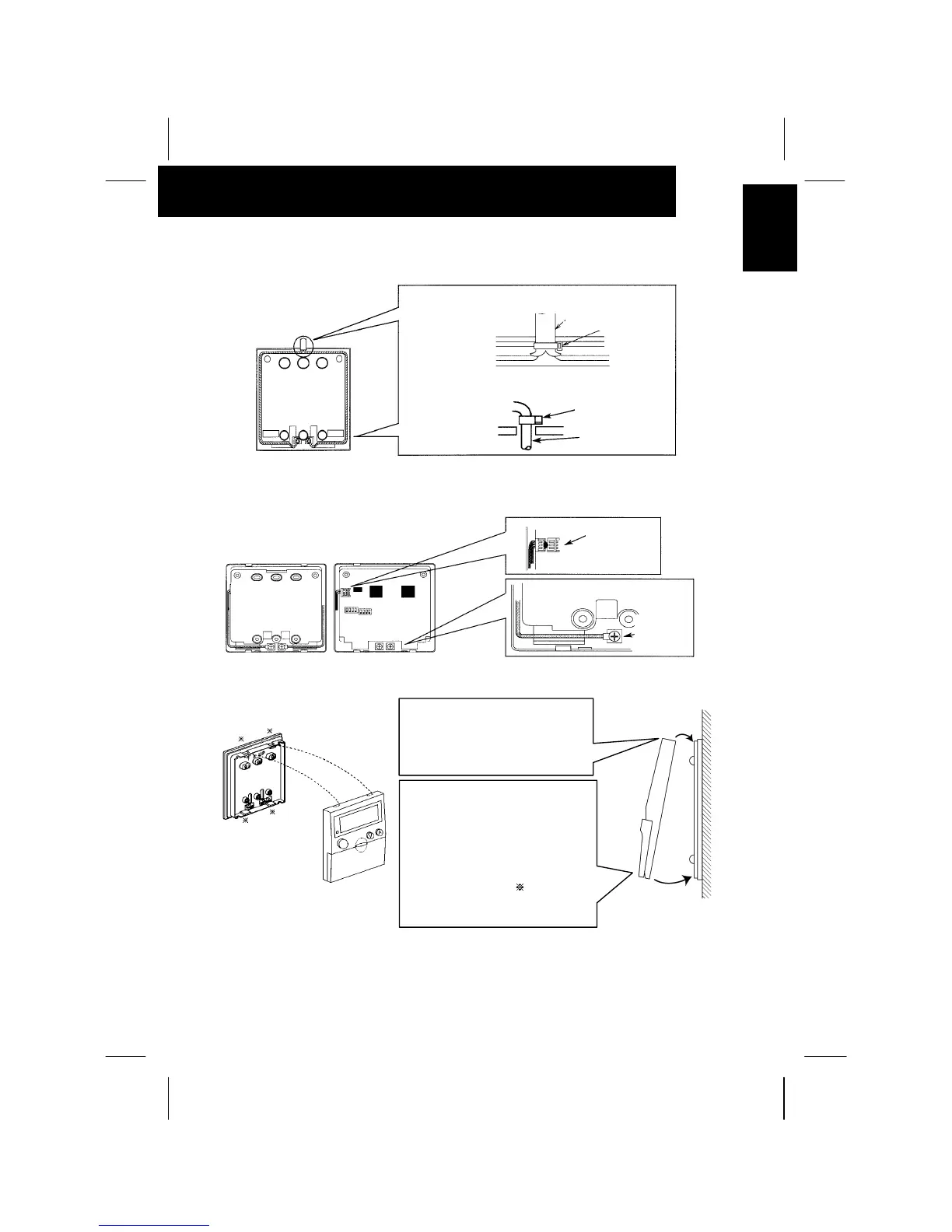

INSTALLATION WORK
2
/
3
ENGLISH
Lead the cable through the groove.
NOTE:
In case of connecting the accessory cable to the connector, remove the protection case.
Attach the Timer onto the holding bracket.
Band
(Field-Supplied)
Cable
Twist Pair Cable
Accessory Cable
Attach the
stopper to the
cable at the
inside of the
draw-out hole.
Cable
Band (Field-
Supplied)
Connector
Terminal
Board
Ù
ÙÙ
ÙStep 1:
Insert the hooks of the Timer to
the holes at the upper side of the
holding bracket.
Ù
ÙÙ
ÙStep 2:
Push the lower part of the Timer
toward the holding bracket.
Ù
ÙÙ
ÙStep 3:
When the click sound is heard, the
Timer is attached to the holding
bracket and the mounting work is
completed.Check to ensure that the
4 hooks at the position
are correctly
inserted.
To Next Page
