10.1 RCI - 4-way cassette (1.0-6.0)FSN2E

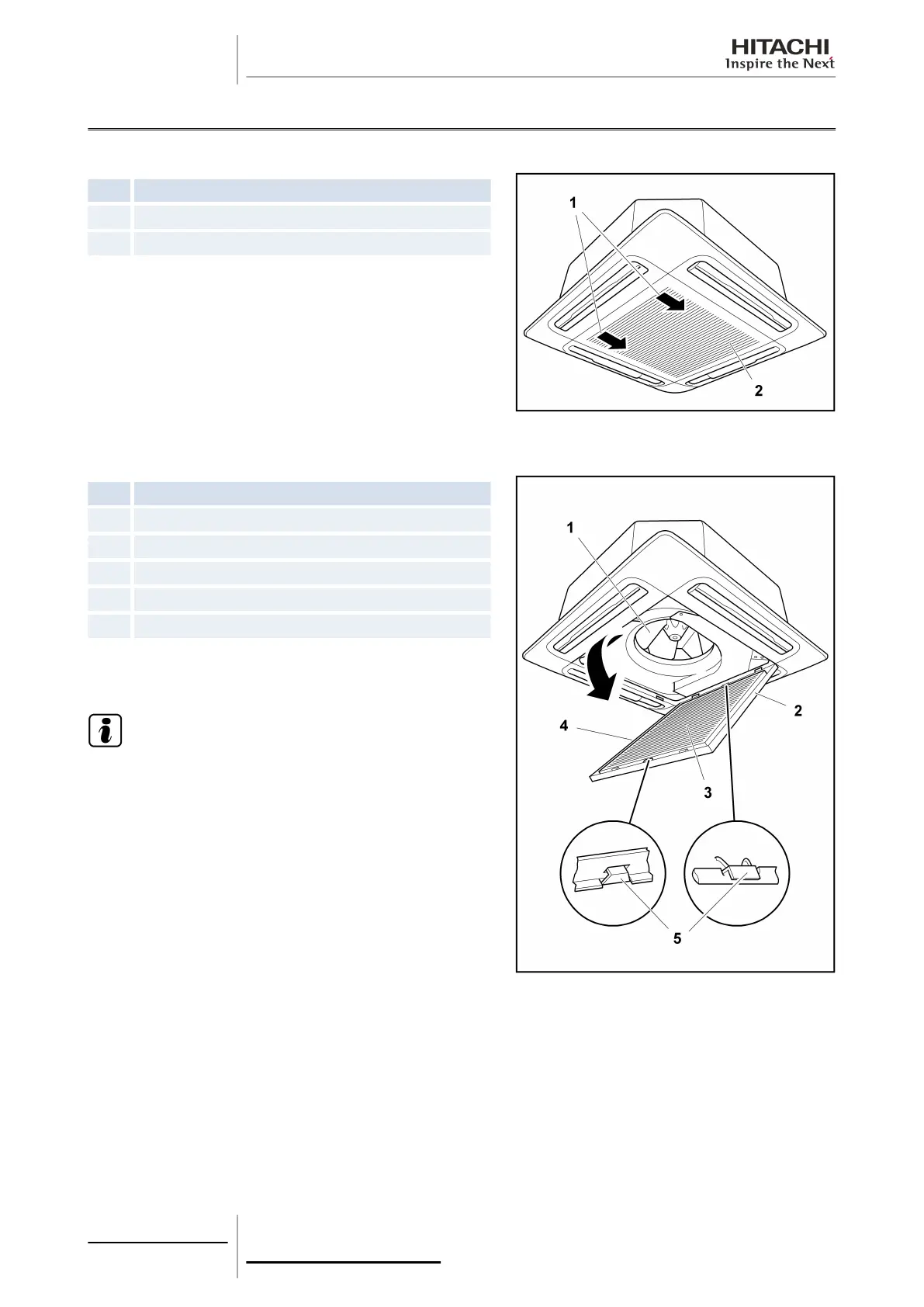

10.1.1 Removal of the long-lasting air filter
Nº Part
1 Button
2 Air inlet grille
The long-lasting filter is located inside the air inlet grille.
Press the buttons in the direction indicated by the arrows and open
the air inlet grille.
Remove the filter from the grille by holding onto the lower part of
the grille and the filter and detaching the blocked part.
10.1.2 Removal of the air inlet grille
Nº
Part
1 Fan
2 Air inlet grille
3 Long-lasting filter
4 Chain
5 Hooks
Lift the grille approximately 30° and release the securing chain.
Remove the grille by sliding it upwards and forwards.
N O T E
If the chain is released and the grille angle is at 90°, the grille
cannot be removed.
