10.8.7 Removal of the thermistors from the liquid and gas pipes and the inlet air and outlet
air thermistors
Removal of the thermistors from the liquid and gas pipes
RPK-(1.0-2.0)FSN(H)2M:
Remove the front panel in line with the instructions given in
sectionRemoval of the front panel, see on page 323.
N O T E
Remove the right-hand cover instead of the front panel on
RPK-(2.5-4.0)FSN2M models.
Remove the electrical box panel as indicated in section Remove
the electrical box panel, see on page 329.

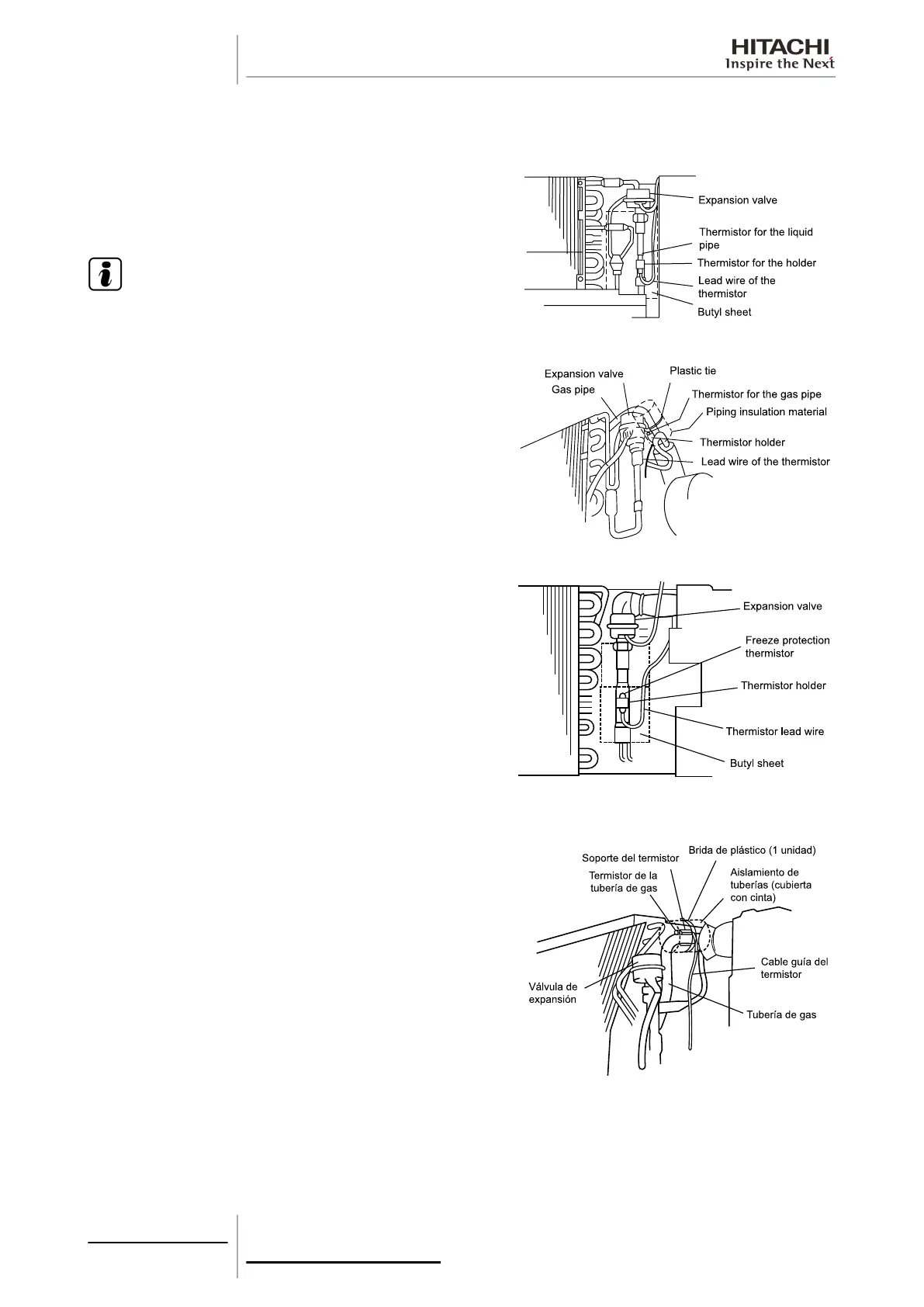

Remove the butyl sheet protecting the liquid pipe thermistor and
remove the support.
Remove the butyl sheet protecting the gas pipe thermistor, cutting
the plastic tie and the rest of the tapes. Then remove the thermistor
from the support.
RPK-(1.0-2.0)FSH(H)2M:
RPK-(2.5-4.0)FSN2M:
