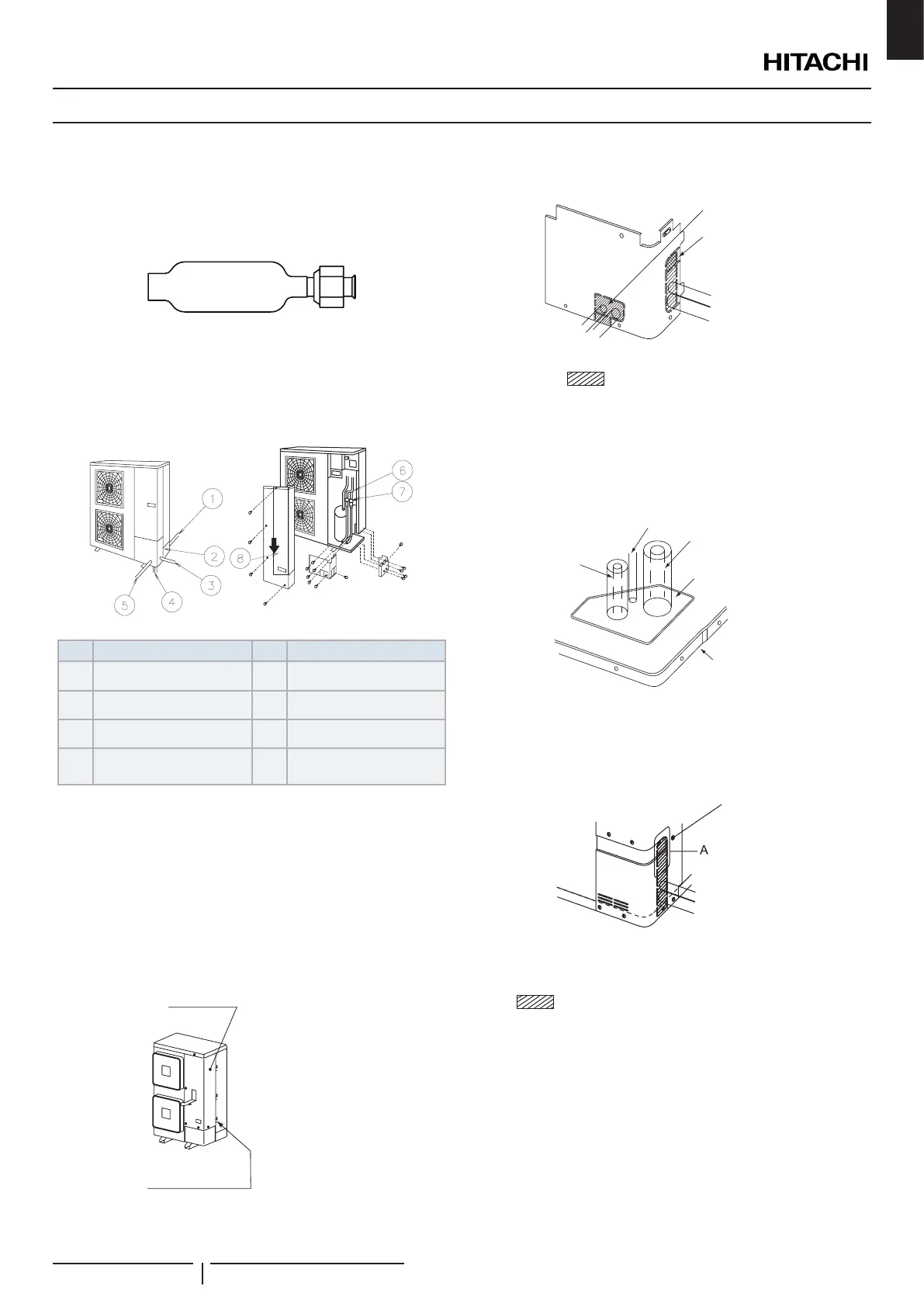

8.2 PIPING CONNECTION FOR OUTDOOR UNIT

Gas pipe accessory (only for 8 and 10 HP)
For RAS-(8/10)WHNPE, the gas pipe accessory with a are nut
(factory-supplied silencer) shall be brazed to the eld supplied
gas line, and connected to the gas valve.
1 The pipes can be connected from 4 directions. Make holes
in the piping cover or cabinet for taking out pipes. Take the
piping cover away from the unit, and make holes by cutting
along the guideline at the rear of the cover or punching
with a driver. Remove the burr with a cutter, and place a
insulation (eld supplied) to protect cables and pipes.
(picture as example)
Nº Description Nº Description

Rear side piping work

Front side piping work

Pipe Cover

Piping work

Right side piping work

Stop Valve

Bottom side piping work
(Knock out hole)

Removing Direction for
Service Cover
! CAUTION
Notestoopen/closetheservicecover:
• Removethescrewsfollowingtheinstructionstotheabovegure.
• Slowlypressdownthecover.
? NOTE
Holdthecoverwithahandtoremovescrewsasthecovermayfalldown.
Service cover
Hook (three places): two fans
Hook (two places): one fan
(picture as example)
a. For the front and side piping
Front piping hole
Side piping hole
To use racking or conduit tubes, check the size and
remove part following the slit.
? NOTE
Placeinsulation(eldsupplied)toprotectcablesandpipesfrom
beingdamagedbyplateedges.
b. For the downward piping
Gas piping
Knock-out hole
Bottom base
Cables
Liquid piping
? NOTE
Cablesshallnotcontactdirectlytothepipes.
c. For the rear side piping
Rear Cover
? NOTE
Removethe rearpipecover undertherear coverandremove
partfollowingtheslit.
REFRIGERANT PIPING & REFRIGERANT CHARGE
PMML0372B rev.5 - 01/2021
9
EN
