10. Attach the included power supply adapter and the headphones to drum sound
module connector panel.
AC POWER
POWER
ON OFF
PHONES
DC 9V
17
18

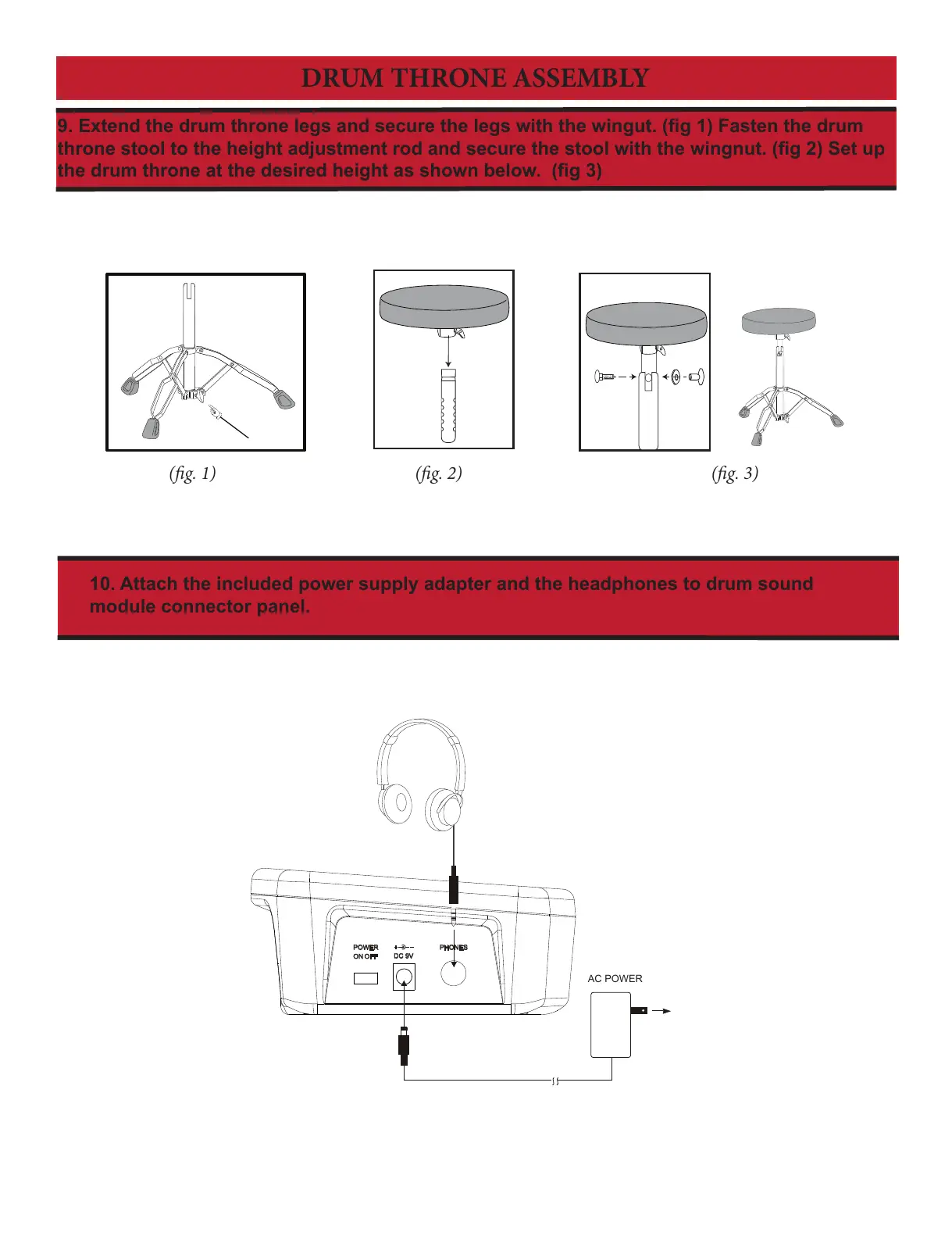

9. Extend the drum throne legs and secure the legs with the wingut. (g 1) Fasten the drum
throne stool to the height adjustment rod and secure the stool with the wingnut. (g 2) Set up
the drum throne at the desired height as shown below. (g 3)
DRUM THRONE ASSEMBLY
(g. 3) (g. 2) (g. 1)
