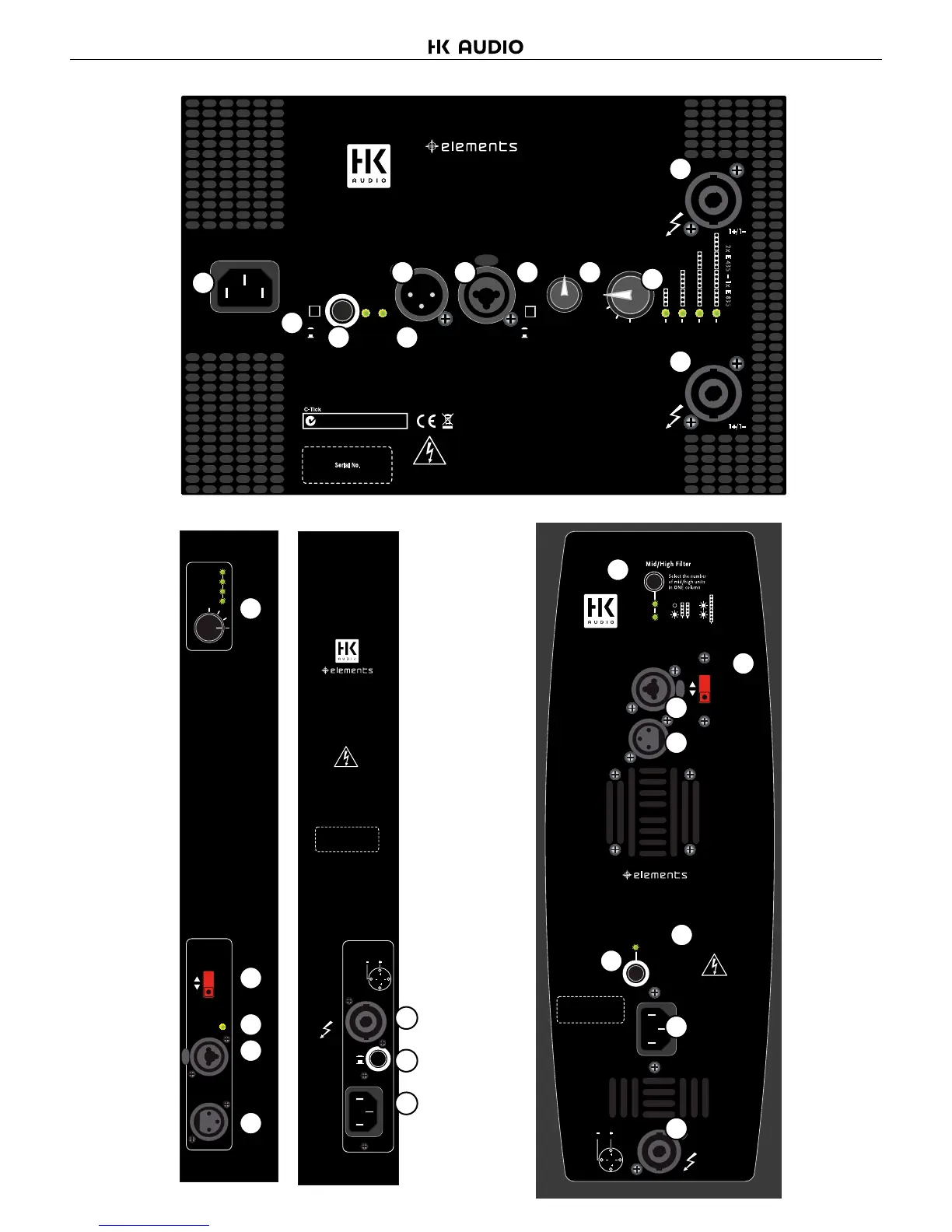

HK Audio E 835 - Component Control Layouts; E 110 Sub AS Controls; EA 600 Power Amp Controls; E 110 Sub A Controls

Elements 1.0
2
E 110 Sub A
Powered Subwoofer
Mains
Green = On
Red = Limit/Error
Power
Made in Germany
Caution: To reduce the risk of
electric shock, grounding of
the center pin of this plug
must be maintained.
Caution: Risk of electric shock!
Do not open! Refer servicing to
qualified service personnel.
2
1
21
Sensitivity
+4 dB
-10 dB
Input
Through
Leave eno ugh spac e fo r pr oper ven tila tion !
Min. imp. 8 Ohms
300 Watts
Speaker Out
Serial No.
1
2
4
5
7
6
8
9
Caution: Ris k of ele ctri c sh ock!
Do not op en! Refe r se rvic ing to
qualified ser vice per sonn el.
Sensitivity
Mains
Power
Speaker
Out
Through
Input
Green = On
Red = Limit/Error
+4 dB
-10 dB
EA 600
Power Amp
Caution: To re duce the ris k of
electric shoc k, g roun ding of the
center pi n of the AC plug mus t
be mainta ined .
2
1
21
Min. imp.
4 Ohms
600 Watts
Made in Germany
Mid/High
Filter
Select th e
number of
mid/high uni ts
in ONE co lumn
1
2
3
4
On
Off
Serial No.
1
2
4
5
6
7
8
9
Caution: To reduce the risk of
electric shock, grounding of the
center pin of this plug must be
maintained.
220-240 V~ 50-60 Hz
6 A rated current
Caution: Risk of electric shock! Do not open!
Refer servicing to qualified service personnel.
E 110 Sub AS
System Subwoofer
Made in Germany
Bass Gain
Through
Power
Input
Mid/High Filter
Leave enough space for proper ventilation!
Green = On
–12 dB +6 dB
Mains
Limit
Sub
Limit
Mid/High
Select the number of mid/high units in ONE column
2x E 435 = 1x E 835
Mid/High Out
E 435 / E 835
1+/1–
1 2 3 41
2
3
4
Sub Out
E 110 Sub A
1+/1–
220-240 V~ 50-60 Hz
6 A rated current
Auto
Stand-by
off
on
Sens.
(dBu)
–10
+4
1
7
7
2 345
8
10
9 6
