Stand

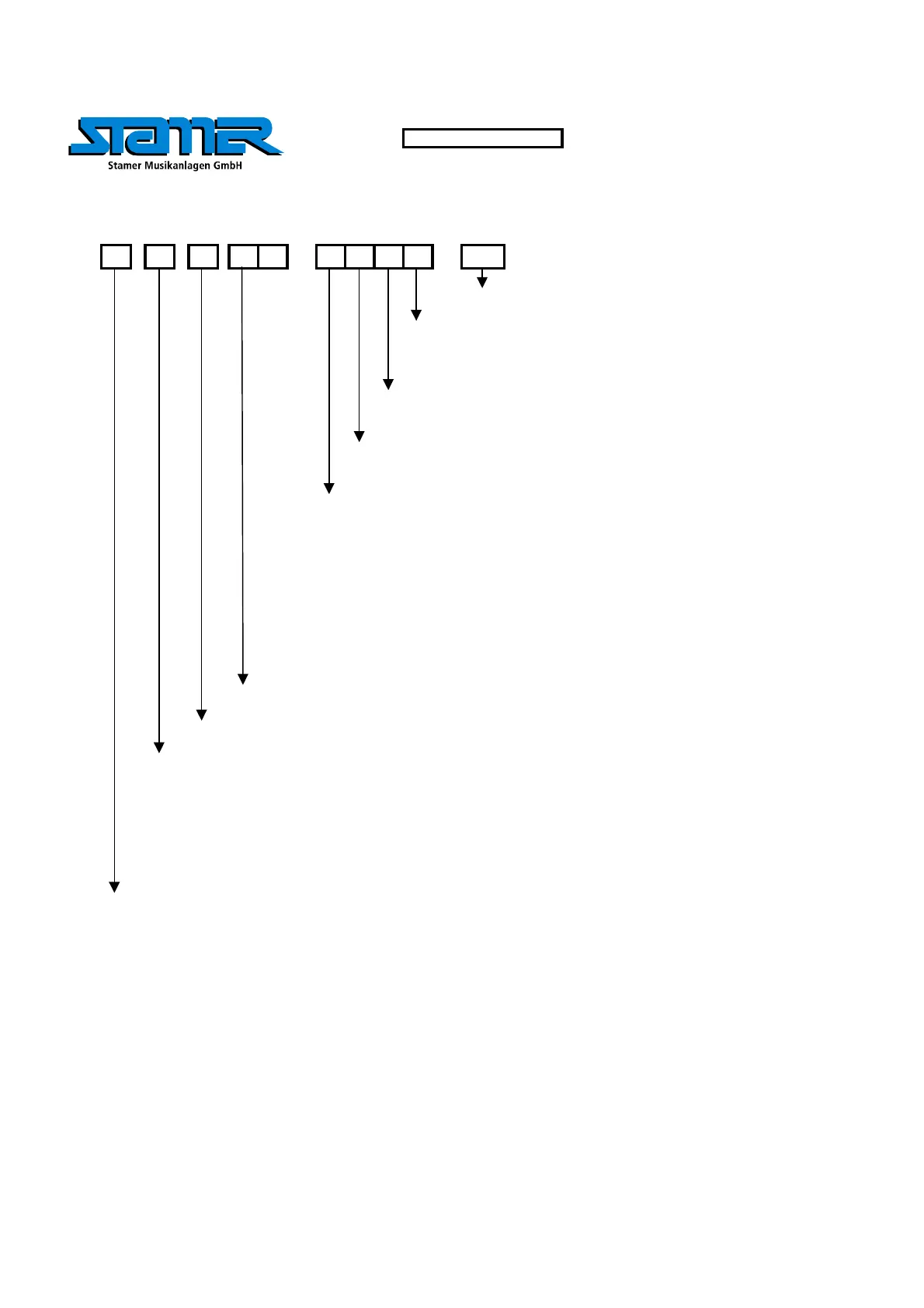

Standard for single wire confection.
16 B 150 638 I
-
485 W Z I 1015
style 1015 according UL specifications
I
= completely insulated with black shrinktube or appropriate sleeve
IT
= partly insulated; only crimp connection insulated.
no marking = without insulation
Z
= with additional junction
no marking = without additional junction
W
= angled faston
no marking = straight faston
Faston connector brass tin-plated DIN 46245
638
= 6,3 * 0,8 [mm]
488
= 4,8 * 0,8 [mm]
485
= 4,8 * 0,5 [mm] if fully insulated (
I
) insulation with blue shrinktube
if partly insulated (
IT
) use IF 602 485 .
288
= 2,8 * 0,8 [mm]
285
= 2,8 * 0,5 [mm] if fully insulated (I) insulation with blue shrinktube
if partly insulated (IT) use IF 602 485
abiso
= 5mm bared and tin-plated (teilabzug)
text
for special constructions, (for example. 4mm ringshaped faston)
the larger faston connector always mentioned at first. (Nathan drawing number controlling)
lenght in mm within a 50 mm raster
colour
B
= black (phase conductor)
R
= red
BR
= brown
BL
= blue (neutral conductor)
W
= white
YG
= yellow-green (ground bonding/ earthing connection)
cross section
16
= AWG 16 (prefered usage)
Q1.5
= H07VK 1,5mm² (prefered usage)
wire designation:
P + lfd Nr.
= AWG single wire black, red, blue, brown or white
E + lfd Nr.
= AWG single wire green- yellow
L + lfd Nr
. = twisted AWG double wire, lenght specification always in twisted condition
FQL + lfd Nr.
= crossover wiring H07VK
17. Jun 04
Regarding special wirings like wiring harness or similar, drawings will be prepared and appropriate
drawing numbers will be stored in the article archive.
