Hog Slat GrowerSelect HS593 - Wiring Diagrams for Optional Configurations; Optional Time Delay Wiring; Extension Auger Wiring; Drop Tube Switch Integration

Grow-Flex™ Feed System
5
Hog Slat Inc. Newton Grove, NC USA June 2017

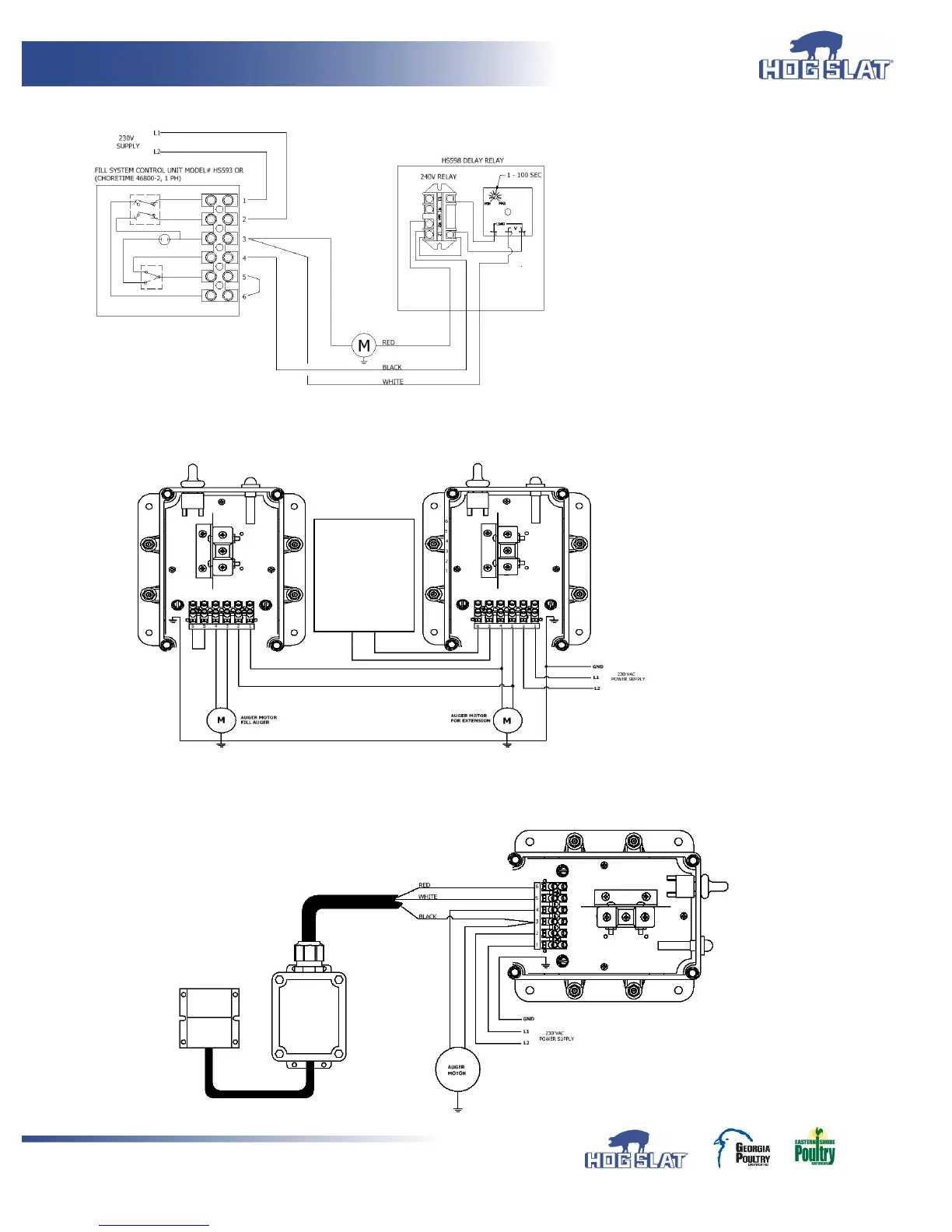

WITH OPTIONAL TIME DEL A Y :
WITH EXTENSION GROW-FLEX™ AUGER USING TWO HS593 CONTROL UN I TS
CHORE-TIME 46316 DROP TUBE SWITCH
REFER TO
FIGURE 3
FOR LEVEL
SWITCH
EXAMPLES
