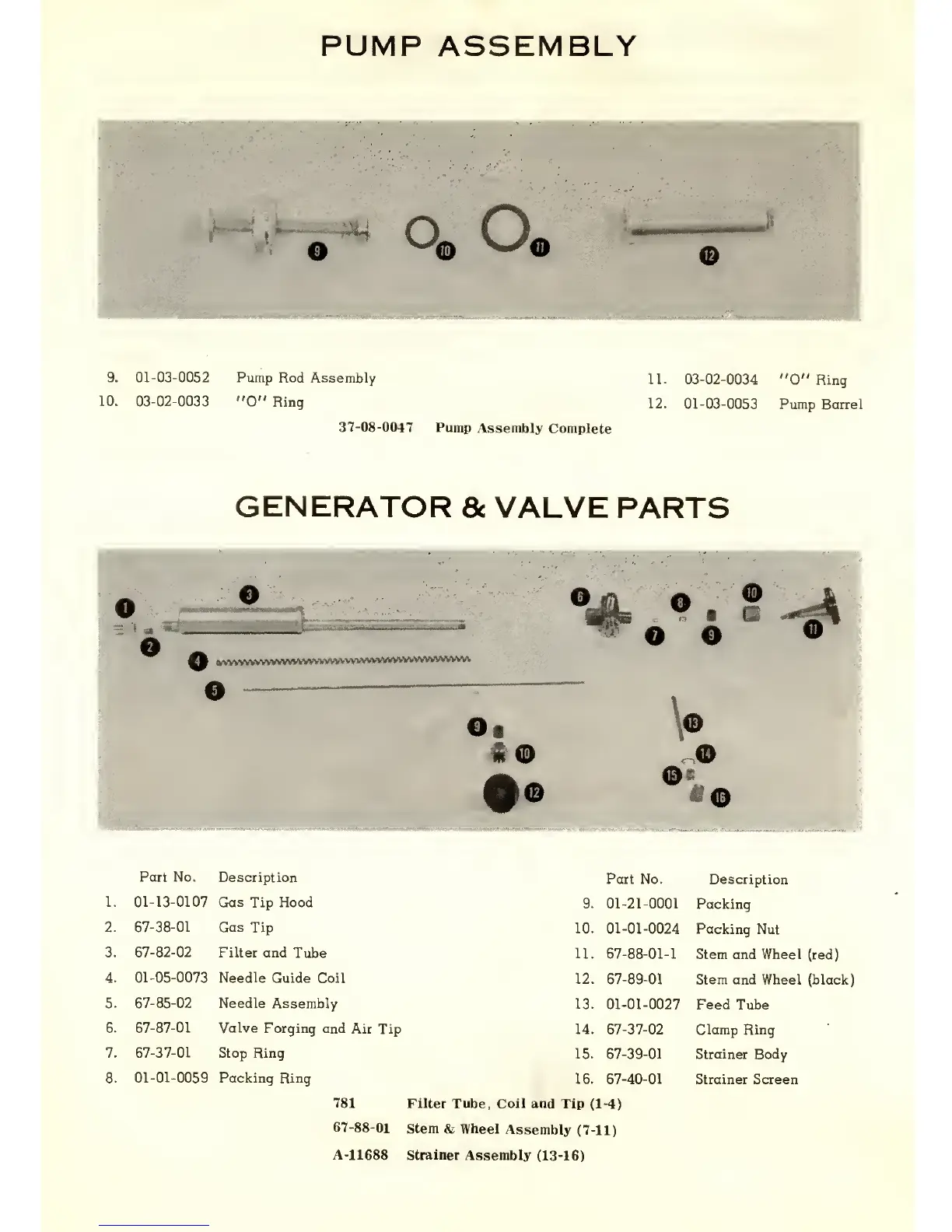

Holiday 8425 - Pump Assembly Parts List; Generator and Valve Parts List

PUMP ASSEMBLY
9.
01-03-0052
10.
03-02-0033
Pump Rod Assembly
"0"
Ring
37-08-0047
Pump
Assembly
Complete
11.
12.
03-02-0034
01-03-0053
"0"
Ring
Pump
Barrel
GENERATOR
&
VALVE
PARTS
Part No.
Description
1.
01-13-0107
Gas
Tip Hood
2.
67-38-01
Gas
Tip
3.
67-82-02
Filter
and
Tube
4.
01-05-0073
Needle
Guide Coil
5.
67-85-02
Needle Assembly
6.
67-87-01
Valve
Forging and
Air Tip
7.
67-37-01
Stop Ring
8.
01-01-0059
Packing Ring
Part
No. Description
9.
01-21-0001
Packing
10.
01-01-0024
Packing
Nut
11.
67-88-01-1
Stem and Wheel (red)
12.
67-89-01
Stem and Wheel
(black)
13.
01-01-0027
Feed
Tube
14.
67-37-02
Clamp Ring
15.
67-39-01
Strainer Body
16.
67-40-01
Strainer Screen
781
Filter Tube, Coll and Tip
(1-4)
67-88-01
Stem
& Wheel
Assembly
(7-11)
A-11688 Strainer
Assembly (13-16)
