HOLMAN CONVEYOR TOASTERS
MODELS T710(H, TW, TX) T714(H, TW, TX) S710(H) S714(H) B710H
TROUBLESHOOTING GUIDE CONT.
3. Check if crumb tray is in place. NEVER OPERATE UNIT WITHOUT
CRUMB TRAY IN PLACE AS THIS CAUSES OVERHEATING IN THE
CONTROL BOX.
4. If no obstructions to the airflow can be found and if the crumb tray is in
place, call Holman Factory Service Department at 1-800-225-3958 for
assistance.
D. CONVEYOR WILL NOT TURN, UNIT HEATS PROPERLY.
1. DISCONNECT UNIT FROM POWER SOURCE.
2. Remove right hand side panel (from operator's position). Loosen screws
holding drive motor in place and slide motor toward the rear of unit.
Remove drive chain and manually move conveyor belt to check for
mechanical binding. If conveyor moves freely, call Holman Factory
Service Department at 1-800-225-3958 as drive motor and/or speed
control may need replacement.
SHAFT BEARINGS
DRIVE SHAFT SPROCKET
DRIVE CHAIN
DRIVE MOTOR ADJUSTMENT SLOTS

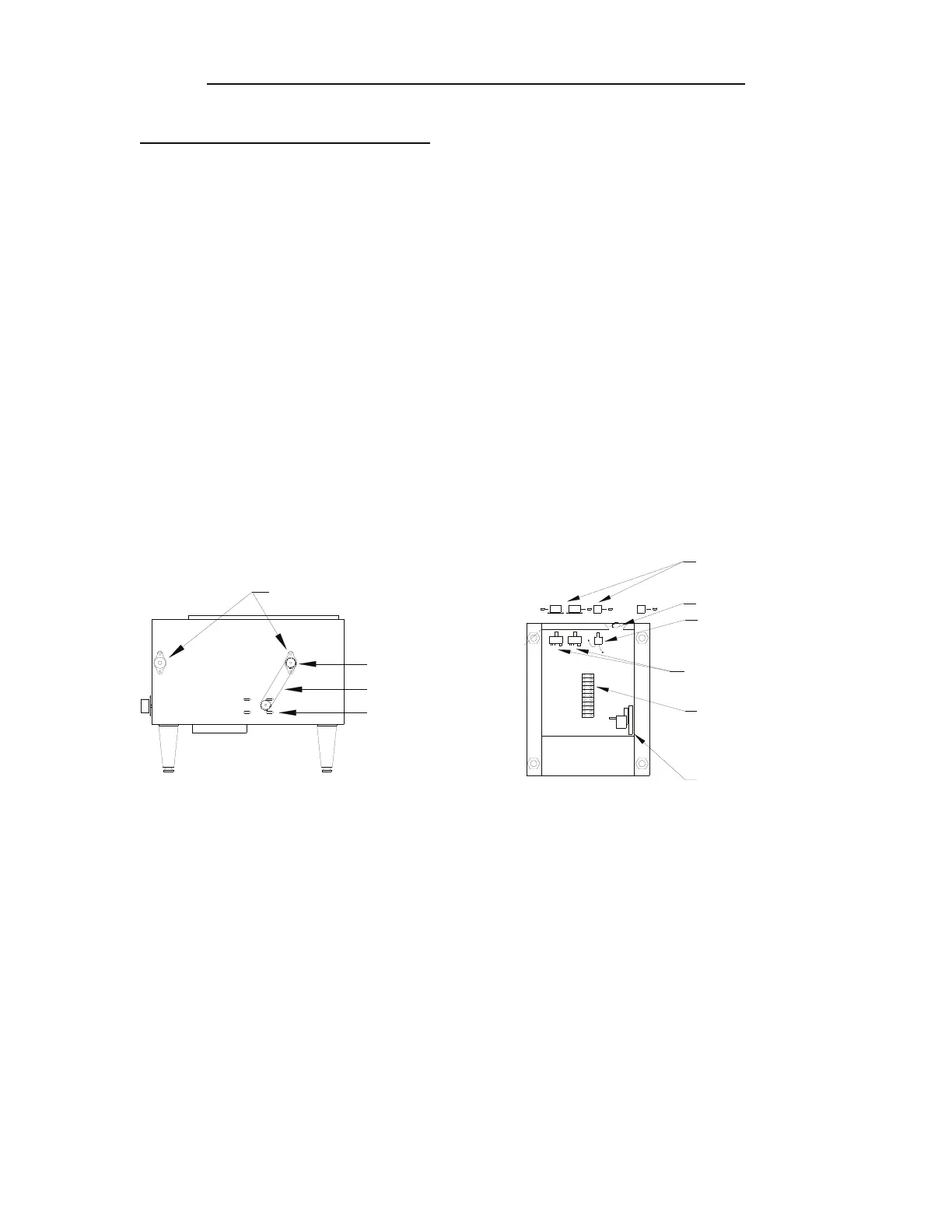

RIGHT SIDE SHOWN WITHOUT SIDE PANEL
CONTROL KNOBS
HEAT CONTROLS
DRIVE MOTOR
RESET BUTTON
CONVEYOR
SPEED CONTROL
TERMINAL STRIP
E. CONVEYOR TURNS AT ONE SPEED REGARDLESS OF SPEED
CONTROL SETTING.
1. Call Holman Factory Service Department at 1-800-225-3958 as speed
control should be replaced.
REVISED 9/10/2008
PAGE 7
OPERATOR'S MANUAL
