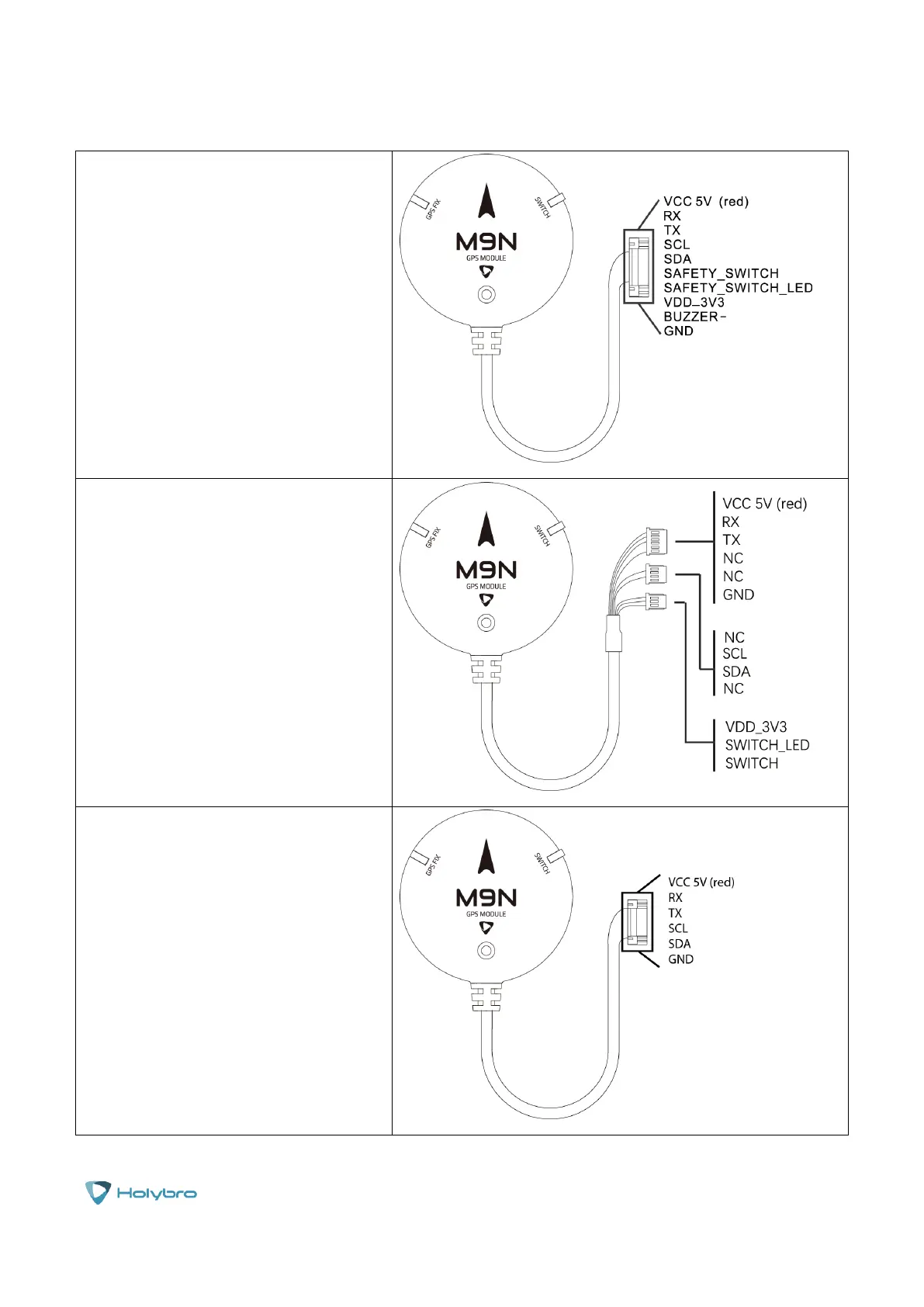

Pin Map
SKU12027
Holybro M9N GPS (JST GHR1.25mm 10
pin cable):
This JST GH 10Pin connector can be use
d on Pixhawk Series 10pin“GPS Module”
or "GPS1" input port.
SKU12028
Holybro M9N GPS for Pix32
(Molex1.25mm 6pin & 4pin &3pin
cable):
These Molex1.25mm 6pin & 4pin &3pin
connectors are for Pix32 "Switch", "GPS",
and "I2C" input ports.
SKU12029
Holybro M9N 2nd GPS(JST GHR1.25m
m 6pin cable)：
This JST GH 6Pin connector can be used
on Pixhawk Series 6pin“UART & I2C”or "
GPS2" input port as secondary GPS.
