HOMCOM 440-026 - Frame Assembly and Disassembly

10
PART
NO.
NAME
Q’TY
PART
NO.
NAME
Q’TY
1
Base Frame
1
13
Knob
1
2
Side Frame
2
14
Fabric Bottom
1
3
Cross Bar
1
15
Side Panel
2
4
Hitch Arm
1
16
Front Reflector
2
5
Hitch Clamp
1
17
Top Cover
1
6
Brake Clip
1
18
Rear Reflector
1
7
Fork
1
19
Flag
1
8
20 inch wheel
2
20
Safety Strap
1
9
10 inch Wheel
1
21
Brake system
2
10
Wheel Axle
2
22
Handle Strap
1
11
Safety Pin
1
23
Brake Lever
1
12
Button Hook
2
24
SpokeReflector
4

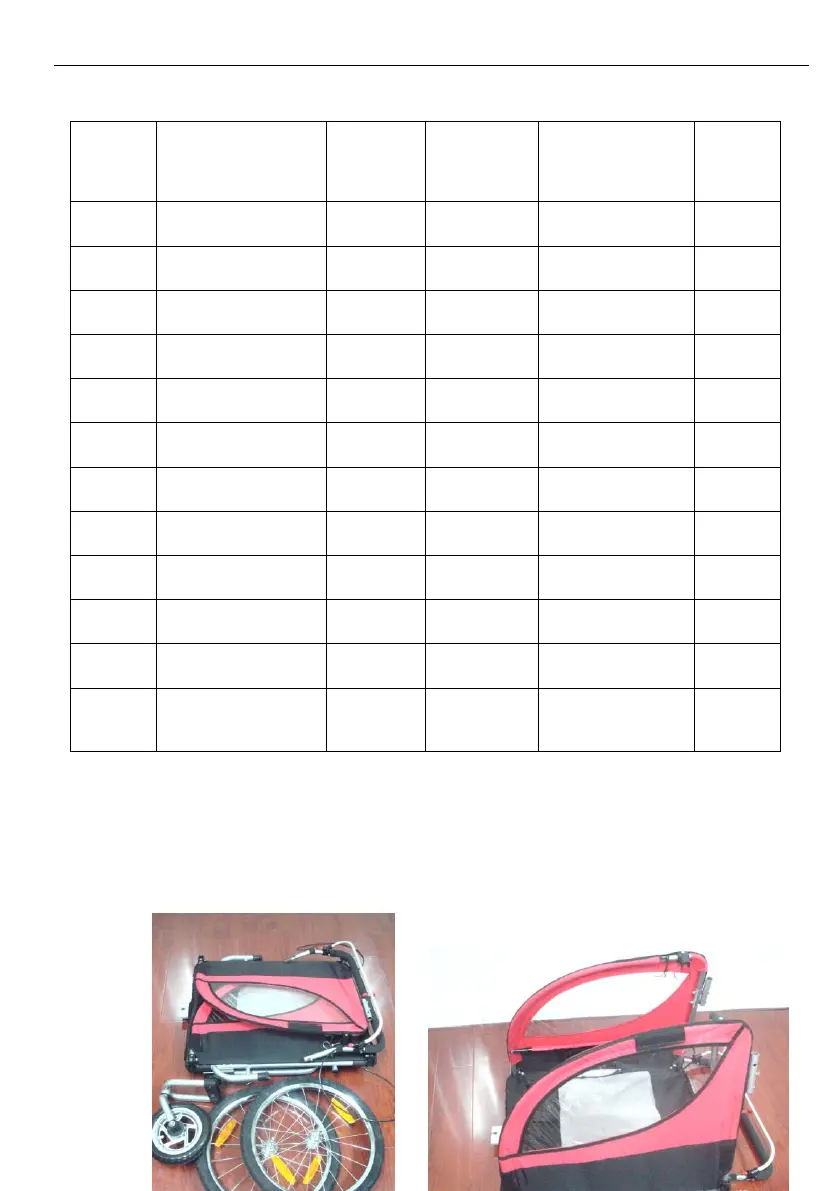

ASSEMBLY AND DISASSEMBLY OF THE FRAME & SEAT
Remove trailer and all components from carton and sort all
contents. Unfold side panels of trailer to the upright position.
