(19) may not have towels, clothing, bed sheets, bedding, curtains and other combustible
materials within the heater around 1 meter Products, and should be kept away after ther-
mal deformation or discoloration of furniture and other items.
(20) There shall be no obstructions or unstable hanging objects within 1 meter from the top
of the heater.
(21) When using the heater, to watch over the child, do not let the child feel free to touch
the heater, in order to avoid unnecessary damage.
(22) When using the heater, do not frequent switching windows and doors, it will affect the
heating effect.
(23) Do not use the heater outdoors.
(24) Keep the product specification, not discarded.

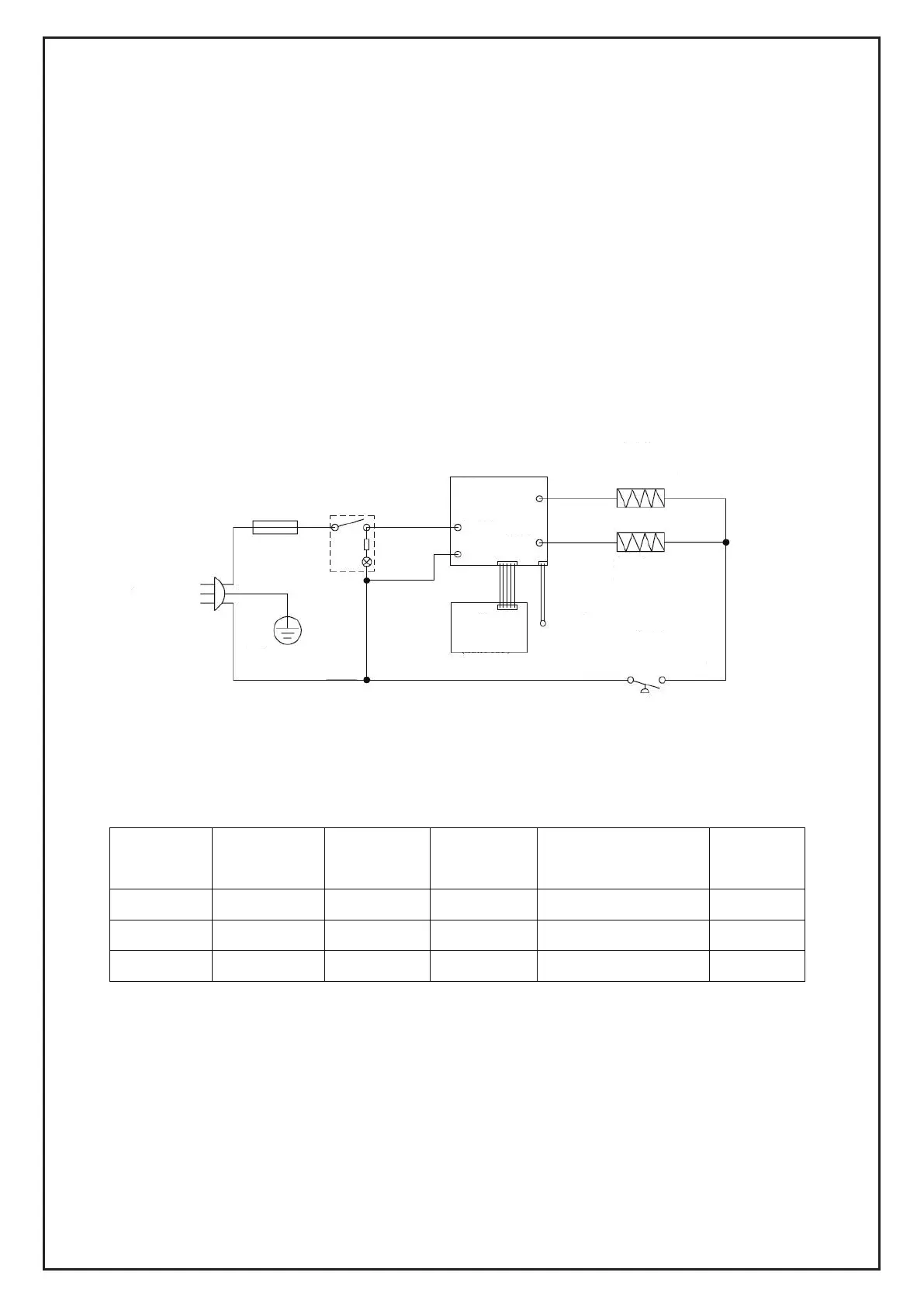

V.Schematic
Product
number
Number
of fins
Rated
voltage(V)
Frequency
(Hz)
Rated power（W）
Remark
HD986-B7 7 230 60 1500（900+600）
HD986-B9 9 230 60 2000（1200+800）
HD986-B11 11 230 60 2500（1000+1500）
PCBA
Monitor
ACN
NTC
ACL
Heater 1
Heater 2
HEAT1
HEAT2
Thermal Link
PLug
Switch
Grounding
Temperature Limiter
N
L
1 2
3
VI.The main technical parameters
Figure 4 Schematic
7
