Servicing Your Honda 87
Exhaust Pipe/Muffler

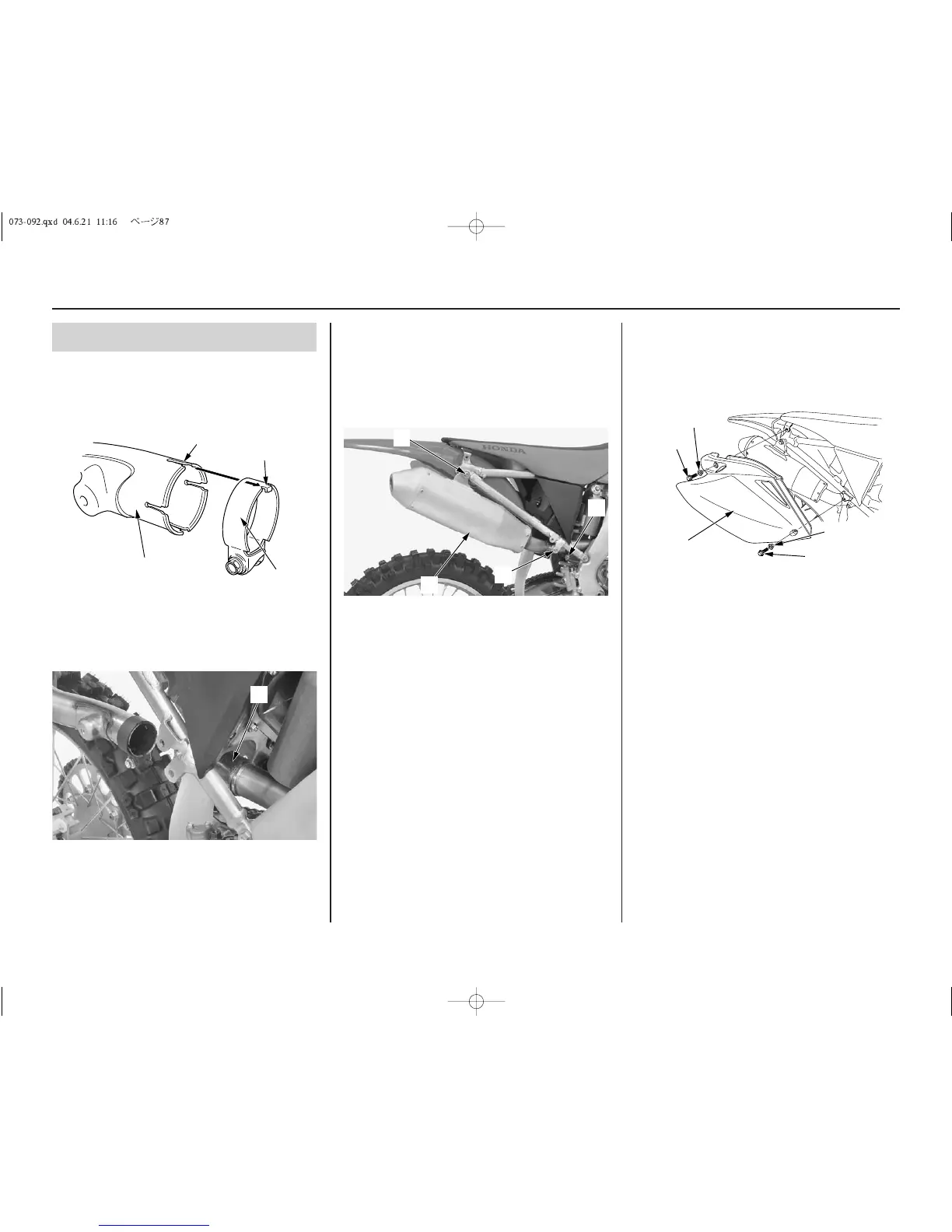

Muffler Installation
1. Install the muffler clamp (1) by aligning the
tab (2) of the muffler clamp with the cut-out
(3) of the muffler (4).
(1) muffler clamp (3) cut-out
(2) tab (4) muffler
2. Remove the old gasket.
3. Install the new gasket (5).
(5) gasket
4. Install the muffler.
5. Tighten the muffler A bolt (6) and muffler B
bolt/washer (7) to the specified torque:
19 lbf·ft (26 N·m, 2.7 kgf·m)
6. Tighten the muffler clamp bolt (8) to the
specified torque:
15 lbf·ft (21 N·m, 2.1 kgf·m)
(4) muffler (7) muffler B bolt/washer
(6) muffler A bolt (8) muffler clamp bolt
(9) right side cover (11) side cover bolt
(10) collars (12) seat bolt
(3)
(4)
(1)
(2)
(5)
(4)
(6)
(8)
(7)
(10)
(12)
(9)
(11)
(10)
7. Install the right side cover (9), collar (10) and
side cover bolt (11).
8. Install the collar (10) and seat bolt (12) and
tighten the bolt to the specified torque:
19 lbf·ft (26 N·m, 2.7 kgf·m)
