CYLINDER BLOCK
14-3
CRANKCASE COVER REMOVAL/INSTALLATION
Drain the engine oil (page 3-4).
Remove the following:
– Generator/front housing (page 7-11)

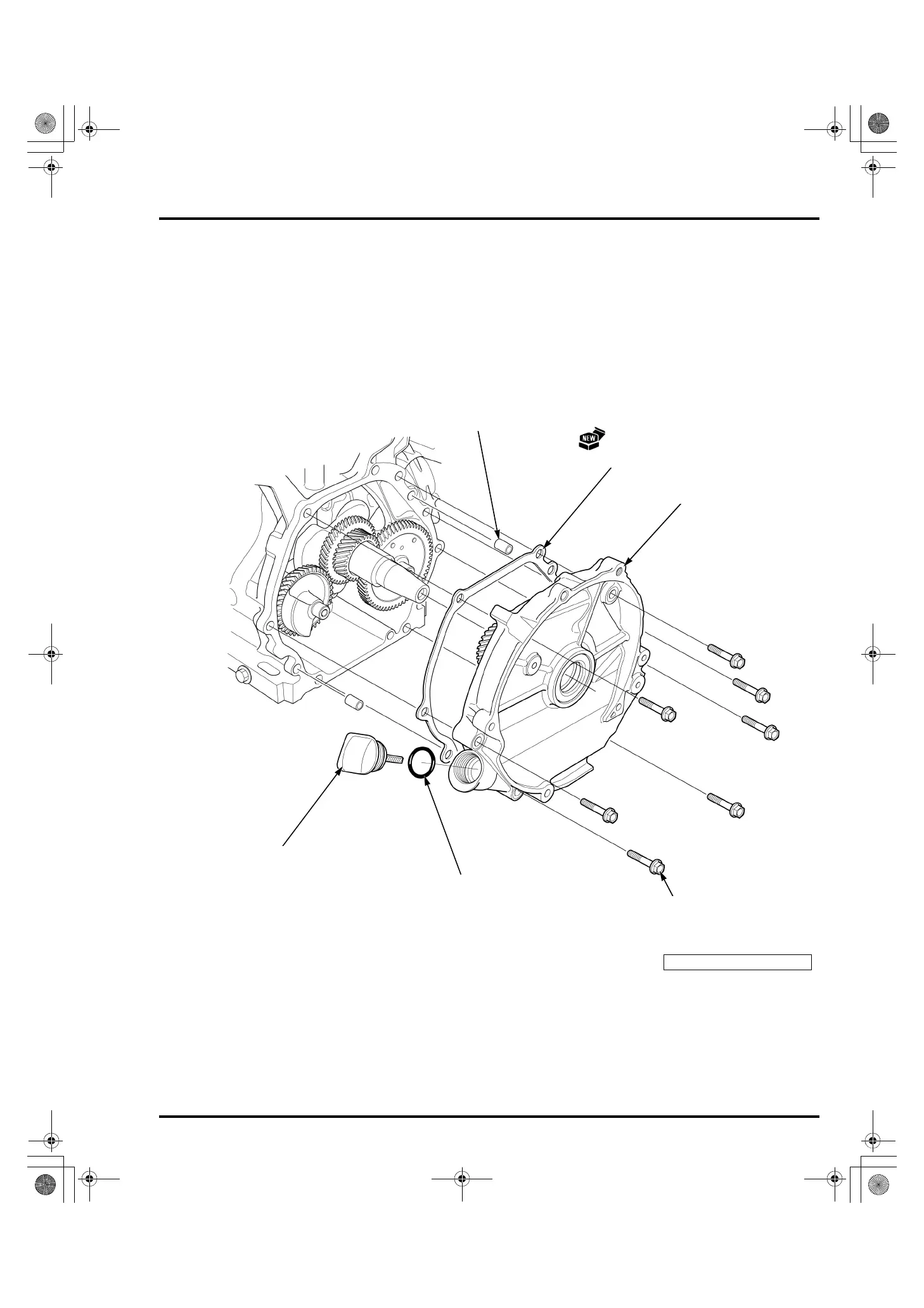

DOWEL PIN (8 x 12 mm) (2)
CASE COVER PACKING
CRANKCASE COVER
OIL FILLER CAP PACKING
OIL FILLER CAP
(With oil level gauge)
24 N·m (2.4 kgf·m, 18 lbf·ft)
EG3600CX/EG4000CX:
BOLT (8 x 35 mm) (7)
Except EG3600CX/EG4000CX:
BOLT (8 x 40 mm) (7)
