CYLINDER BLOCK
14-9

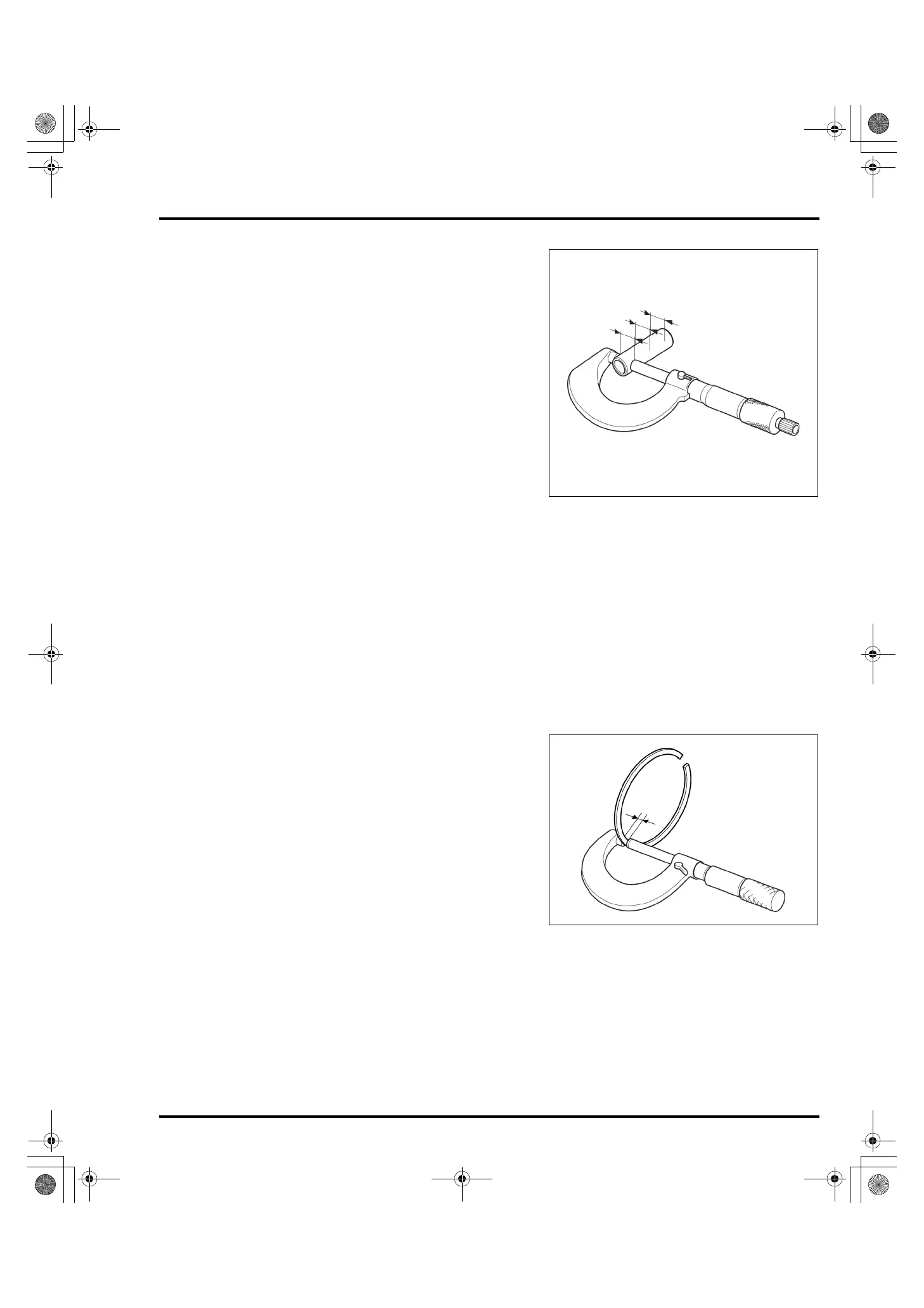

PISTON PIN O.D.
Measure and record the piston pin O.D. at three points
(both ends and middle). Take the minimum reading to
determine piston pin O.D.
If the measurement is less than the service limit,
replace the piston pin.
Inspect the piston pin bore I.D. (page 14-8).
Inspect the connecting rod small end I.D. (page 14-10)
with this inspection.
PISTON PIN-TO-PISTON PIN BORE
CLEARANCE
Subtract the piston pin O.D. from the piston pin bore
I.D. to obtain the piston pin-to-piston pin bore
clearance.
If the calculated clearance is more than the service limit,
replace the piston pin (page 14-6) and recheck the
clearance.
If the clearance is still more than the service limit with
the new piston pin, replace the piston (page 14-6).
PISTON RING WIDTH
Measure each piston ring width.
If any of the measurements is less than the service
limit, replace the piston rings (top, second, oil) as a set
(page 14-6).
EG3600CX/EG4000CX:
STANDARD: 17.994 – 18.000 mm
(0.7084 – 0.7087 in)
SERVICE LIMIT: 17.950 mm (0.7067 in)
Except EG3600CX/EG4000CX:
STANDARD: 19.994 – 20.000 mm
(0.7872 – 0.7874 in)
SERVICE LIMIT: 19.950 mm (0.7854 in)
STANDARD: 0.002 – 0.014 mm
(0.0001 – 0.0006 in)
SERVICE LIMIT: 0.08 mm (0.003 in)
STANDARD:
Top/Second: 1.160 – 1.175 mm
(0.0.0457 – 0.0463 in)
SERVICE LIMIT:
Top/Second: 1.150 mm (0.0453 in)
