SPECIFICATIONS
1-22
EG6500CX KH/MH/RH type/EG6500CXS KH/MH/RH type

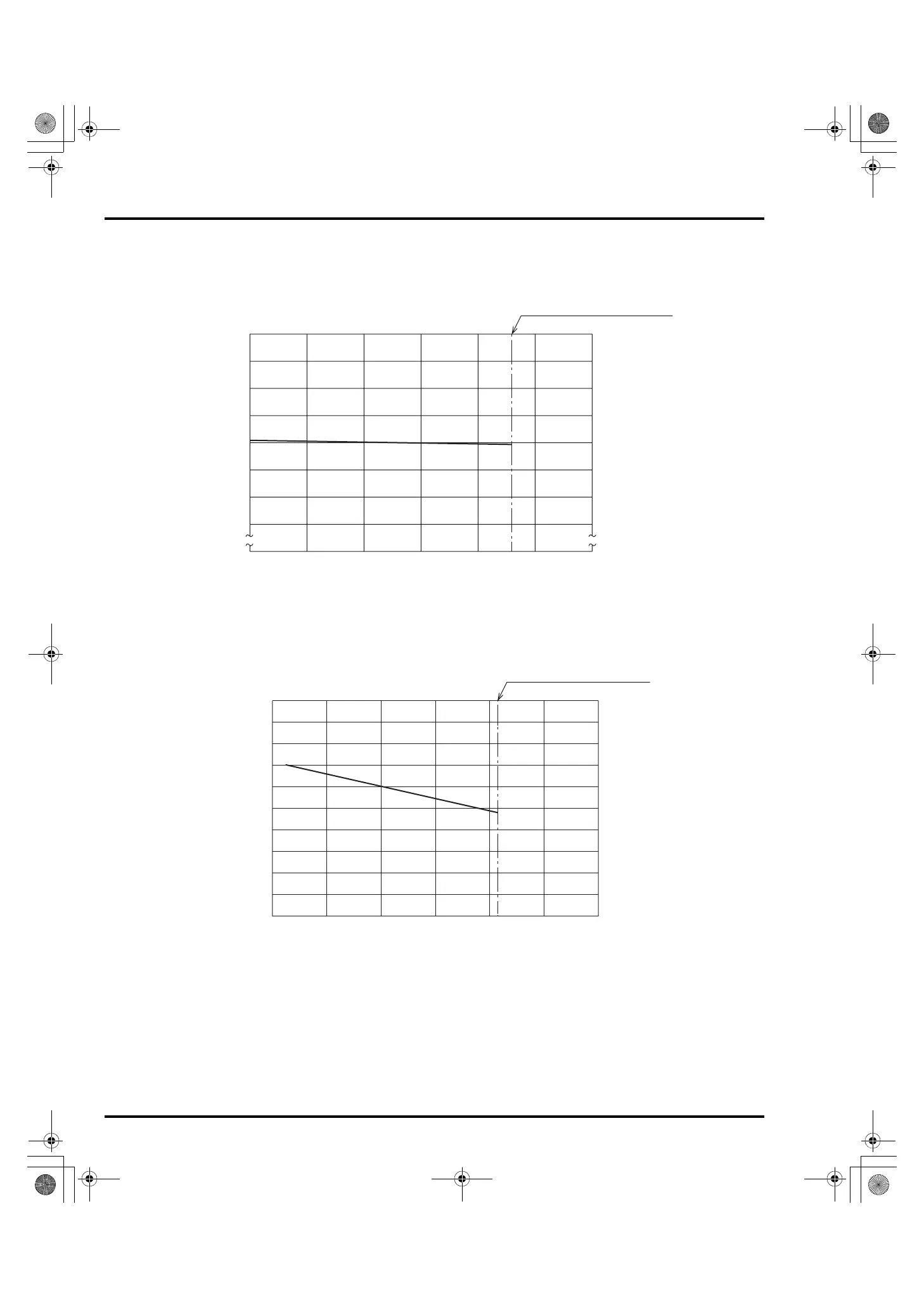

AC EXTERNAL CHARACTERISTIC CURVES
DC EXTERNAL CHARACTERISTIC CURVE
*This DC output characteristic was measured with the condition that condensers (200,000 μF) were parallel-connected.
250
230
240
220
200
210
0
51015202530
190
LOAD CURRENT (A)
AC OUTPUT VOLTAGE (V)
RATED CURRENT (22.7 A)
20
15
10
5
0
246810
LOAD CURRENT (A)
RATED CURRENT (8.3 A)
DC OUTPUT VOLTAGE (V)
