SERVICE INFORMATION
2-6

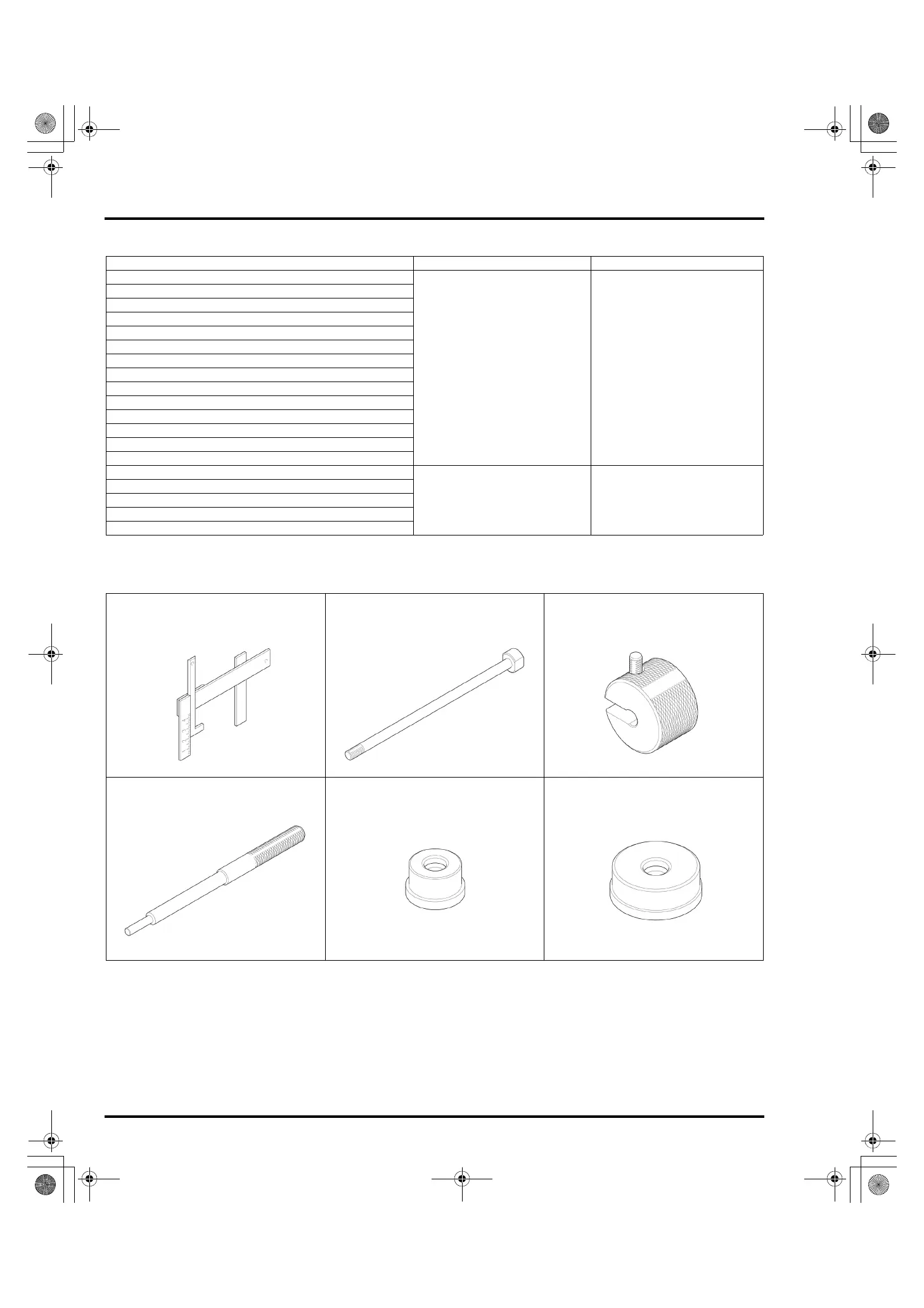

LUBRICATION & SEAL POINT
TOOLS
Location Material Remarks
Camshaft cam profile and journal Engine oil
Valve lifter stem, stem end and slipper
Valve stem sliding surface and stem end
Valve rocker arm tappet surface and pivot
Cylinder barrel inner surface
Piston outer surface
Piston rings
Piston pin outer surface
Crank pin and gears
Connecting rod big and small end
Balancer shaft gear and journal
Governor weight holder weight installation part and gear
Governor shaft
Governor arm shaft
Oil seal lip Multi-purpose grease
O-ring
Recoil starter case cutout
Recoil starter ratchet
Recoil starter spring retainer inside
Float level gauge
07401-0010000
Sliding shaft
07736-0010101
Remover weight
07741-0010201
Valve guide driver, 6.45 mm
07742-0010200
Attachment, 32 × 35 mm
07746-0010100
Attachment, 52 × 55 mm
07746-0010400
