SERVICE INFORMATION
2-21

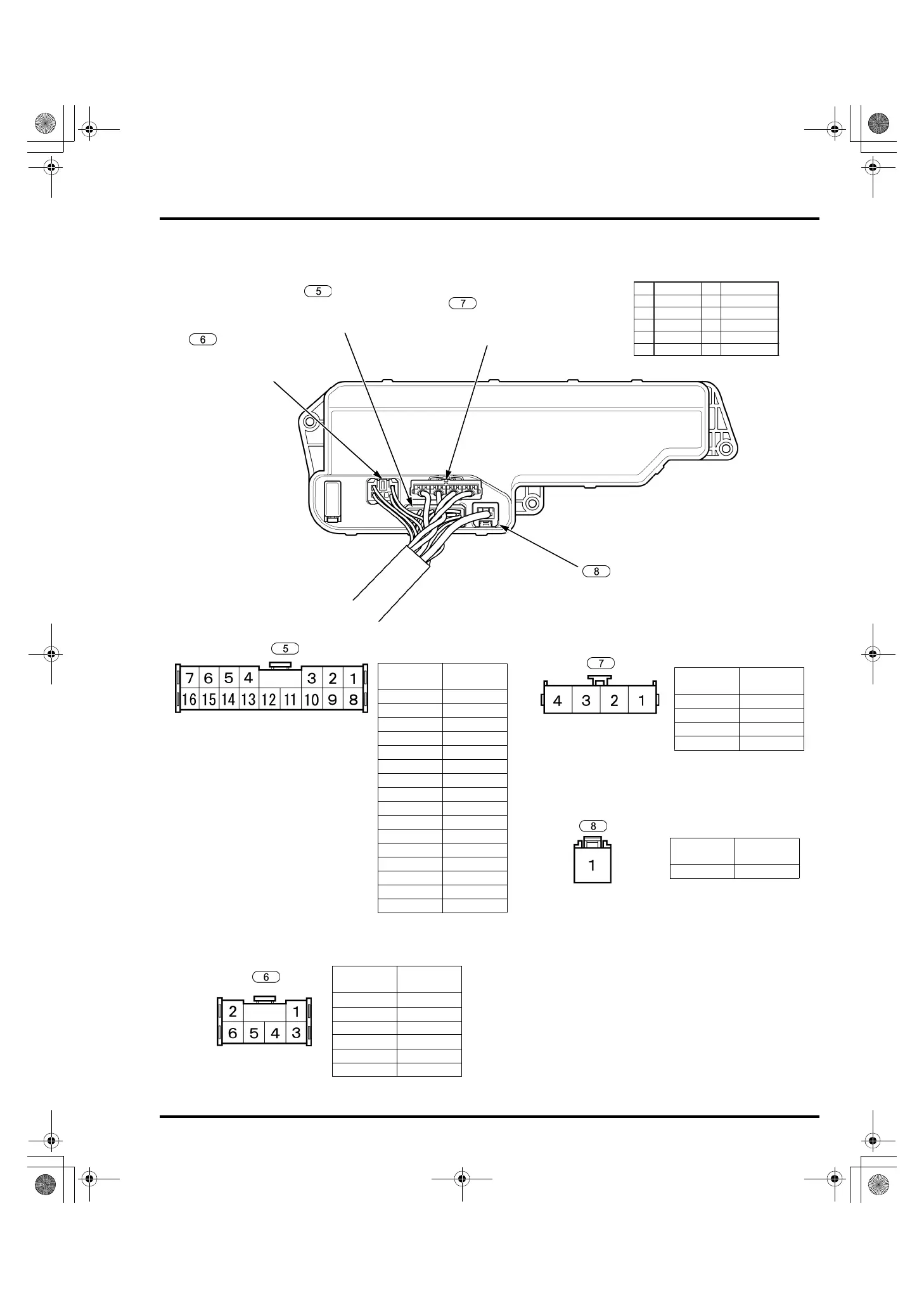

JUNCTION BOX/GENERATOR SIDE (CX-MH, UH, RH, KH, SH, SKH, RGH TYPE)
MAIN WIRE
HARNESS SIDE
Terminal
number
Wire color
1Bl
2Bl
3Bl/R
4Y
5Y
6–
7–
8W/R
9W
10 –
11 Lg
12 Bl/W
13 G/W
14 –
15 Gr
16 –
Terminal
number
Wire color
1R
2W
3Bu
4–
5–
6Bu
MAIN WIRE
HARNESS SIDE
MAIN WIRE
HARNESS SIDE
MAIN WIRE
HARNESS SIDE
Terminal
number
Wire color
1–
2Br
3W
4–
Terminal
number
Wire color
1Y/G
Bl Black Br Brown
Y Yellow O Orange
Bu Blue Lb Light blue
G Green Lg Light green
R Red P Pink
W White Gr Gray
JUNCTION BOX 6P
CONNECTOR
JUNCTION BOX 4P
CONNECTOR
JUNCTION BOX 16P
CONNECTOR
JUNCTION BOX 1P
CONNECTOR
