Honda EG5000CX - Page 77

SERVICE INFORMATION
2-46

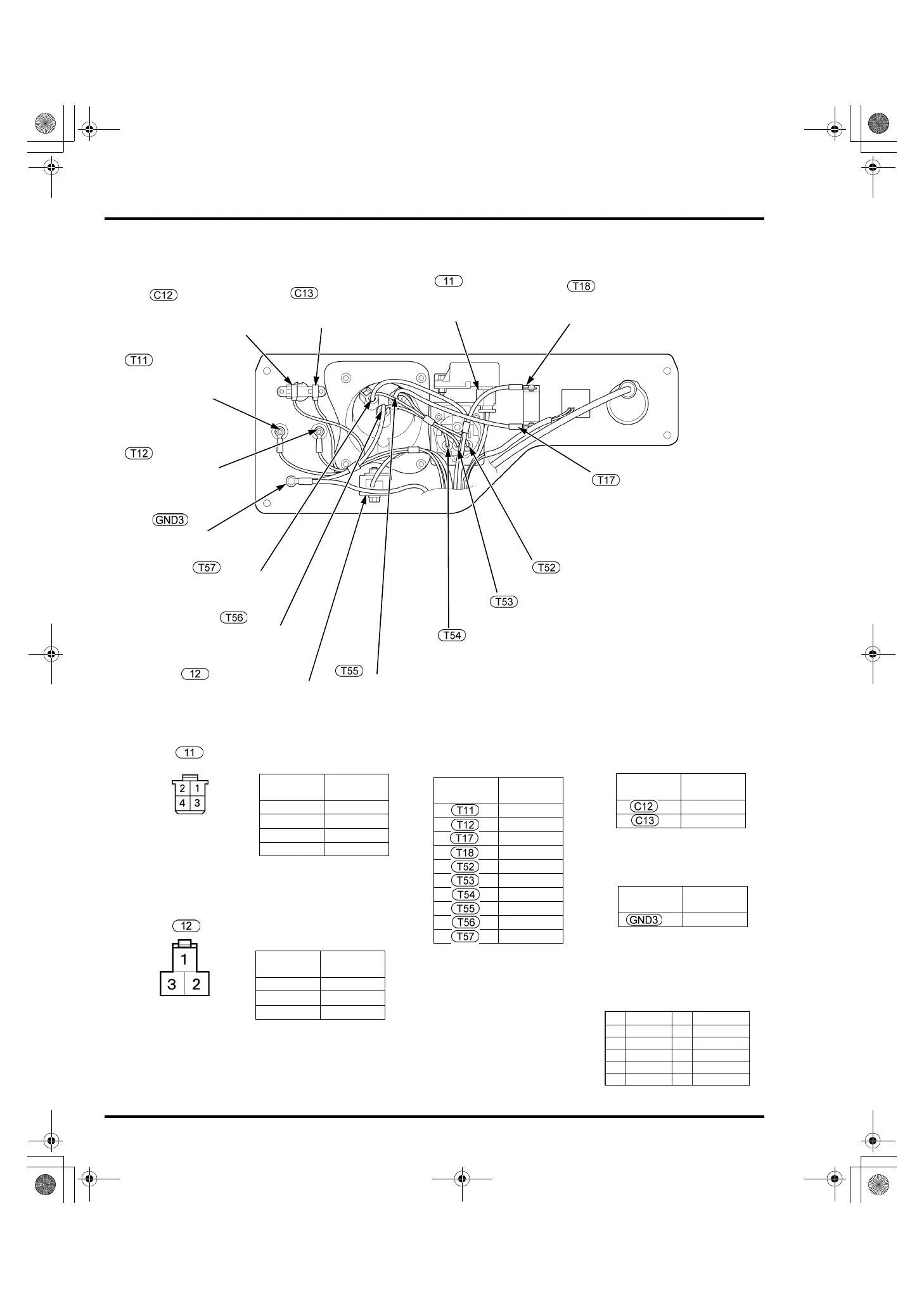

CONTROL PANEL SIDE (CXS-RGH TYPE)
DIODE 4P
CONNECTOR
REGULATOR/RECTIFIER
3P CONNECTOR
(–) DC OUTPUT
TERMINAL
CIRCUIT PROTECTOR
CONNECTOR
CIRCUIT PROTECTOR
CONNECTOR
GROUND
TERMINAL
MAIN WIRE
HARNESS SIDE
MAIN WIRE
HARNESS SIDE
Terminal
number
Wire color
1Bl/W
2Br
3Bu
4Y/G
Terminal
number
Wire color
1Br
2Y/G
3W
CIRCUIT BREAKER
TERMINAL
CIRCUIT BREAKER
TERMINAL (WHITE TAPE)
(+) DC OUTPUT
TERMINAL
Bl Black Br Brown
Y Yellow O Orange
Bu Blue Lb Light blue
G Green Lg Light green
R Red P Pink
W White Gr Gray
Terminal
number
Wire color
Y/G
Terminal
number
Wire color
W/R
W/R
Terminal
number
Wire color
W/R
Bl/R
R
R
W
Y/G
R
R
Y/G
W
RECEPTACLE
TERMINAL ([B] MARK)
RECEPTACLE
TERMINAL ([B] MARK)
RECEPTACLE
TERMINAL ([B] MARK)
RECEPTACLE
TERMINAL
RECEPTACLE
TERMINAL
RECEPTACLE
TERMINAL
