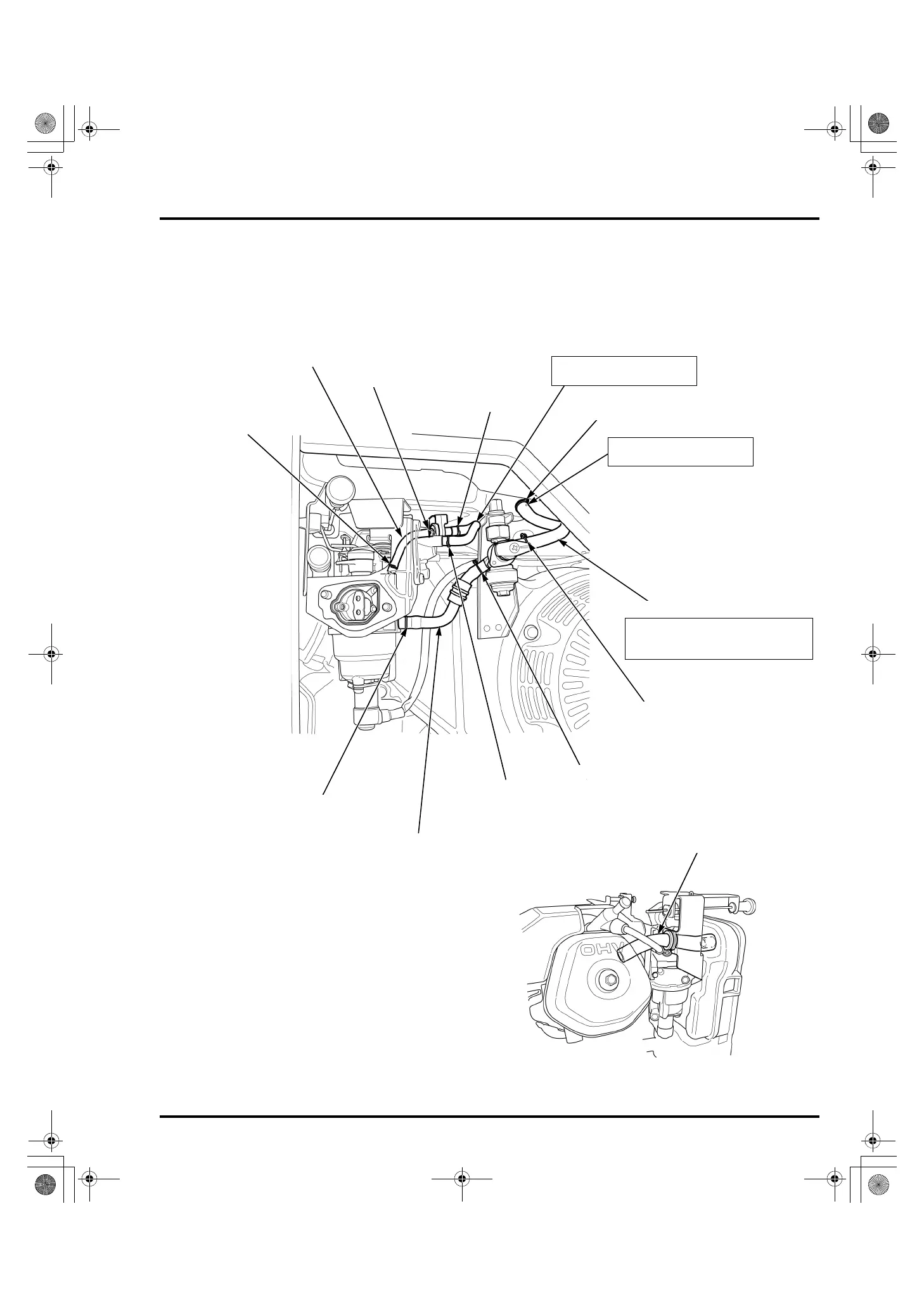

TUBE ROUTING
CRANKCASE
BREATHER TUBE
TUBE CLIP B7
TUBE CLIP B7
TUBE CLIP B8
TUBE CLIP C9
TUBE CLIP B10
TUBE CLIP C12
TUBE CLIP B7
TUBE CLIP B7
FUEL TANK TUBE
FUEL TUBE
EG4500/EG5000/EG5500/EG6500: TUBE (3.5 x 75 mm)
EG3600/EG4000: TUBE (3.5 x 65 mm)
DIAPHRAGM TUBE
The marked side of fuel tank
tube is facing up.
Route the diaphragm tube
over the governor rod.
Take the clearance more than 10 mm
(0.4 in) between the tube and
governor rod.
