Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Testthelightstomakesurethe
new bulb is working.
When reinstalling the taillight
assembly, first place the two pins
in the holes in place. Tighten the
two mounting bolts.
Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.

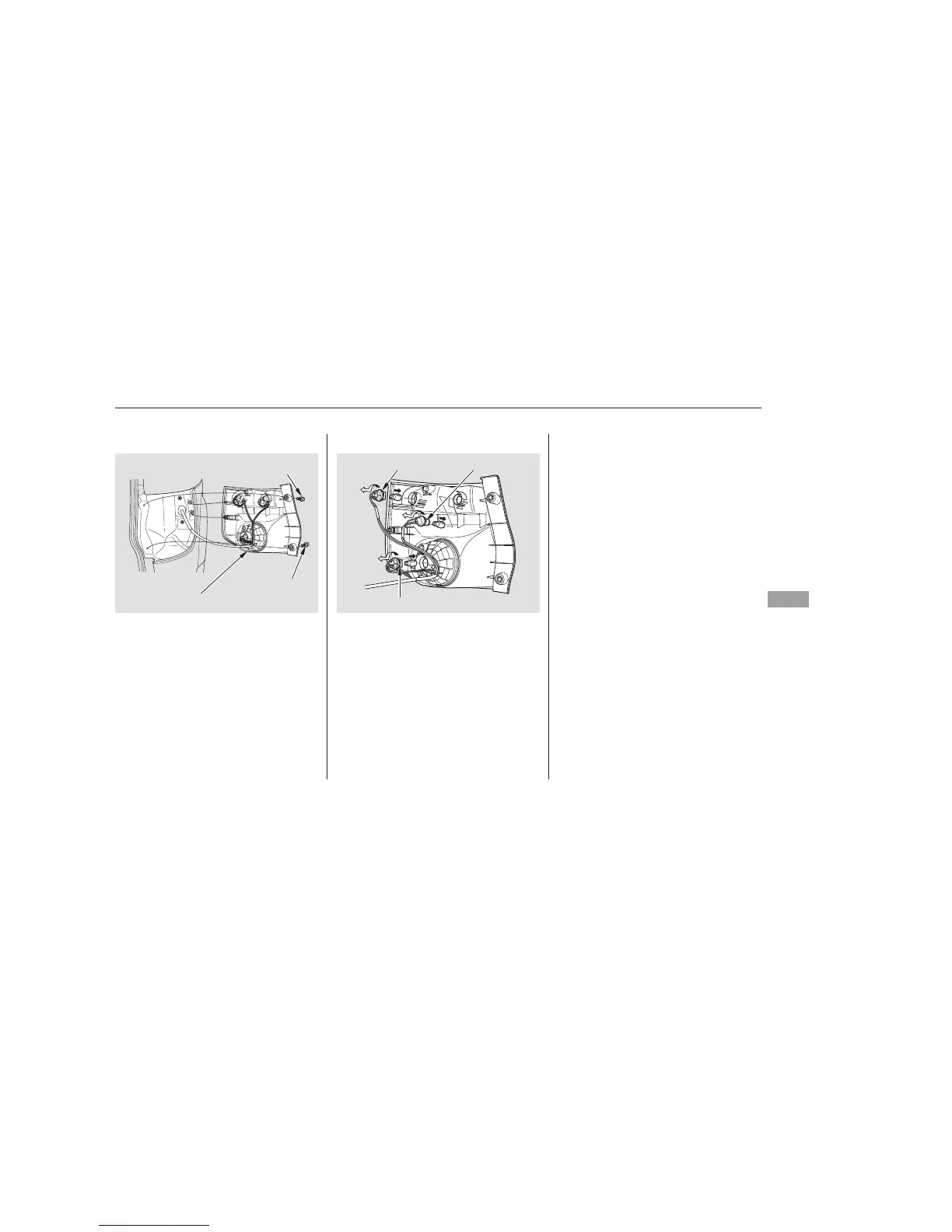

Open the hatch and the tailgate.
Remove the two mounting screws
with a Phillips-head screwdriver,
and remove the taillight assembly
from the body by pulling it back.
Determine which of the three
bulbs is burned out: brake/
taillight, turn signal light or back-
up light.
6.
7.
5.
3.
4.
1.
2.
Lights
Replacing Rear Bulbs
Maintenance
203
SOCKET
SOCKET
SOCKET
SCREW
SCREW
TAILLIGHT ASSEMBLY
