8
HONDA EX4D/5D (E) 36ZC8625 -8-
AC circuit protector or
breaker:
Switch ON for AC power. The AC circuit protector or breaker will
automatically switch OFF if the circuit is more than 20%
overloaded.
Pilot lamp: Lights when the engine is running and goes off when the engine
is stopped.
Engine switch: Starts and stops the generator.
Hour meter: The numbers on the hour meter indicate the total hours operated.
This is your guide for determining when maintenance is due.
Volt meter: Indicates the generated voltage of the generator.
Voltage adjustment
knob:
Use the voltmeter adjustment knob to adjust the generated
voltage of the generator.
Oil alert lamp: Lights when the engine oil level is low or engine lubrication
system is faulty.
The engine automatically stops if the battery is removed while
the engine is running.

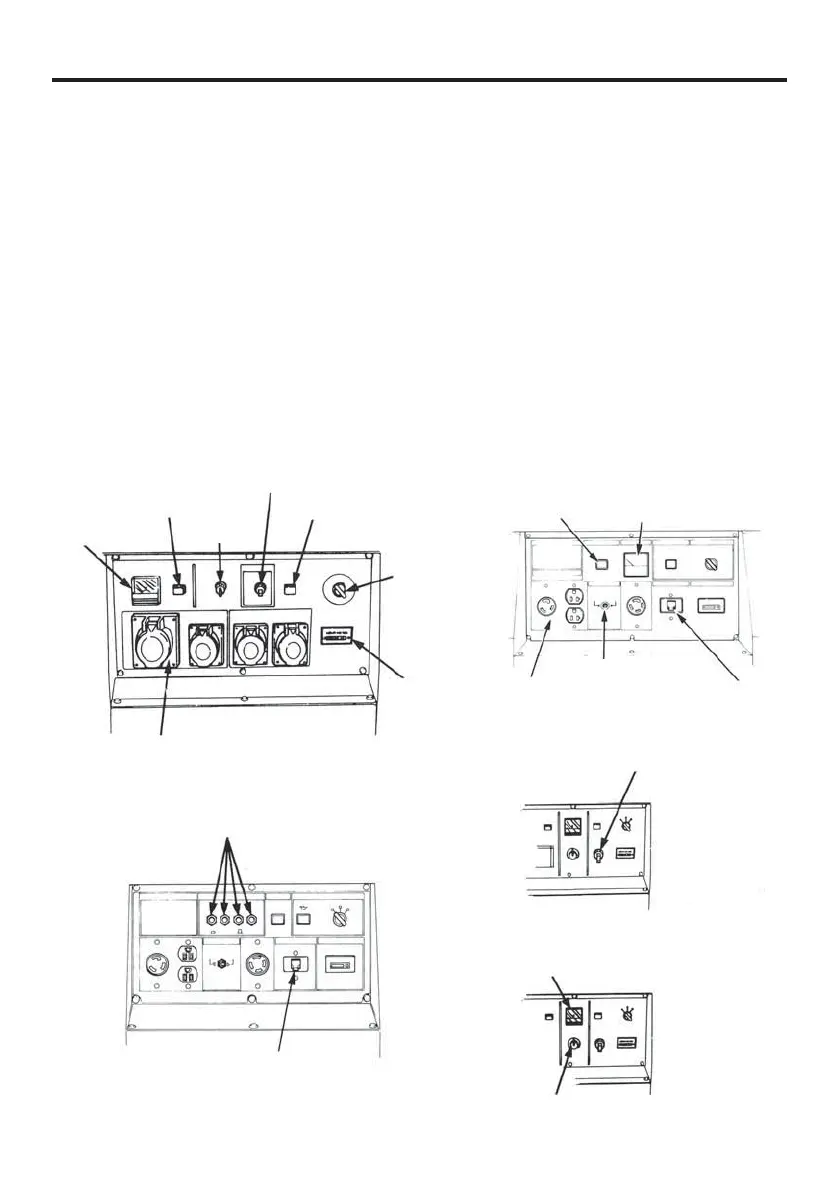

AC CIRCUIT PROTECTOR OR BREAKER
PILOT LAMP
VOLTAGE
SELECTOR
OIL ALERT LAMP
ENGINE
SWITCH
HOURMETER
AC RECEPTACLES
VOLTMETER
AC RECEPTACLES
VOLTAGE SELECTOR
AC CIRCUIT
PROTECTOR
OR BREAKER
VOLTMETER
PILOT LAMP
CIRCUIT PROTECTOR
AC CIRCUIT BREAKER
VOLTMETER
VOLTAGE ADJUSTMENT KNOB
AC CIRCUIT PROTECTOR OR BREAKER
B Type
L Type
GV Type
C Type
F Type
