26

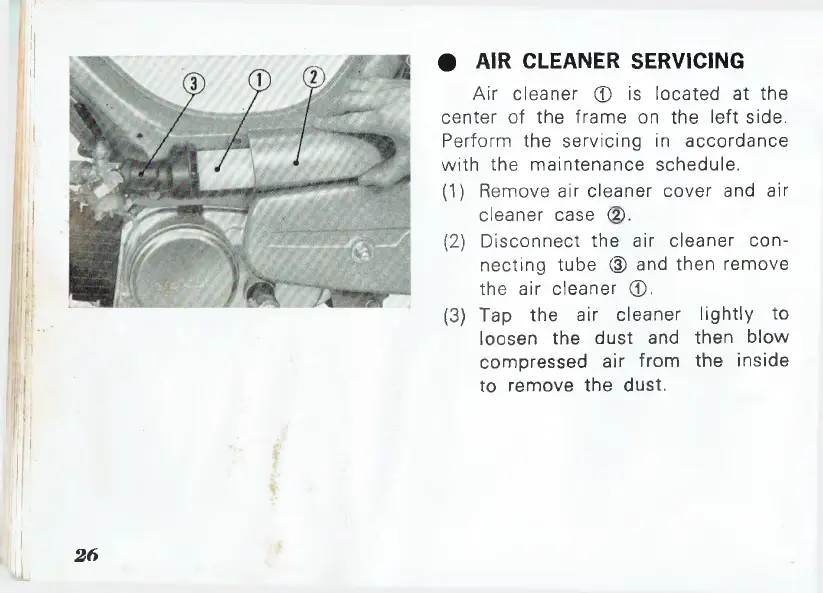

• AIR CLEANER SERVICING
Air cleaner © is located at the
center of the frame on the left side.
Perform the servicing in accordance
with the maintenance schedule.
(1) Remove air cleaner cover and air
cleaner case (2).
(2) Disconnect the air cleaner con
necting tube (D and then remove
the air cleaner ©.
(3) Tap the air cleaner lightly to
loosen the dust and then blow
compressed air from the inside
to remove the dust.
