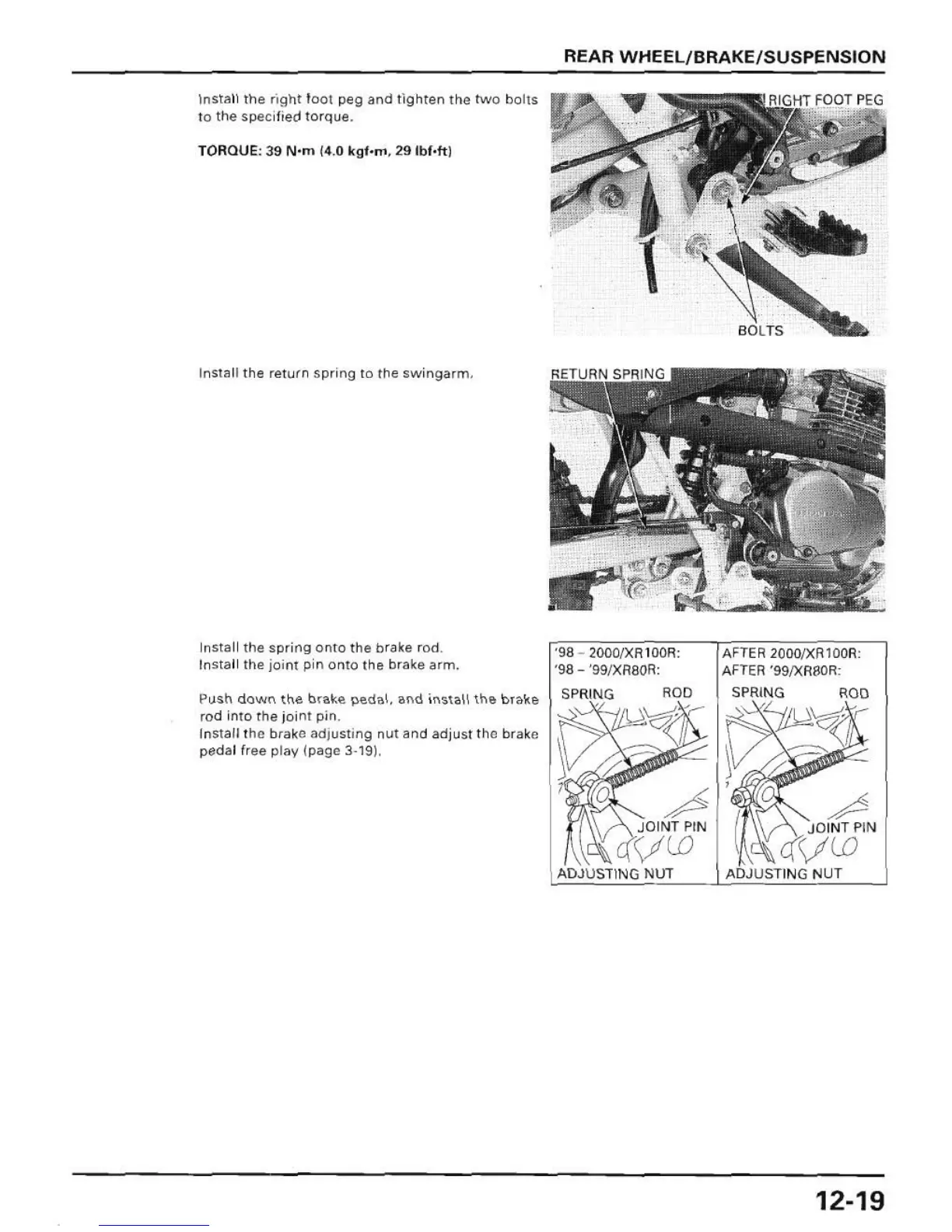

Honda XR80R Service Manual

Ins tall th e right lo ot peg and lig hten the two bolts
10 the speci fied torque.
TOR QUE: 39 N·n, (4.0 kgf-m. 29 lbf-ft l
In
STall the relurn spring to the swingarm.
Install the spring onto the brake rod .
In51a ll the j oint pin onto the brake arm.
Pl)sh dow" th e bra \; e peda l. ,md in stal l the bmke
rod into the j oint pin.
Install the brake ildjusting nut and adjusl the brake
peda l free pl ily (page 3 ·1 9).
REAR WHEEL/ BRAKE/ SUSPENSION
'98 - 2000/XR I OOR:
'98 - ·99/XR80R:
SPRING
ADJUSTING NUT
AFTER 2000/XA100R:
AFTER ·99/XA80R:
~
JOINT PIN
C(V
W
ADJUSTING NUT
12-19

Honda XR80R Specifications

General

Displacement	79cc
Compression Ratio	9.7:1
Fuel System	Carburetor
Ignition	CDI
Transmission	5-speed
Final Drive	Chain
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-16
Rear Tire	3.00-14
Ground Clearance	9.1 inches
Engine Type	Air-cooled single-cylinder four-stroke
Bore x Stroke	47.5mm x 45mm
Rear Suspension	Single shock
