Honeywell Home 5800MINI User Manual

PROGRAMMING
Refer to the control panel’s installation instructions for programming and enrolling the
5800MINI.
1. Enter Programming mode at the control. Assign a zone
number to loop 1 and assign as Input Type 3 (Supervised
RF).
2. To enroll the serial number, activate the transmitter twice
by moving the magnet close to and away from the
module.
Alternatively, enter the device serial number manually
when prompted.

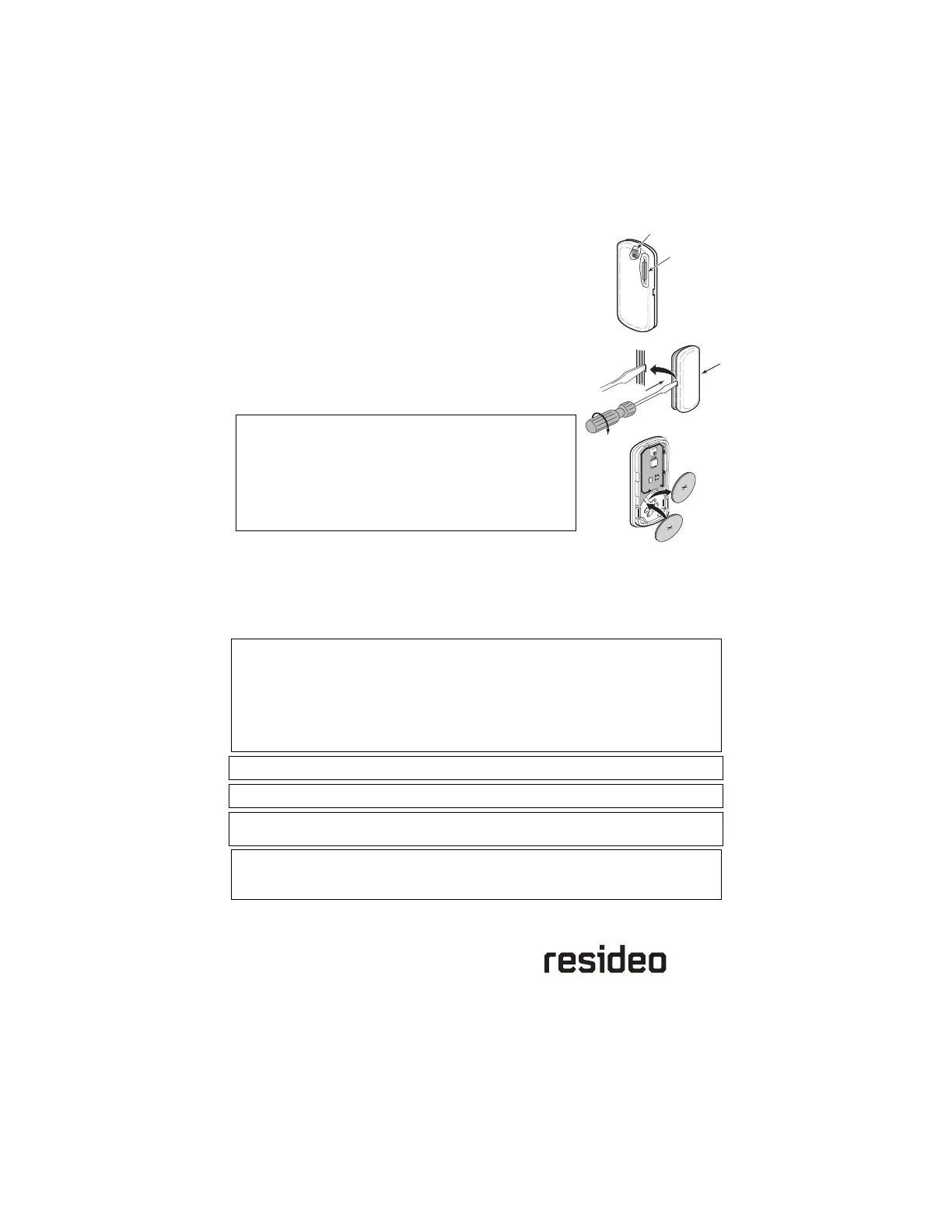

BATTERY REPLACEMENT
1. Open the cover and remove the old battery.
2. Install a fresh battery with +
++
+ side UP. See Specifications
section for compatible batteries.
3. Replace the cover.
BATTERY CAUTION: Risk of fire, explosion and burns. Do
not recharge, disassemble, heat above 212°F (100°C), or
incinerate. Dispose of used batteries properly. Keep away
from children.
Attention de batterie: Risque d'incendie, d'explosion et de
brûlures. Ne rechargez pas, démonter, chauffer au-dessus de
212° F (100°C), ou incinérer. Débarrassez-vous des batteries
utilisées de façon appropriée. Gardez à partir des enfants.
SPECIFICATIONS
LOOP 4
(TAMPER)
LOOP 1
(REED)
5800MIMI-002-V0
5800MIMI-005-V0
Dimensions:
Transmitter: 1” (25.4mm) x 2.2” (55.9mm) x 0.25” (6.4mm)
Magnet: 0.25” (6.35mm) x 0.25” (6.35mm) x 1” (25.4mm)
Operating Conditions:
32°F (0°C) to 120°F (50°C)
Relative Humidity 95%, (non-condensing); UL Tested at 85%
Magnet Gap:
1” (25.4mm) max.
Battery:
3VDC, 225mAh, Lithium Coin Cell; Panasonic CR2032
FEDERAL COMMUNICATION
S COMMISSION STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or
User Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment
FCC/IC STATEMENT
This device complies with Part 15 of the FCC Rules, and Industry Canada’s license-exempt RSSs. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference
received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC et exempt de licence RSS d’Industrie Canada. Son
fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d' interférences nuisibles. (2) Cet
appareil doit accepter toute interférence reçue y compris les interférences causant une réception indésirable.
Responsible Party / Issuer of Supplier’s Declaration of Conformity: Ademco Inc., a subsidiary of Resideo Technologies, Inc., 2
Corporate Center Drive., Melville, NY 11747, Ph: 516-577-2000.
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL WITH WHICH THIS DEVICE IS USED FOR
DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
The product should not be disposed of with other household waste. Check for the nearest authorized collection centers or
authorized recyclers. The correct disposal of end-of-life equipment will help prevent potential negative consequences for the
environment and human health.
SUPPORT & WARRANTY
For the latest documentation and online support information, please go to: www.resideo.com
For the latest warranty information, please go to: https://www.security.honeywellhome.com/warranty
The Honeywell Home Trademark is used under license from Honeywell International Inc
This product manufactured by Resideo Technologies and its affiliates.
.
Ê800-22088D†Š
800-22088D 6/16 Rev D
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
 2020 Resideo Technologies, Inc.
www.resideo.com
