Power Supply Wiring

WARNINGS:

• Draws 16 VA, do load calculation to determine if a separate transformer is needed.

• Systems with high 24 VAC loads may require the installation of a separate 24 VAC

transformer to power the UV light.

• Always use a separate 24 VAC transformer with “communicating” air systems.

M34605

NOTE: IMPORTANT! MUST BE WIRED TO CONSTANT POWER. DO NOT CONNECT TO

BLOWER RELAY.

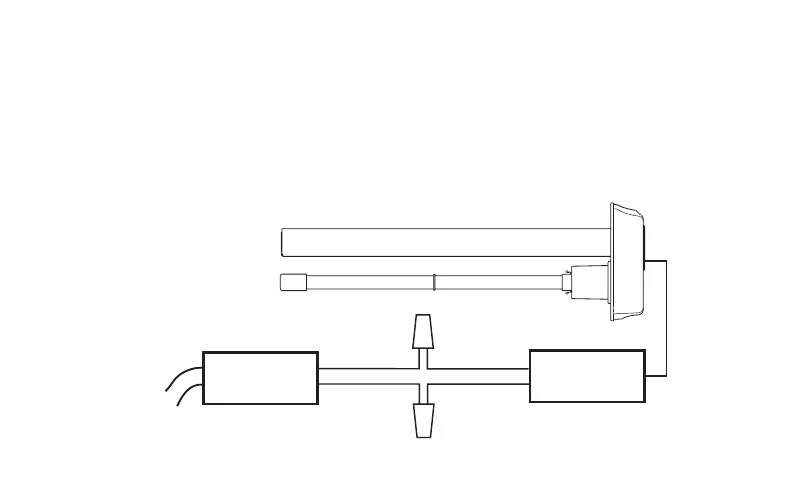

24 VAC

TRANSFORMER

BALLAST

24 VAC

COMMON

HOT

BLACK

RED

CONST

ANT

110V
