CHAPTER 2 - SYSTEM DESCRIPTION

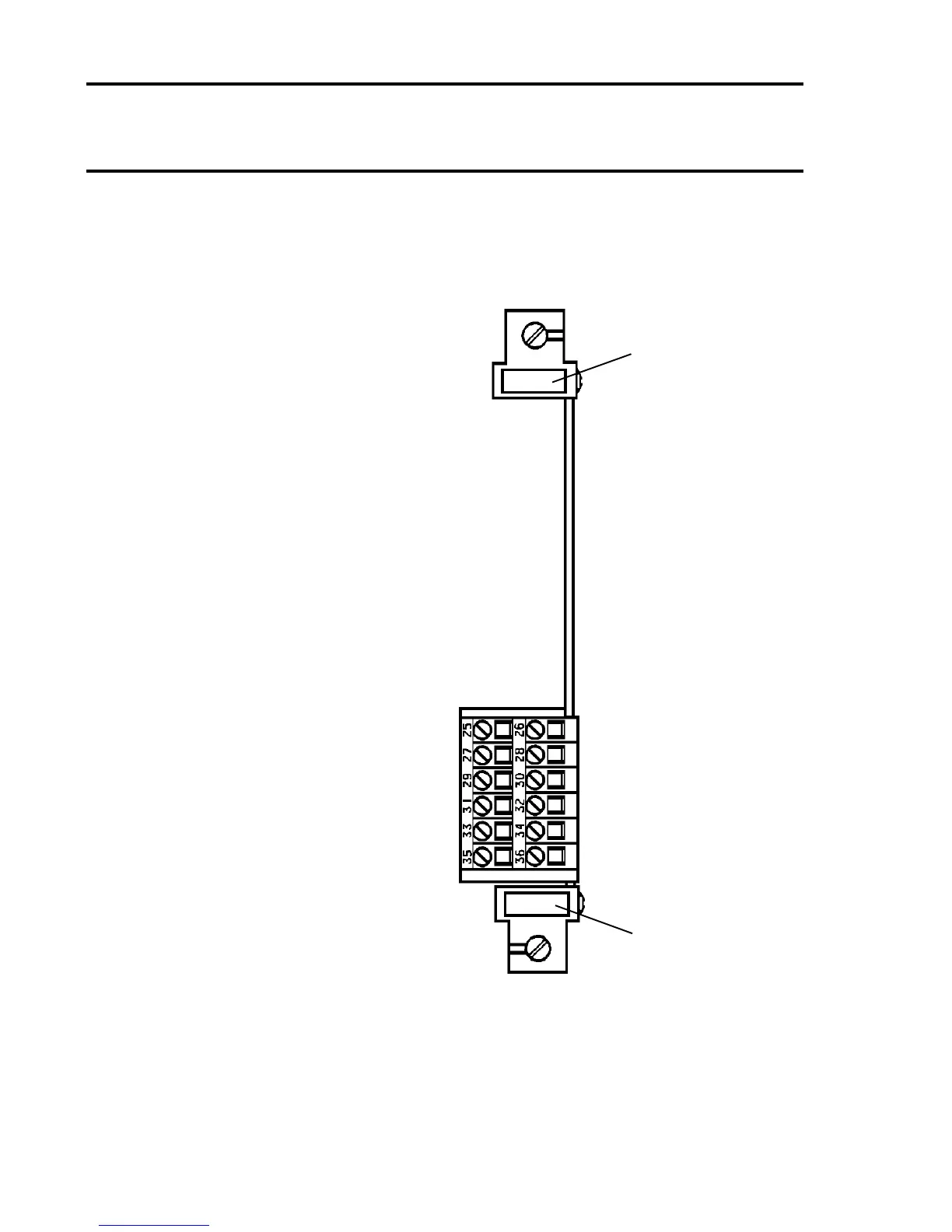

5.2.2 Rear Access Connections
26 Ground
28 Sensor 01 Connection
30 Not Connected
32 Analogue O/P (-)
34 Remote Reset In
36 0V (Out/In)
Ground 25
Sensor S Connection 27
Sensor NS Connection 29
Analogue O/P (+) 31
Remote Inhibit In 33
+24V (Out/In) 35
User
Terminal
Reference
Slot
Location
