Honeywell DC33XB - Figure 2-12 Position Proportional Output or Three Position Step-Models

Installation
12/00 UDC3300 Basic Model: DC33XB User Manual 13
Position Proportional Output

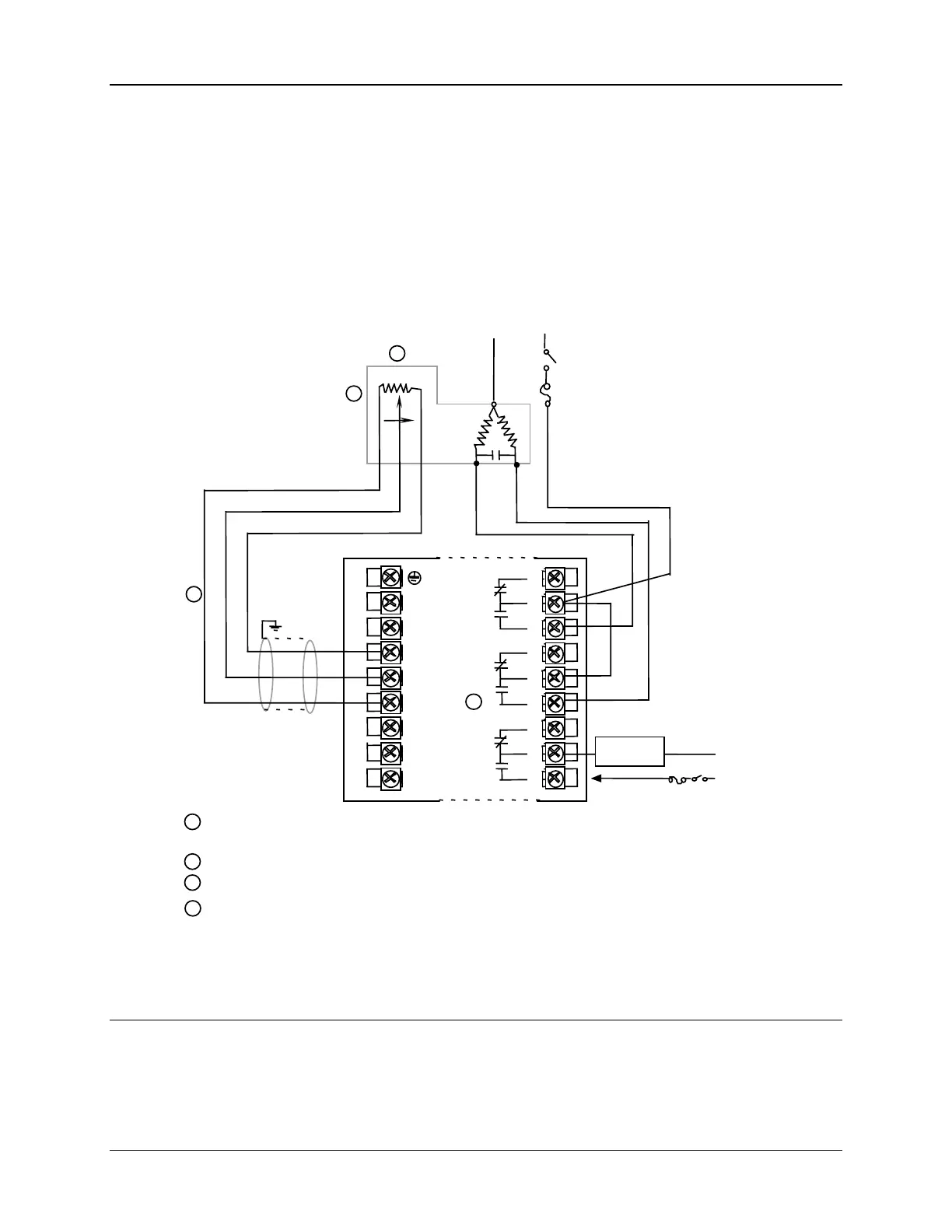

Figure 2-12 shows models with Position Proportional Output (Model
DC330X-EE-XXX-X2) or Three Position Step Control (Model DC330X-AA-XXX-X2).
Calibration
Position Proportional Output models must have the output calibrated after
installation. (See Appendix D.)
Three Position Step models only require that the motor time be entered. Full
calibration is not required.
L1
L2/N
22
23
24
25
26
27
Slidewire 100 to 1000
Ω
mechanically linked
to motor
Connect shield to ground
at one end only
Neutral Hot
Motor Power
Supply
Op
en
Cl
os
ed
To terminal
7 or 9
Op
en
Alarm
Relay#1
Output
Relay#1
Output
Relay#2
N.C.
N.C.
N.O.
N.O.
N.C.
N.O.
Cl
os
ed
Wi
pe
2
1
1
2
3
Alarm #2 is not available with Position Proportional output or Three
Position Step control.
Do not run slidewire cable in the same conduit as AC power.
Electrical noise suppression may be required.
Slidewire input is not required for Three Position Step control but can be
used for motor position indication.
4
3
4
Alarm Relay
#1 Load
Load
Supply
Power
5 Amp Fast Blo
fuse
5 Amp Fast Blo
fuse
1
2
3
4
5
6
7
8
9
Figure 2-12 Position Proportional Output or Three Position Step—
Models DC330X-EE-XXX-X2, DC330X-AA-XXX-X2
