Installation

12/00 UDC3300 Basic Model: DC33XB User Manual 15

Communications Option

The Communications option is available for RS422/485/ASCII or Modbus (Model

DC330X-XX-1XX or DC330X-XX-5XX)—refer to Figure 2-15.

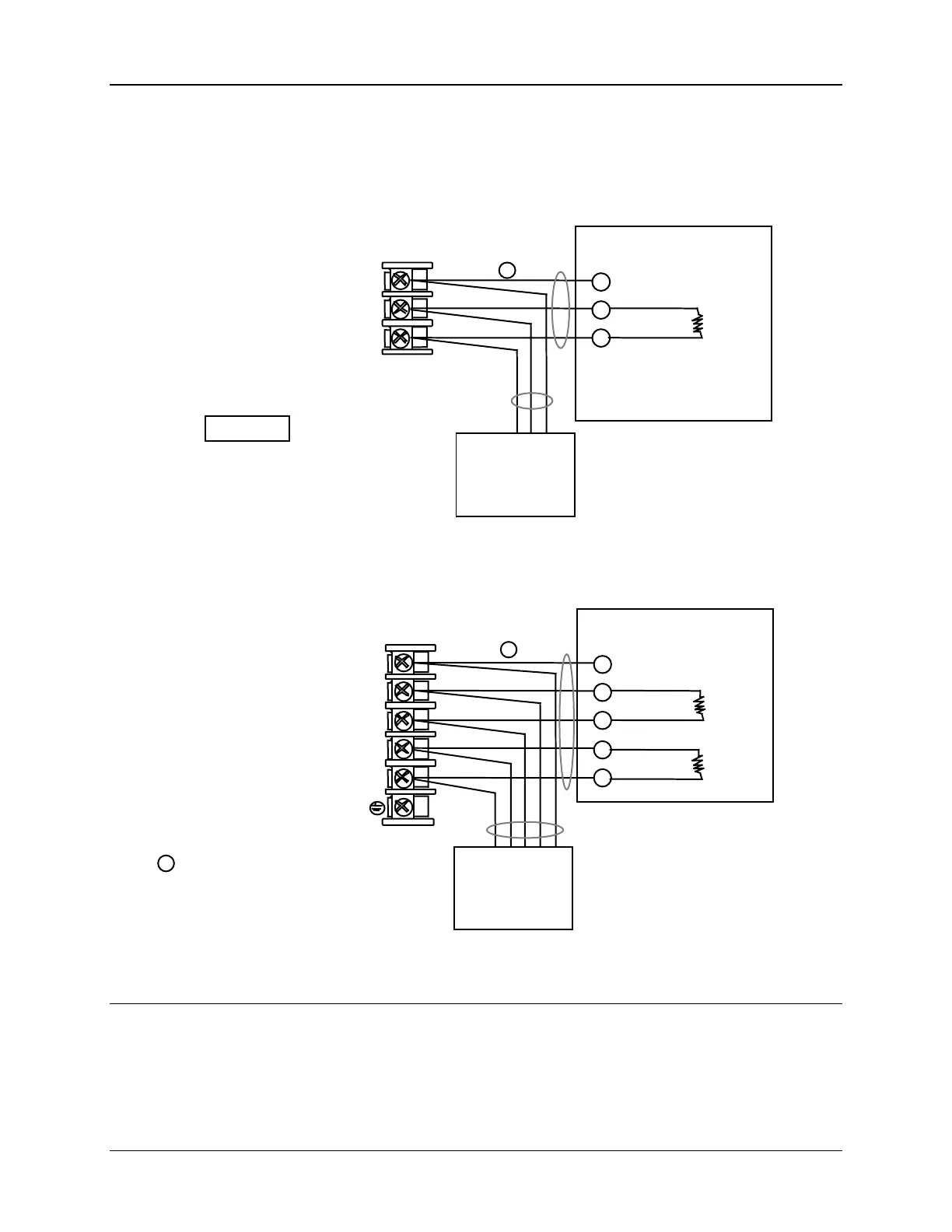

Figure 2-15 RS422/485/ASCII or Modbus Communications Option Connections

Master

TX+

SHD

TX–

RX+

RX–

Do not mix half and

full duplex wiring.

Do not run these lines in

the same conduit as AC

power

CAUTION

Master

TX–/RX–

SHD

TX+/RX+

ASCII or MODBUS

RS422/485

HALF DUPLEX

To Other

Communication

Instruments

(maximum 31)

SHD

TX+/RX+

TX–/RX–

ASCII

RS422/485

FULL DUPLEX

RX+

SHD

RX–

TX+

TX–

120 Ohm

Resistor

To Other

Communication

Instruments

(maximum 31)

120 Ohm Resistor

on Last Leg

120 Ohm

Resistor

120 Ohm

Resistor

120 Ohm Resistor

on Last Leg

Use shielded twisted pair

cables (Belden 9271

Twinax or equivalent)
