2 Equipment Description
2.20 24 Vdc Fuse Protection
R688
HPM High-Performance Process Manager Service
109
December 2020
Honeywell
Right 7-Slot card file b
ackpanel fuse locations

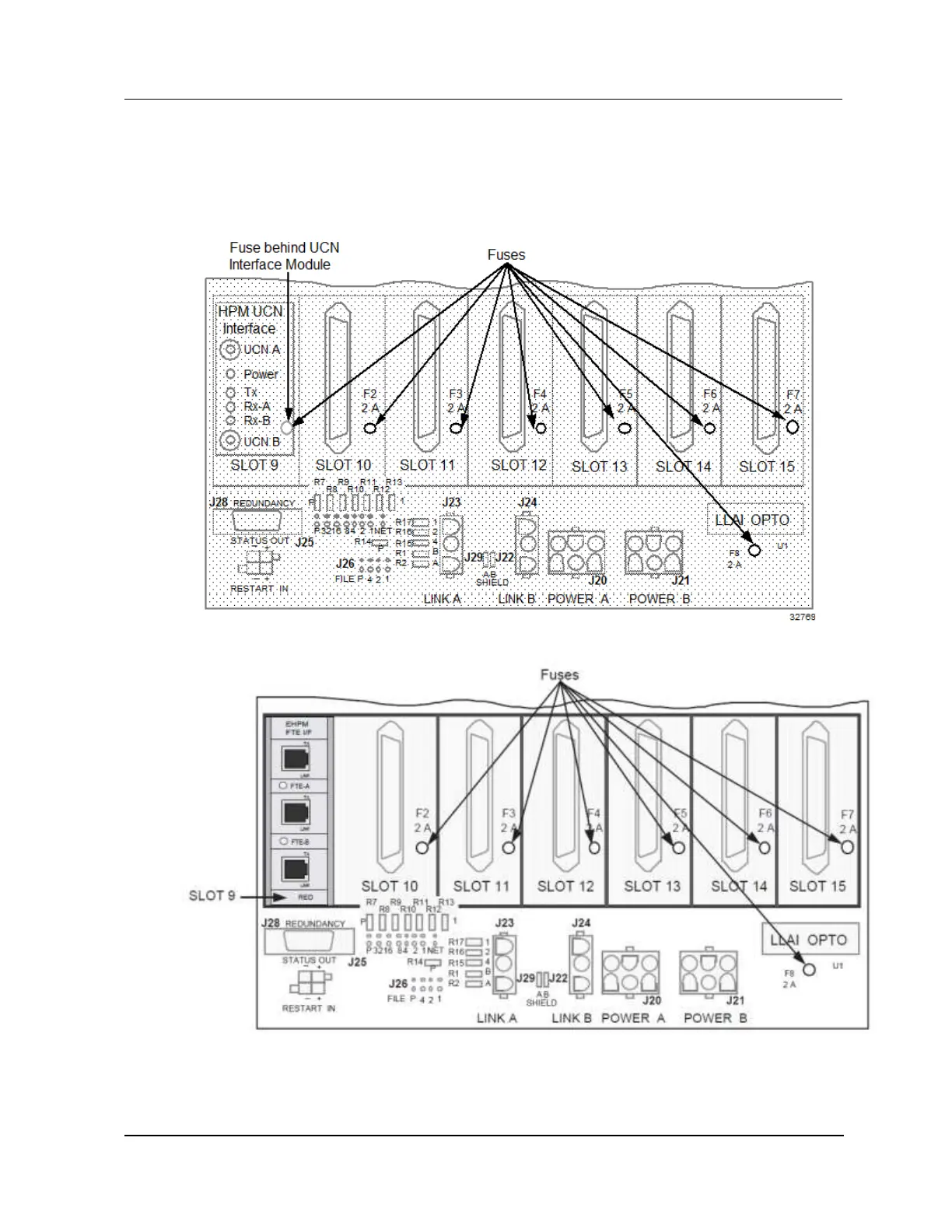

The following figure illustrate
s the locations of the indi
vidual fuses on the Right 7
-Slot
ca
rd file
backpanel.
Figure
42
Right 7-Slot Car
d File Backpanel Fuse Location
s
Figure
43
Right 7-Slot Ca
rd File Backpanel Fuse L
ocations for EHPM
108
110
