MeshGuard LEL IR & CO2 IR User’s Guide
11

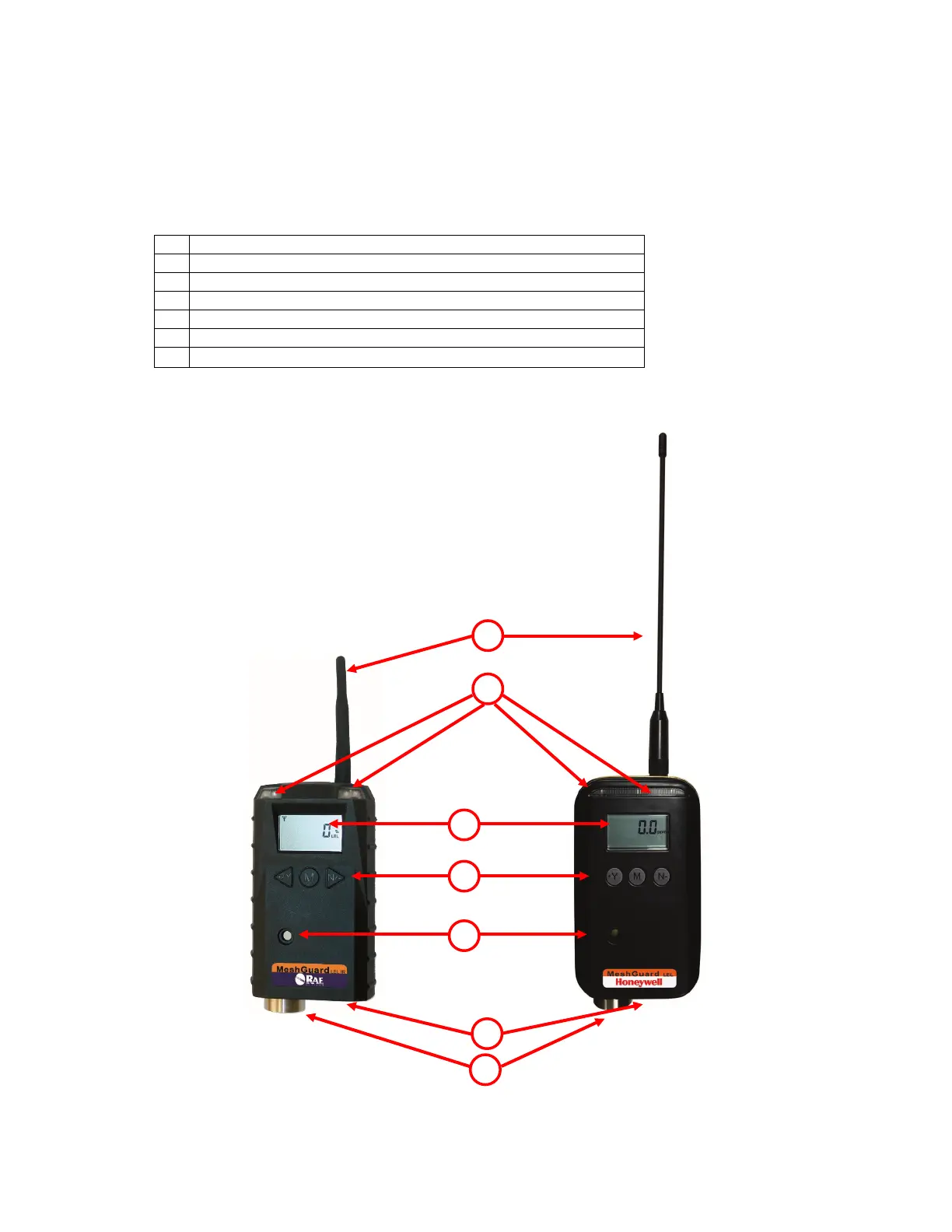

3. Physical Description
Note: The physical appearance of the MeshGuard LEL IR and MeshGuard CO2 IR is virtually
identical. Both are available in a metal enclosure or a plastic enclosure. Functionality is identical,
regardless of the enclosure.
1
LED alarm
2
LCD (with backlighting)
3
Buzzer alarm
4
Sensor gas inlet
5
Battery cover (on bottom)
6
Y/+, MODE, and N/- keys
7
Antenna
7
1
2
3
5
5
Plastic Housing
Metal Housing
4

Honeywell MeshGuard LEL IR Specifications

General

Brand	Honeywell
Model	MeshGuard LEL IR
Category	Security Sensors
Language	English
