ASSEMBLY INSTRUCTIONS

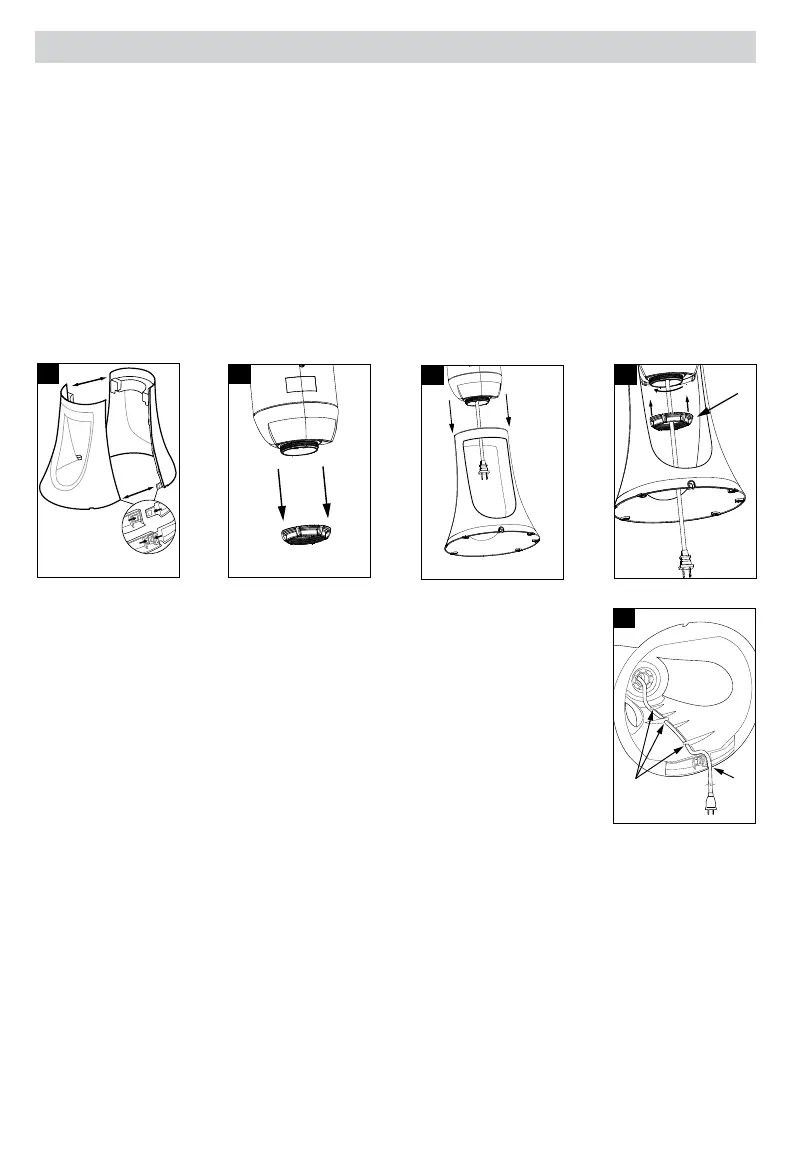

A. Base assembly
• Align the front and back base pieces and gently push until pieces snap securely together (Fig. 3).
B. Securing the Tower Fan to the Base
• At the base of the housing, remove the locking nut and set aside (Fig. 4).
• Carefully lift the fan housing (Fig. 5) and place the power cord through the center of the base.
• Lower the fan housing into the base (Fig. 5), align the back of the fan with the back of the base. Gently
rotate the fan housing until it is seated in the base.
• Take the locking nut and place power cord through the locking nut bringing locking nut up
inside the base, (Fig. 6) screw the locking nut onto the fan housing turning clockwise until
fully tightened and an audible ratcheting is heard.
C. Securing the Cord inside the Base
• Gently place the fan on its side, pressing the cord securely into cord
guides (Fig. 7A) along the inside of fan base, exiting through the notched
opening (Fig. 7B) ensuring a flat and stable base for the fan.
• Return the tower fan to its upright position.
NOTE: DO NOT operate the tower fan unless it is in its proper, upright position.
