RedLINK
TM
Installation Guide (EIM)
69-2091EFS—07 12

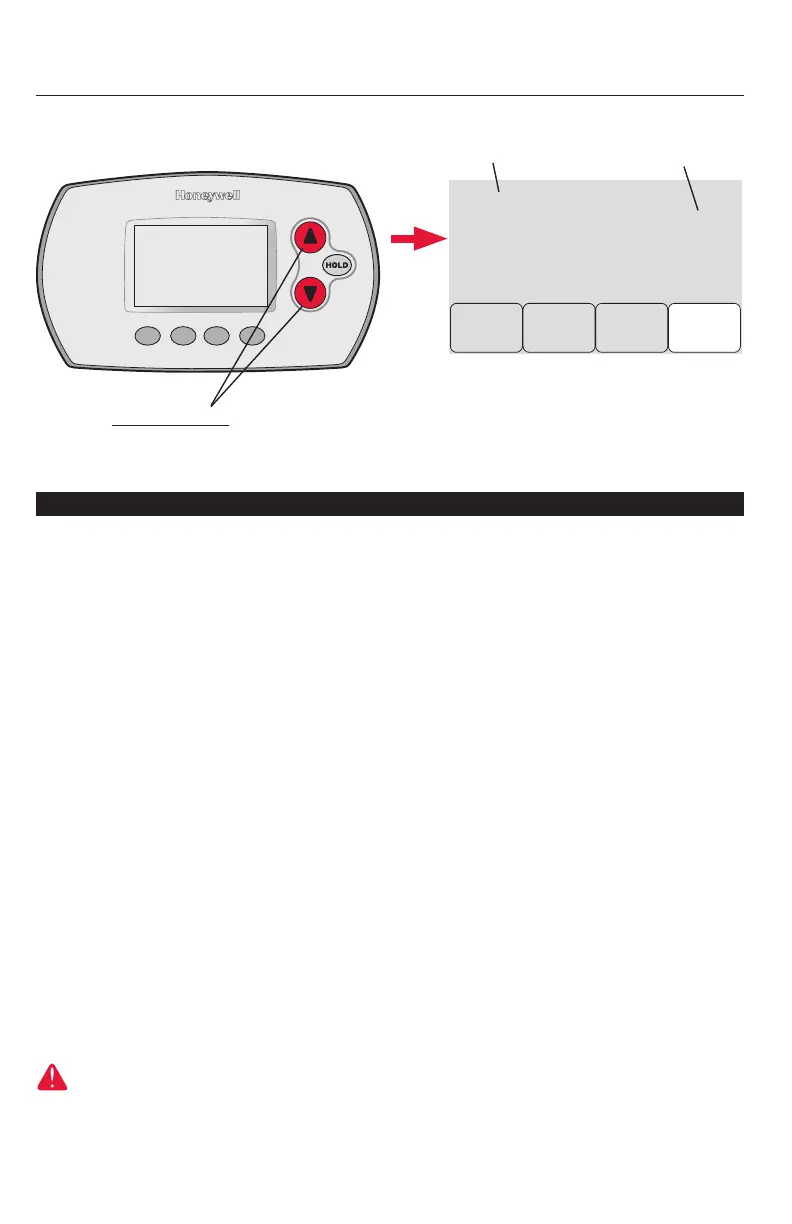

System test
Follow the procedure below to test for proper operation.
M28488
To begin, press and hold the s and t buttons
until the display changes (about 3 seconds).
Press s or t to check system status
Press NEXT to advance to next test
Press DONE to terminate system test
M28489
02
0
Next
Back
Done
System test number System status
System test System status
02 Wireless test
0 Off
1 Test radio signal (after a brief pause, screen displays 1-10 to show
signal strength; 5 or higher recommended)
04 Return air sensor
Screen displays return air temperature if device is installed and
working properly
10 Heating system
0 Heat and fan turn off.
1 Heat turns on
2 Stage 2 heat turns on
3 Stage 3 heat turns on
20 Emergency heating
system
0 Heat and fan turn off
1 Heat and fan turn on
30 Cooling system
0 Compressor and fan turn off
1 Compressor and fan turn on
2 Stage 2 compressor turns on
40 Fan system
0 Fan turns off
1 Fan turns on
70 Thermostat information
(for reference only)
71 Software revision number (major revisions)
72 Software revision number (minor revisions)
73 Configuration identification code (major)
74 Configuration identification code (minor)
75 Production configuration date code (week)
76 Production configuration date code (year)
CAUTION: EQUIPMENT DAMAGE HAZARD. Compressor protection (minimum
off time) is bypassed during testing. To prevent equipment damage, avoid cycling
the compressor quickly.
