2.4 5895XL Board and Terminal Strip Description

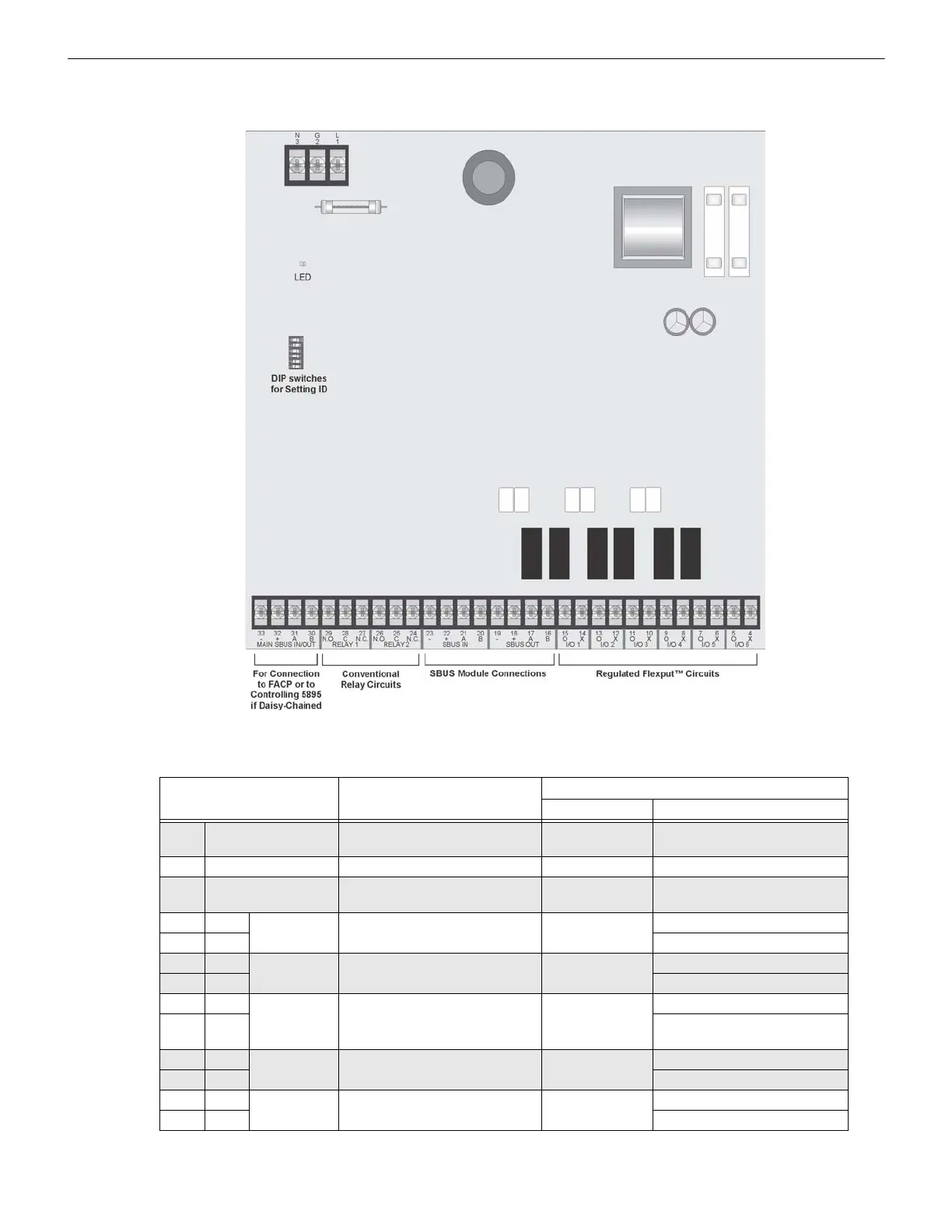

Figure 2.3 shows the 5895XL circuit board including location of terminals, the DIP switch for setting module ID, and the LED.
Figure 2.3 The 5895XL Board Layout
Table 2.1 : Terminal Strip Description and Electrical Ratings
Terminal # and Label Description
Rating
Voltage Current
1 L AC input (hot) 120/240 VAC,
50/60 Hz
2.7 A
1.4 A
2 G Earth ground N/A N/A
3 N AC input (neutral) 120/240 VAC,
50/60 Hz
2.7 A
1.4 A
4 X I/O 6* Flexput™ Circuit 24 VDC 3.0 A Notification Circuits
5O 100 mA Initiation Circuits
6 X I/O 5* Flexput™ Circuit 24 VDC 3.0 A Notification Circuits
7 O 100 mA Initiation Circuits
8 X I/O 4* Flexput™ Circuit 24 VDC 3.0 A Notification Circuits
9O 100 mA
Initiation Circuits
10 X I/O 3* Flexput™ Circuit 24 VDC 3.0 A Notification Circuits
11 O 100 mA Initiation Circuits
12 X I/O 2* Flexput™ Circuit 24 VDC 3.0 A Notification Circuits
13 O 100 mA Initiation Circuits
